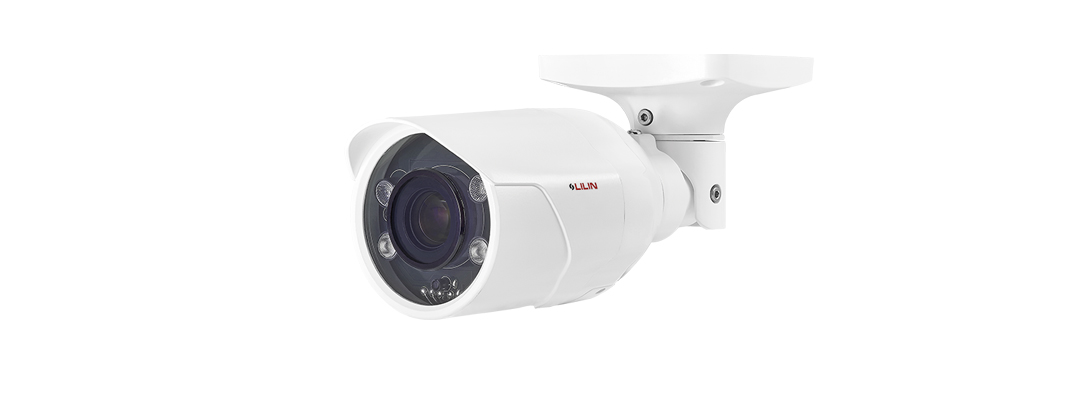

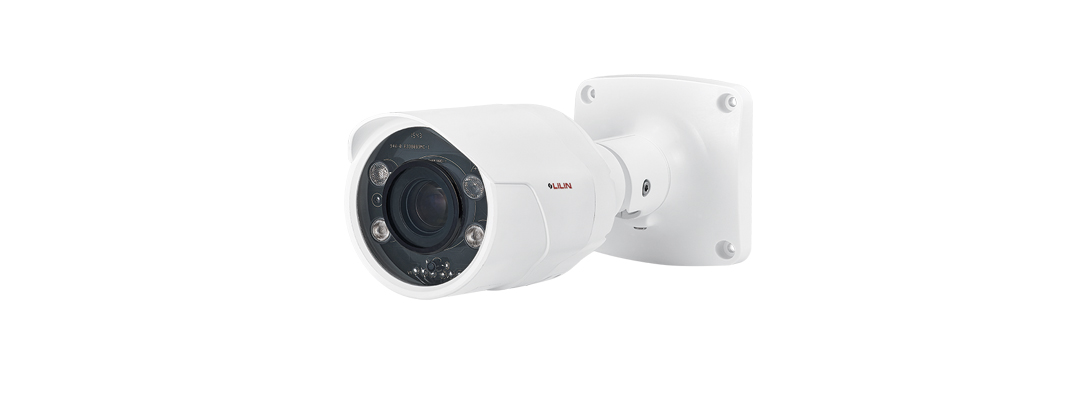

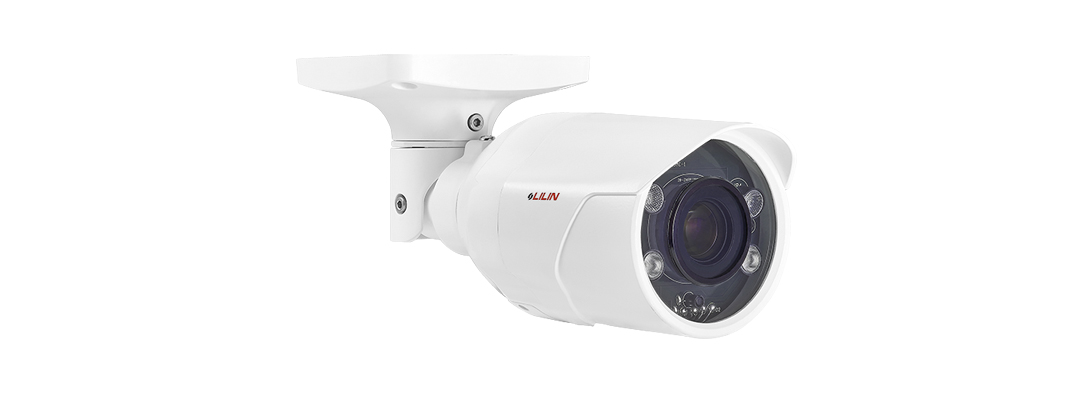

1080P Day & Night Auto Focus IR IP Bullet Camera

Model:ZSR8122EX2

  • Full HD 2 megapixel CMOS image sensor
  • 1080P True H.264 AVC High Profile video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • Auto focus with zoom / focus motorized lens
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • HDR function up to 100dB
  • Digital PTZ supported
  • IVS supported
  • Motion detection, Tampering detection, audio detection, tripwire, object counting, traffic light detection function
  • High efficiency IR LED, radiant distance up to 35M
  • Day & Night (IR cut removable)
  • 2-way audio supported
  • Digital I/O : 1 in, 1 out ONVIF Profile S supported
  • 60 fps @ 1080P resolution
  • IP68 rain and dust resistant

An Ideal camera for low-light conditions

ZSR8122EX2 is an Auto Focus IR IP Bullet Camera that provides Full HD resolution at 60fps. It is an ideal camera for difficult lighting conditions. In the combination of WDR, 3D noise reduction, intelligent image signal processing, and the built-in Sense-up+ technology, the camera delivers outstanding image under extreme low-light conditions without any motion blur. This camera is also designed to prevent from rain and dust with its IP68-rated housing, ensuring operation under various demanding weather conditions. ZSR8122EX2 is an excellent choice that feeds your demand in multiple applications.

Model

ZSR8122EX2

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Installation Guide Installation Guide ZSR8122EX2 2020-06-24 1,832KB
Manual Ultra, ZH, S and ZS Series User Manual 2020-05-05 3,387KB
Firmware Firmware Version : 2.7.92.8848 , For Model: SG1122E, SR7424EX3.6/SR7428EX3.6, SR7022E4/SR7022E6, SR8222E4, SR2922EX3, SR6422EX3, SD2222E2/SD2222E4, ZSR8122EX2, ZSR8122EX3 2020-04-15 36,138KB
Catalogue Catalogue ZSR8122EX2 2020-02-19 1,518KB
A&E A&E ZSR8122EX2 2019-11-11 170KB
Manual Ultra, S and ZS series IVS Camera User Manual 2019-02-11 2,442KB
