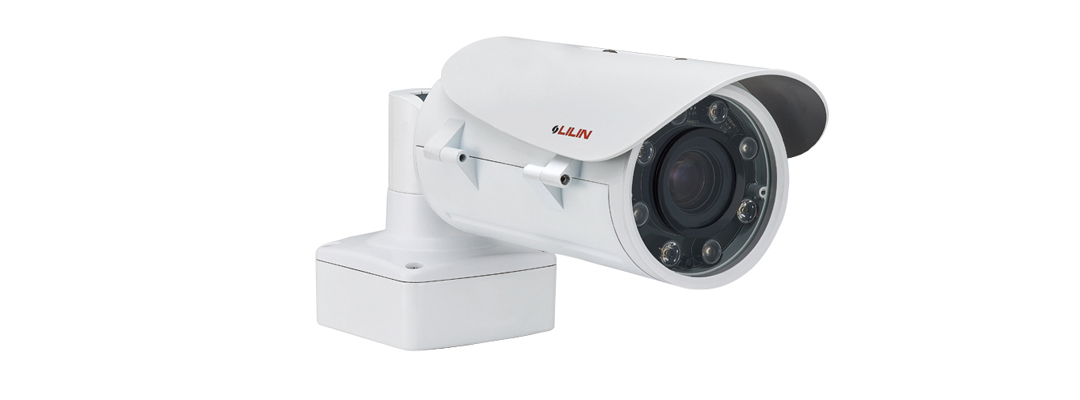

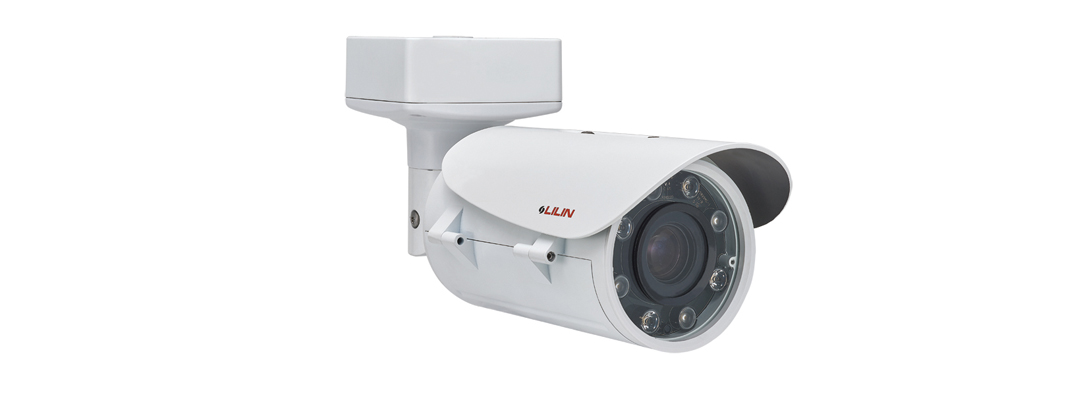

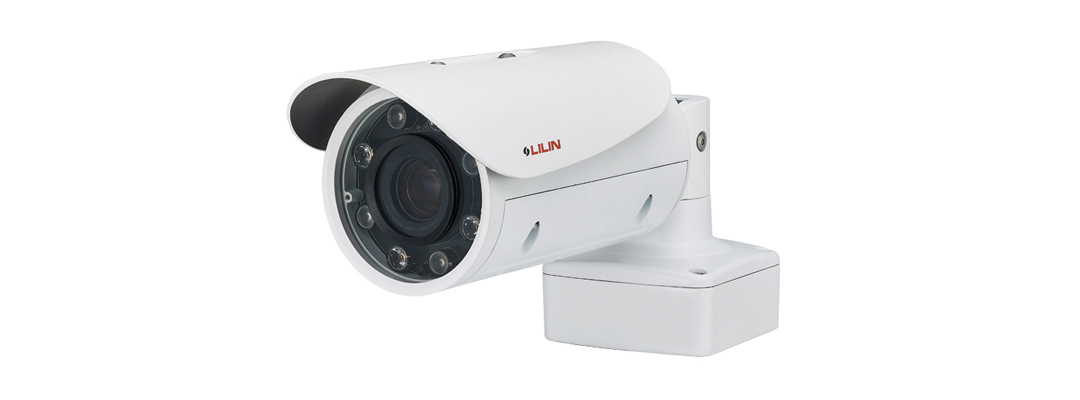

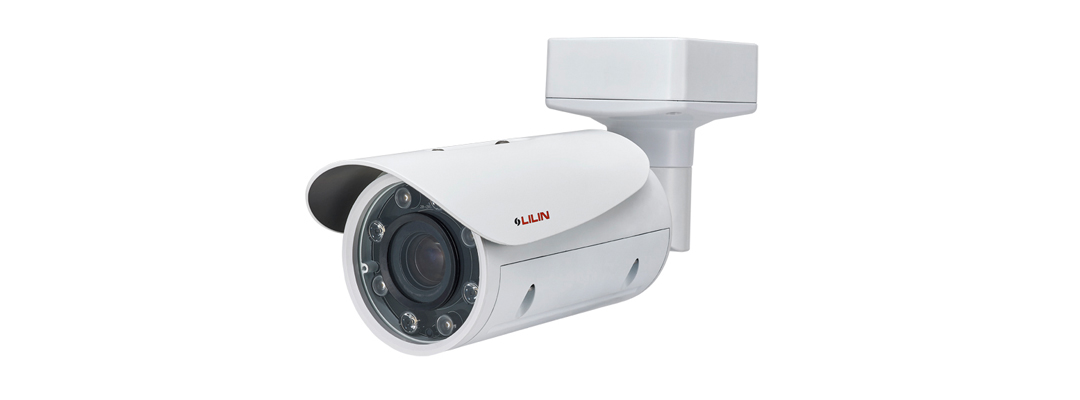

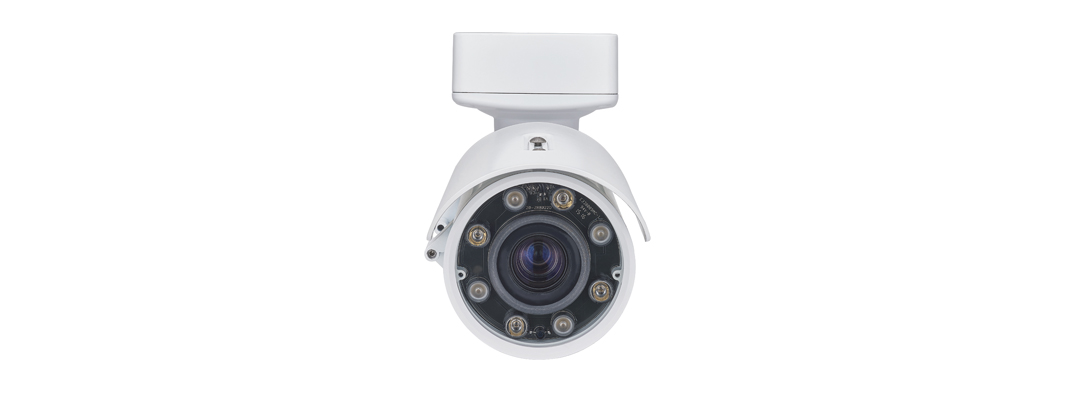

1080P Day & Night Vari-Focal IR IP Bullet Camera
Model：ZR8022EX10 (Discontinued)
- Full HD 2 megapixel CMOS image sensor
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- IVS supported
- High efficiency IR LED, radiant distance up to 60m
- Powerful Auto Focus feature
- IP67 rain and dust resistant
Discontinued date
- 2019.10.17
Alternative models
- Z2R8022EX25
ZR8022 is 2-megapixel IP camera integrates 10x or 20x optical Auto Focus lens to focus or zoom adjustments by clicking on browsers, waterproof IP67 rated, progressive scan CMOS sensor, Wide Dynamic Range, and easy installation with 802.3at PoE+ or DC12V adapter.
Model
ZR8022EX10 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue ZR8022 | 2020-02-20 | 1,179KB | |
| A&E | ZR8022EX10 A&E | 2019-11-11 | 165KB | |
| Installation Guide | ZR8022EX Installation Guide | 2016-03-22 | 1,171KB |
-
