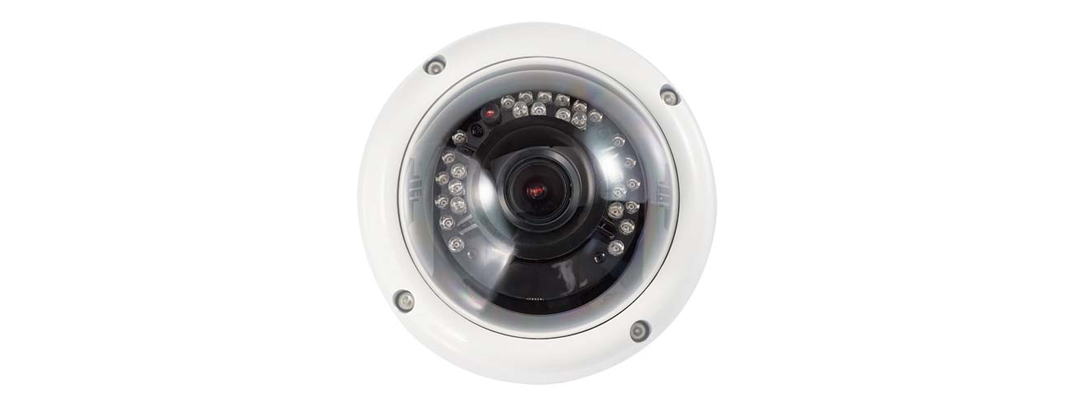

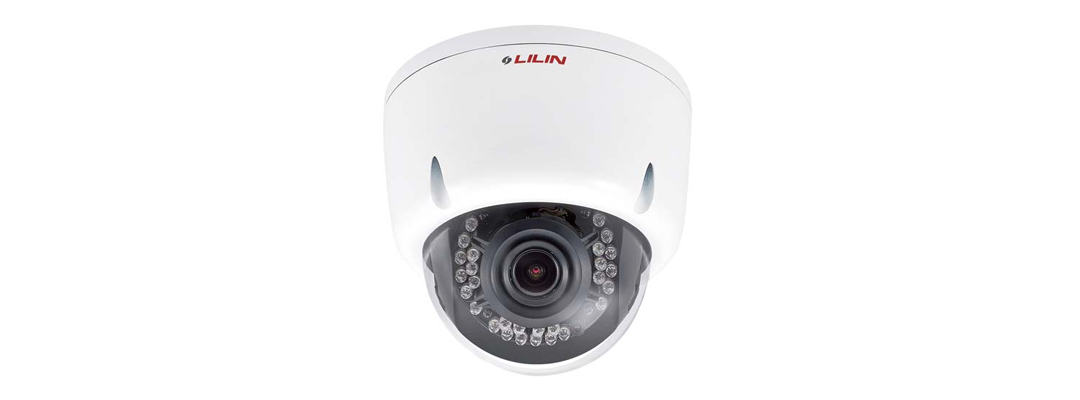

Day & Night 1080P HD Auto Focus Dome IR IP Camera
Model:ZR6122EX3 (Discontinued)
- Full HD 2 megapixel CMOS image sensor
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Face / Tampering / Audio / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 25m
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- ONVIF supported
Discontinued date
- 2018.09.16
Alternative models
- ZMR6422AX-P
Day & Night 1080P HD Auto Focus Vandal Resistant Dome IR IP Camera ZR6122X is IP67-rated housing protects the camera body against rain and dust, and ensures operation under extreme weather condition. ZR6122X Auto Focus dome is sufficiently robust to meet the IK-10 certification requirement has the ability to withstand external mechanical impacts. The ZR6122 comes with a removable IR-cut filter, which enable the camera to provide black/white video in dark conditions. Designed in a mini glassy dome form factor and offering flexible Auto Focus installation feature, ZR6122X fits into a range of environments such as retail, home, office, and hotel security.
With the built-in IEEE 802.3af compliant PoE for quick installation, IR illuminator technology helps avoiding overexposure under low light condition, and only ~145mm diameter in size, ZR6122X Auto Focus Vandal Resistant Dome IR IP camera is able to meet a wide variety of needs for indoor and outdoor surveillance. Featuring Full HD resolution with superb image quality up to 30FPS, are equipped with built-in intelligent features such as face, tampering, motion detection alarm function, WDR enhancement for un-paralleled visibility in high contrast environments, Automatic Gain Control (AGC) form of amplification to produce usable images, and securing high video quality in providing accurate identification around the clock.
Model
ZR6122EX3 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Catalogue | Catalogue-ZR6122X | 2017-11-10 | 755KB | |
Firmware | Firmware 1.4.94 , ZD2322, ZD6122, ZR2322, ZR6122, ZR7424/8 | 2017-02-15 | 21,420KB | |
Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB | |
A&E | ZR6122X A&E | 2014-10-08 | 215KB | |
Installation Guide | Installation Guide IPR6132ESX / IPD6132ESX / IPR6122ESX / IPD6122ESX / LR6122EX / LD6122EX / ZR6122EX / ZD6122EX | 2014-07-29 | 2,202KB | |
Firmware | Firmware 1.0.60 , ZD2322, ZD6122, ZR2322, ZR6122, ZR7424/8 | 2014-02-27 | 19,273KB | |
Image | High-Resolution Image | 2,074KB |
-
