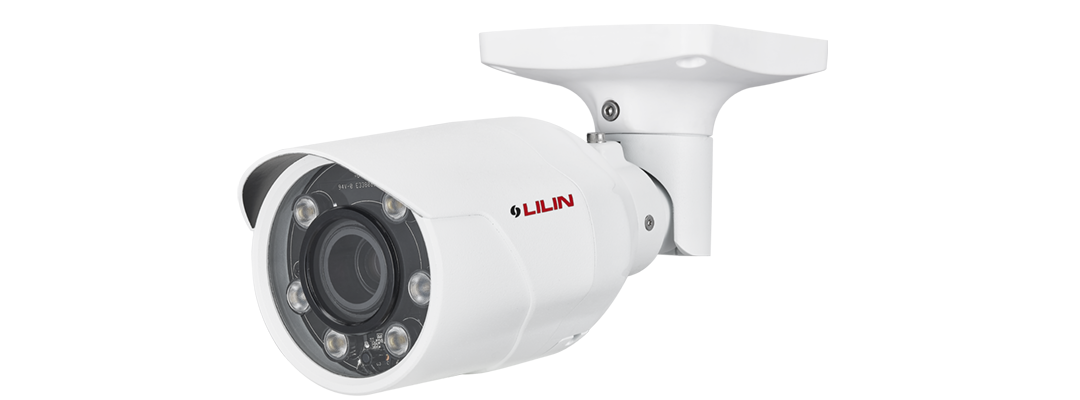

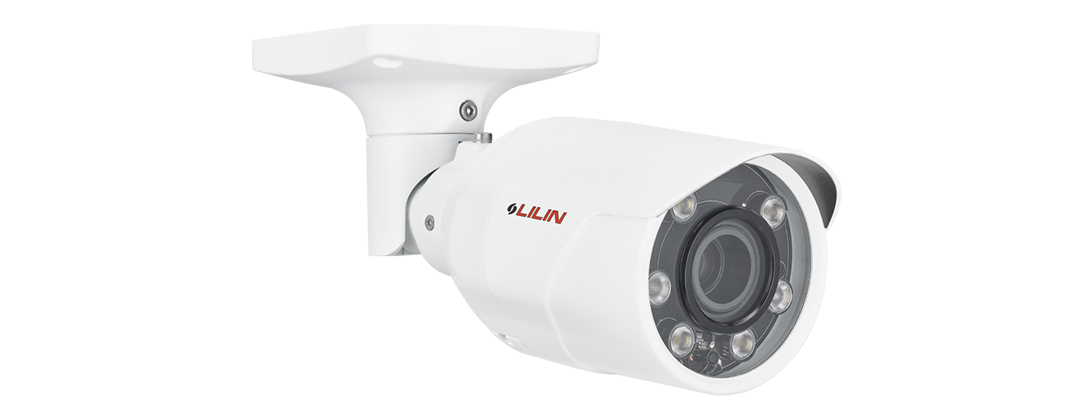

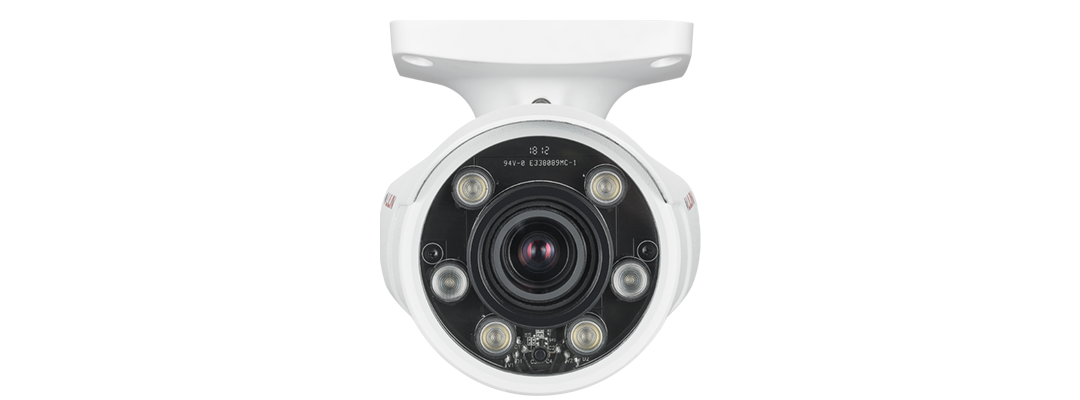

1080P Day & Night Auto Focus IR IP Bullet Camera

Model:ZMR8122X2-P

  • Full HD 2.0 megapixel CMOS image sensor
  • 1080P True H.264 AVC High Profile video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • Auto focus with zoom / focus motorized lens
  • P-IRIS supported
  • Smart H.264 supported
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • HDR function up to 100dB
  • Digital PTZ & ROI supported
  • IVS supported
  • Cable managed housing and bracket
  • Tampering / Motion detection alarm function
  • High efficiency IR LED, radiant distance up to 40m
  • Day & Night (IR cut removable)
  • 2-way audio supported
  • Digital I/O: 1 in, 1 out
  • ONVIF Profile S supported

ZMR8122X2-P is a day & night 2MP auto-focused vandal resistant bullet IR IP camera designed into a range of environments such as retail, home, office, residential premises and hotel security.

It features a full HD 2.0 megapixel CMOS image sensor. The camera has built-in IR-cut filter which allows clearer images at day and night operations even in the low lux condition. The high efficiency IR LED radiant distance can extend up to 40m. Its auto focus feature allows users to automatically focus the camera from a distant location. With motorized lens, all you need to do with zoom/focus adjustments is simply a click on browsers.

It also has P-Iris which is very good to have larger depth of field, so no matter how far and how close the objects are; ZMR8122X2-P still provides clear images with correct focus. Supported with privacy mask, 3D noise reduction, 2D WDR function, and HDR function up to 100dB, ZMR8122X2-P ensures to deliver a clear and detailed image to the users.

Model

ZMR8122X2-P

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Installation Guide Installation Guide ZMR8122X2-P 2020-10-13 1,832KB
Firmware Firmware Version : 4.2.92.9220 , For Model:ZMR8422X, MR6522E2, ZMR6522, ZMR7422X P, ZMR7422X2 P, ZMR6422AX P, ZMR8122X P, ZMR8122X2 P, ZMR7722X 2020-09-24 19,434KB
Manual M and ZMR Series User Manual 2020-05-05 3,348KB
Catalogue Catalogue ZMR8122X2-P 2019-11-11 1,454KB
A&E A&E ZMR8122X2-P 2019-11-11 161KB
Application Note How to upgrade IP camera to P2P connection for LILIN camera 2019-02-26 566KB
