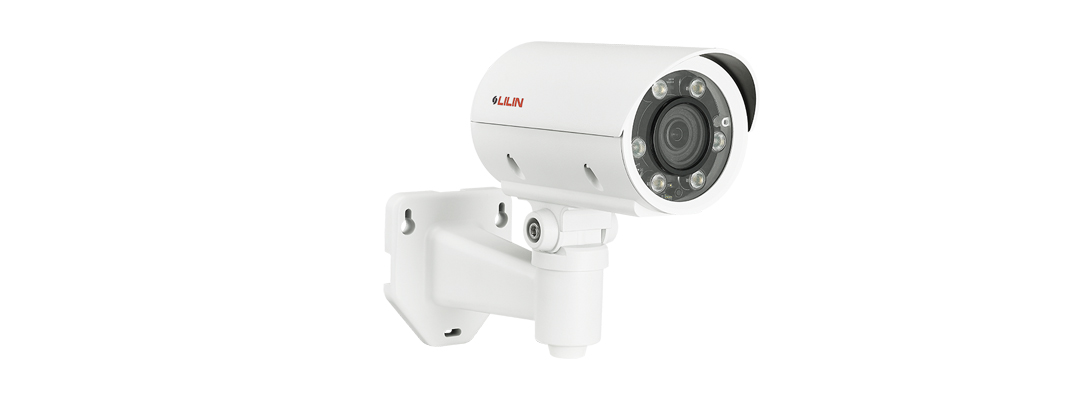

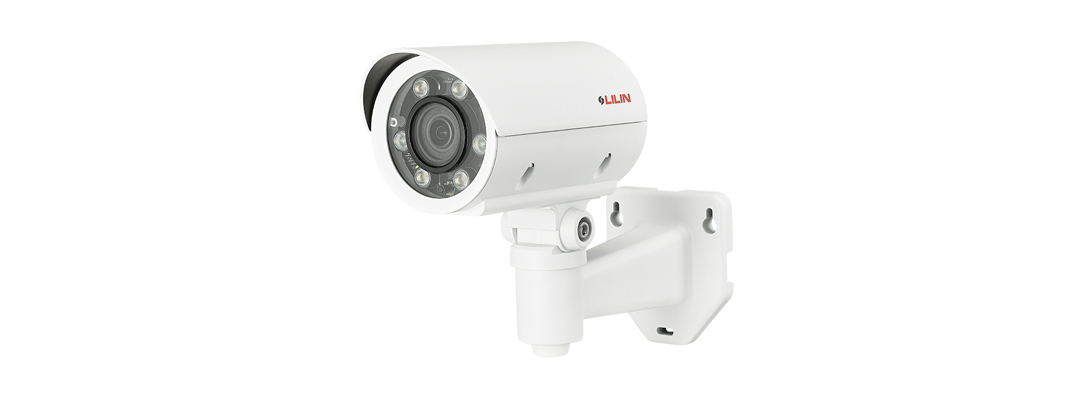

4MP Day & Night Auto Focus IR Vandal Resistant IP Bullet Camera
Model:ZMR7742X
- Full HD 4.0 megapixel CMOS image sensor
- 4MP True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- Smart H.264 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- Digital PTZ supported
- IVS supported
- Tampering / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 40m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
- 2-way audio supported
- Digital I/O : 1 in, 1 out
As with all Z series Auto Focus cameras, the Day & Night 4MP HD AF Bullet IR IP Camera ZMR7742X incorporates Sense up+, a unique technology that successfully delivers stunning video in low-light conditions. Utilizing intelligent image signal processing, AGC control, and 3D Noise Reduction, this model successfully delivers the ultimate low-light image without motion blur. Offering flexible Auto Focus installation feature, ZMR7742X fits into a range of environments such as retail, home, office, and hotel security. The ZMR7742X is capable of producing four independent video streams, different streams can be set for different applications, depending on the individual user requirements. The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions.
Model
ZMR7742X
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Installation Guide | Installation Guide ZMR7742X | 2020-10-15 | 3,219KB | |
Firmware | Firmware Version : 5.2.92.9220 , For Model:ZMR6442AX-P, ZMR6542X, ZMR7442X-P, ZMR7442X2-P, ZMR8142-P, ZMR7742X, ZMR8442X | 2020-09-24 | 19,314KB | |
Manual | M and ZMR Series User Manual | 2020-05-05 | 3,348KB | |
Application Note | How to upgrade IP camera to P2P connection for LILIN camera | 2019-02-26 | 566KB | |
Catalogue | Catalogue ZMR7742X | 2018-07-26 | 1,416KB | |
A&E | A&E ZMR7742X | 2018-07-24 | 316KB |
-
