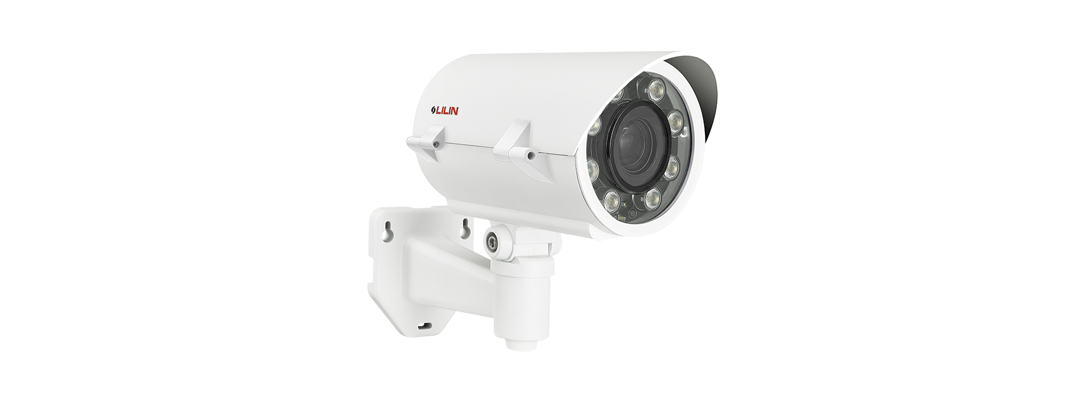

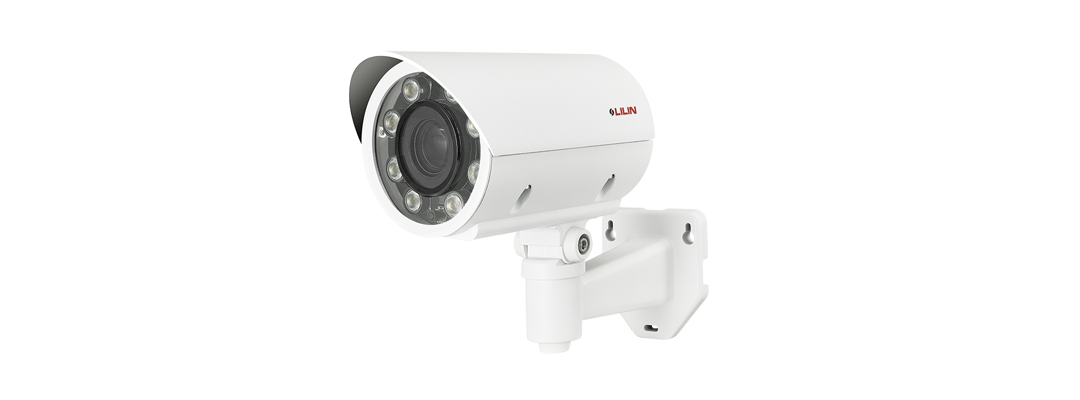

4MP Day & Night Auto Focus IR IP Bullet Camera
Model:ZMR7442X2-P
- Full HD 4.0 megapixel CMOS image sensor
- 4MP True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- P-iris supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- Digital PTZ supported
- IVS supported
- Tampering / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 50m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
- 2-way audio supported
- Digital I/O : 1 in, 1 out
As with all Z series Auto Focus cameras, the Day & Night 4MP HD AF Bullet IR IP Camera ZMR7442X2-P incorporates Sense up+, a unique technology that successfully delivers stunning video in low-light conditions. Utilizing intelligent image signal processing, AGC control, and 3D Noise Reduction, this model successfully delivers the ultimate low-light image without motion blur. Offering flexible Auto Focus installation feature, ZMR7442X2-P fits into a range of environments such as retail, home, office, and hotel security. The ZMR7442X2-P is capable of producing four independent video streams, different streams can be set for different applications, depending on the individual user requirements. The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions.
Model
ZMR7442X2-P
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Installation Guide | Installation Guide ZMR7442X2-P | 2020-10-15 | 3,894KB | |
Firmware | Firmware Version : 5.2.92.9220 , For Model:ZMR6442AX-P, ZMR6542X, ZMR7442X-P, ZMR7442X2-P, ZMR8142-P, ZMR7742X, ZMR8442X | 2020-09-24 | 19,314KB | |
Manual | M and ZMR Series User Manual | 2020-05-05 | 3,348KB | |
Application Note | How to upgrade IP camera to P2P connection for LILIN camera | 2019-02-26 | 566KB | |
A&E | A&E ZMR7442X2-P | 2018-07-24 | 316KB | |
Catalogue | Catalogue ZMR7442X2-P | 2018-06-01 | 1,616KB |
-
