1080P Day & Night Auto Focus IR Vandal Resistant IP Dome Camera
Model:ZMR6522X
- Full HD 2.0 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- Smart H.264 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- Digital PTZ supported
- IVS supported
- Tampering / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- ONVIF Profile S supported

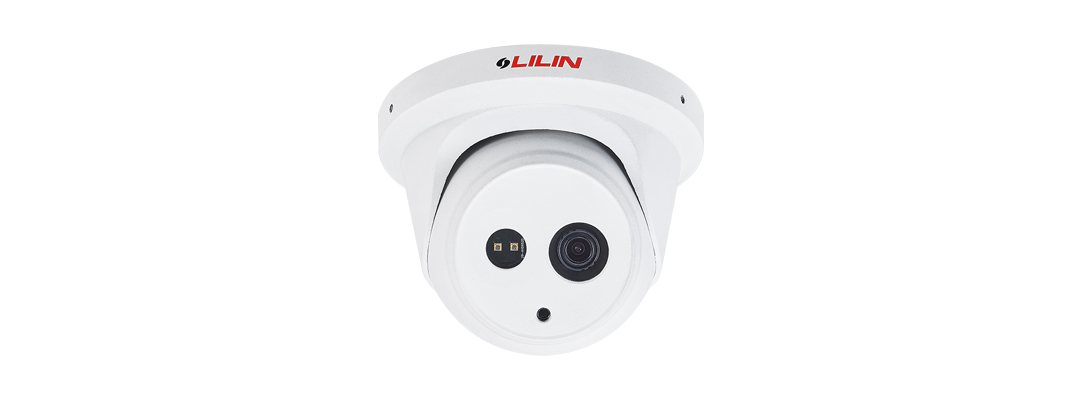

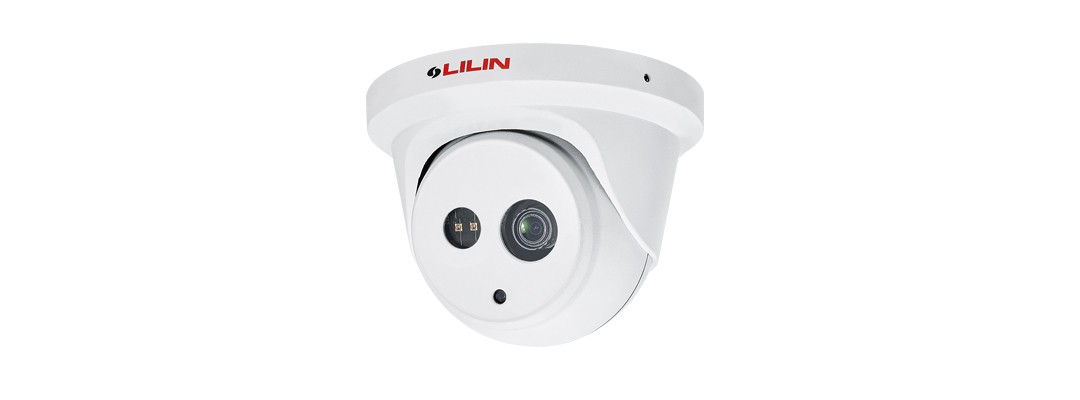

ZMR6522X is a day & night 2MP auto-focused Dome IR IP camera designed for a range of environments demanding high security such as critical infrastructure, factory, retail, transportation, residential and hotel.
It features a full HD 2.0 megapixel CMOS image sensor. The camera has built-in IR-cut filter which allows clearer images at day and night operations even in the low lux condition. The high efficiency IR LED radiant distance can extend up to 30m. Its auto focus feature allows users to automatically focus the camera from a distant location. Equipped with motorized lens, users can adjust the zoom/focus function through a click on browsers. It supports IVS function, embedded with tampering/ motion detection alarm function.
Supported with privacy mask, 3D noise reduction, 2D WDR function, and HDR function up to 100dB, ZMR6522X ensures to deliver a clear and detailed image to the users.
Model
ZMR6522X
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Installation Guide | Installation Guide ZMR6522X | 2020-10-12 | 2,197KB | |
Firmware | Firmware Version : 4.2.92.9220 , For Model:ZMR8422X, MR6522E2, ZMR6522, ZMR7422X P, ZMR7422X2 P, ZMR6422AX P, ZMR8122X P, ZMR8122X2 P, ZMR7722X | 2020-09-24 | 19,434KB | |
Manual | M and ZMR Series User Manual | 2020-05-05 | 3,348KB | |
Catalogue | Catalogue ZMR6522X | 2019-05-02 | 1,582KB | |
A&E | A&E ZMR6522X | 2019-05-02 | 316KB | |
Application Note | How to upgrade IP camera to P2P connection for LILIN camera | 2019-02-26 | 566KB |
