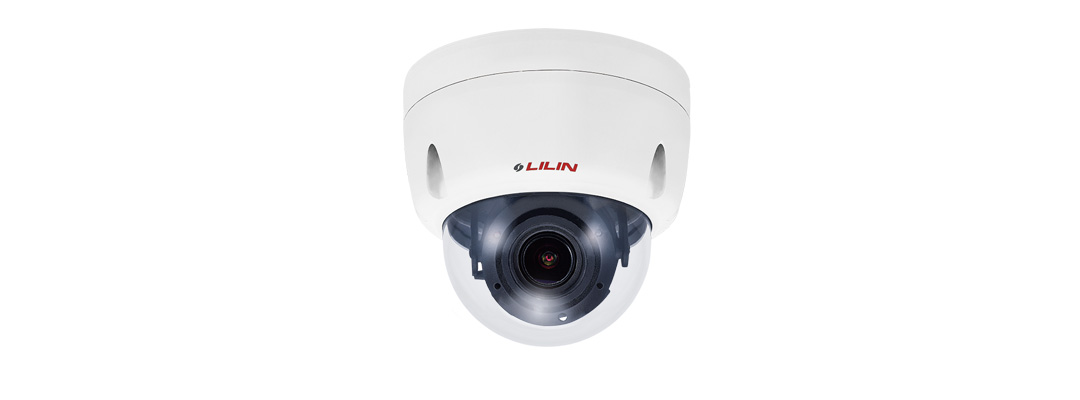

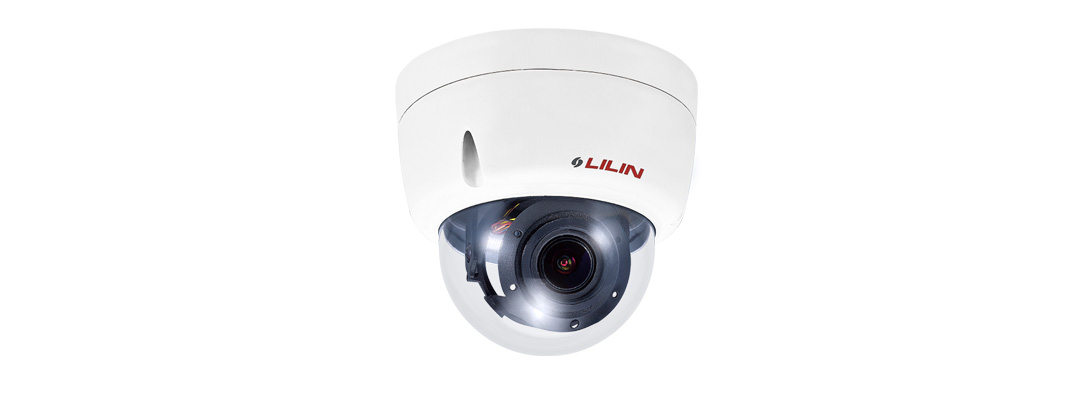

4K Day & Night Auto Focus IR Vandal Resistant IP Dome Camera
Model：ZHR6482EX2
- 4K Ultra High Definition resolution
- 4K True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- Digital PTZ supported
- IVS supported
- Motion / Tamper / Audio / Alarm / Network lost detection function
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- Impact Resistant Polycarbonate Dome Cover
- 3-Axis construction
- ONVIF Profile S supported
- IP67 rain and dust resistant
- Vandal resistant approve
ZHR6482EX2 is 4K Ultra HD IR IP outdoor dome camera integrates Auto Focus lens to focus or zoom adjustments by clicking on browsers, waterproof IP67 rated and Wide Dynamic Range. The camera is featuring 30 frames per second and 3,840-by-2,160-pixel picture. As the demand of super resolution in video surveillance is on the rise, 4K is the stepping stone of prevalent 1080P Full HD. LILIN’s new 4K Ultra HD network camera, ZHR6482EX2, enhances HD images by providing four times HD picture with beautifully natural detail and astonishing saturated colors.
Model
ZHR6482EX2
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation Guide ZHR6482EX2 | 2020-06-23 | 2,997KB | |
| Manual | Ultra, ZH, S and ZS Series User Manual | 2020-05-05 | 3,387KB | |
| Firmware | Firmware Version : 2.7.92.8848 , For Model：UFG1122E, UHG1182E, ZFR6422, ZFR8122EX3EX2, ZHR6482EX2, ZHR8182EX2, UHR6582E4 | 2020-04-15 | 36,120KB | |
| Catalogue | Catalogue ZHR6482EX2 | 2019-05-02 | 2,130KB | |
| A&E | A&E ZHR6482EX2 | 2019-05-02 | 338KB |
