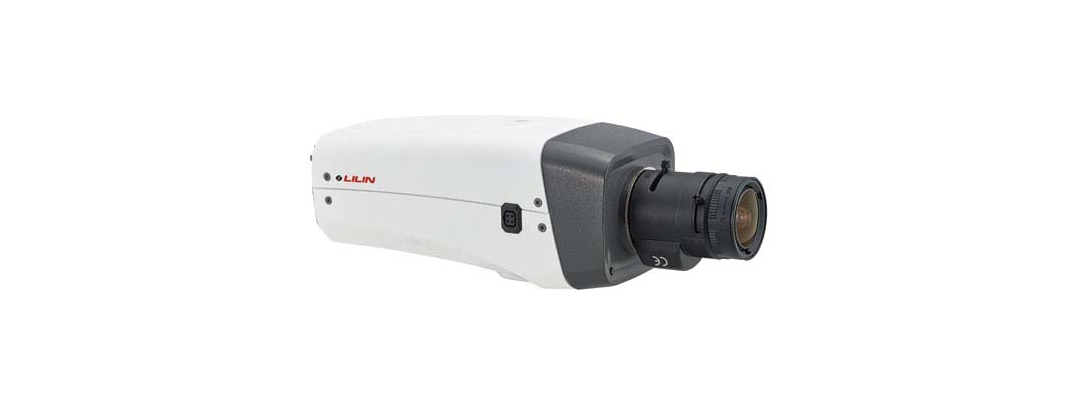

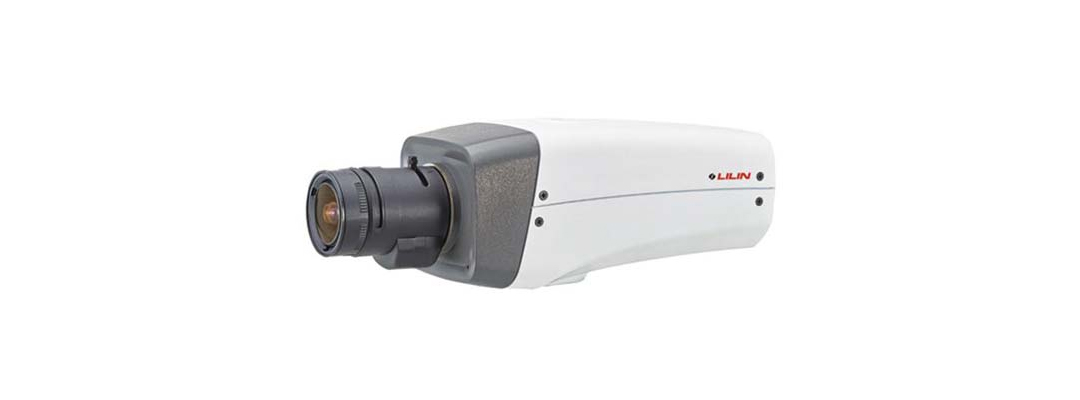

3MP Day & Night Vari-Focal IP Box Camera

Model:ZG1232EX3


  • Full HD 3.27 megapixel CMOS image sensor
  • True H.264 AVC/MPEG-4 part 10 real-time video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • Auto Back Focus function
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • Digital PTZ supported
  • Face / Tampering / Audio / Motion detection alarm function
  • Day & Night (IR cut removable)
  • Built-in highly sensitive microphone
  • 2-way audio supported
  • Digital I/O : 1 in, 1 out
  • ONVIF Profile S supported
  • RS-485 supported

Auto Focus IP camera ZG1232X offers Auto Back Focus function, with the built-in IEEE 802.3af compliant PoE and only ~150mm diameter in size, ZG1232X Auto Focus IP camera is able to meet a wide variety of needs for indoor and outdoor surveillance. Featuring Full HD resolution with superb image quality up to 30FPS frame rate, are equipped with a removable IR-cut filter, built-in Intelligent Video Surveillance features such as face, tampering, audio, motion detection alarm function, 3D Noise Reduction, WDR enhancement for un-paralleled visibility in high contrast environments, Automatic Gain Control (AGC) form of amplification to produce usable images, and securing high video quality in providing accurate identification around the clock.

Model

ZG1232EX3

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
