• Full HD 2 megapixel CMOS image sensor
• True H.264 AVC/MPEG-4 part 10 real-time video compression
• H.264 and Motion JPEG multi-profile video streaming
• Auto focus with zoom / focus motorized lens
• 3D noise reduction (MCTF)
• 2D WDR function
• Digital PTZ supported
• Face / Tampering / Audio / Motion detection alarm function
• Ceiling mount and Embedded mount installation
• Day & Night (IR cut removable)
• 2-way audio supported
• Digital I/O : 1 in, 1 out
• ONVIF supported

Discontinued date

• 2018.09.16

Alternative models

• ZMR6422AX-P

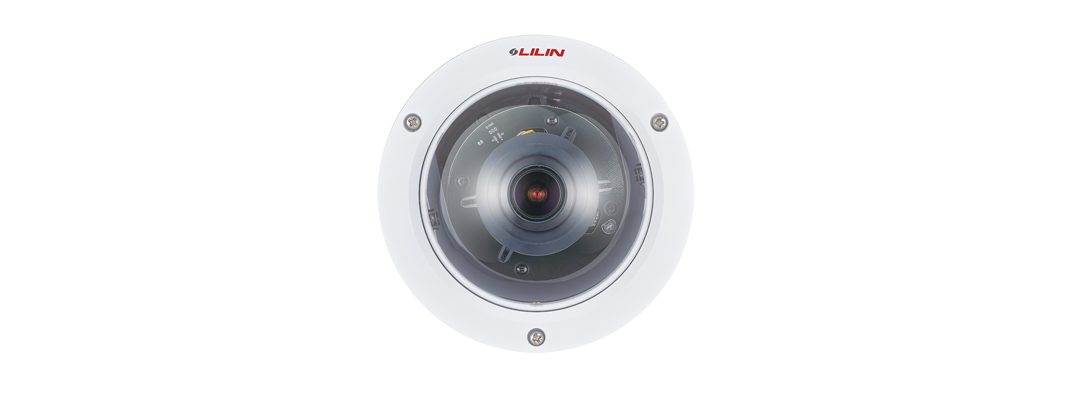

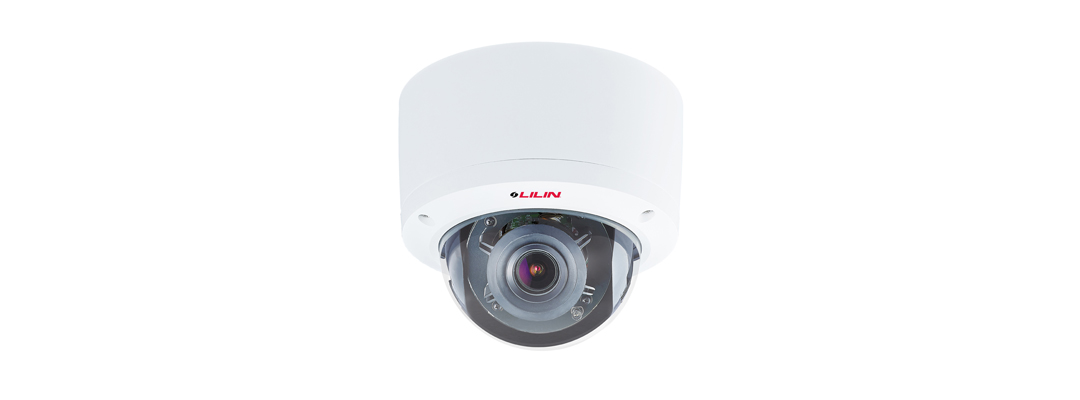

ZD2322X is 1080P 2-megapixel CMOS image sensor, easy-to-install Auto Focus fixed dome, featuring embedded mount as well as ceiling mount installation in response to diverse array of environments for total situational awareness. Also, ZD2322X is featuring Full HD resolution with superb image quality up to 30FPS, are equipped with a removable IR-cut filter, built-in Intelligent Video Surveillance features such as face, tampering, audio, motion detection alarm function, WDR enhancement for un-paralleled visibility in high contrast environments, Automatic Gain Control (AGC) form of amplification to produce usable images, and securing high video quality in providing accurate identification around the clock.

With the built-in IEEE 802.3af compliant PoE for quick installation, IR illuminator technology helps avoiding overexposure under low light condition, and only ~150mm diameter in size, LILIN ZD2322X Auto Focus network camera is designed in a mini glassy dome form factor and offering flexible Auto Focus installation features.
