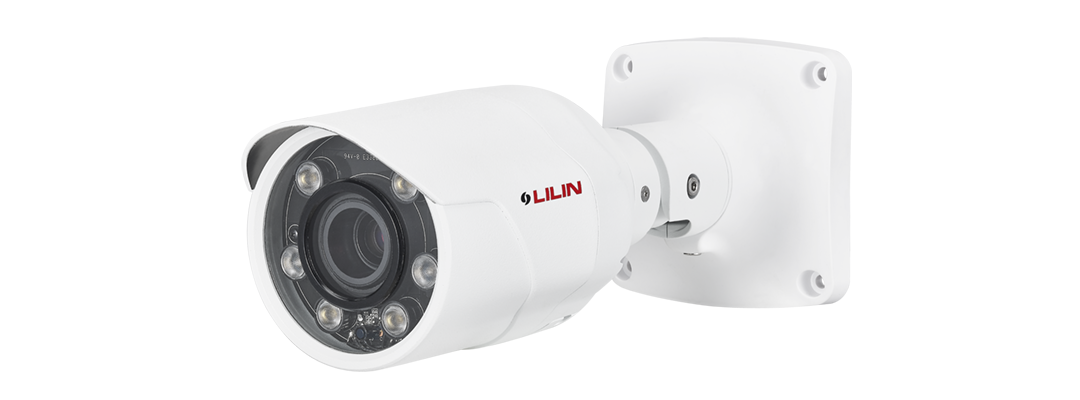

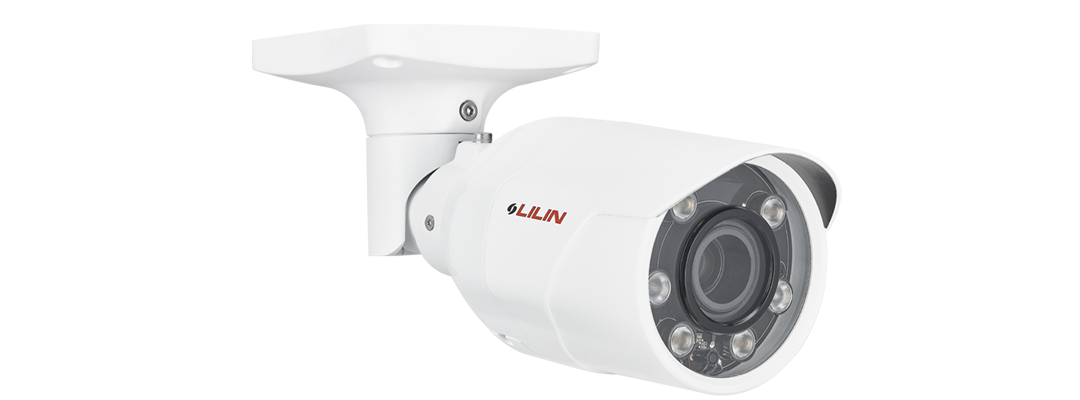

Starvis 4K P-Iris Auto Focus IR AI Smart IP Camera
Model：Z7R8182X2-P (Coming soon)
- Ultra HD 8M megapixel CMOS image sensor
- 8MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus with zoom / focus motorized lens
- P-IRIS supported
- 3D noise reduction (MCTF)
- HDR function up to 120dB
- Digital PTZ supported
- IVS / AI supported (need purchase license)
- Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata
- SMART event
- High efficiency IR LED, radiant distance up to 40m
- Day & Night (IR cut removable
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- Cable managed housing and bracket
- ONVIF Profile S, Profile T and Profile G supported
- IP68 rain and dust resistant
- Vandal resistant approve IK10
AI Features
- 01AI：Area Violation Recognition
This system is designed for outdoor security defense. It can accurately detect an object when invades the security zone and triggered a security alarm, with left-right direction detection. It can recognize 6 FPS and detect 24 objects at the same time, with each object captured larger than 120x120 px. - 06AI：AIANPR
It manages to recognize car plates under 80km/h and supports up to 2000 whitelisted, 100 black listed, and 600 visitor's car plates. It can record up to 600 incidents and integrate with a third-party summon system.
Model
Z7R8182X2-P (Coming soon)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue Z7R8182X2-P | AI Edge IP Camera | 2021-12-01 | 6,672KB | |
| Manual | LILIN Aida Camera User Manual | 2021-11-30 | 7,219KB | |
| Installation Guide | Installation Guide IPC81 Series | 2021-11-12 | 1,832KB | |
| Firmware | Firmware Version：10.1.001.2953, For Model：Z7 Series Camera | 2021-09-29 | 44,759KB | |
| Catalogue | Catalogue Z7R8182X2 | 01AI Area Violation | 2021-09-29 | 3,332KB | |
| Catalogue | Catalogue Z7R8182X2-P | 06AI License plate Recognition | 2021-09-29 | 4,854KB | |
| Manual | P7/Z7 Series IP Camera User Manual | 2021-09-29 | 4,130KB | |
| Catalogue | Catalogue Z7R8182X2-P | 2021-09-10 | 1,459KB |
