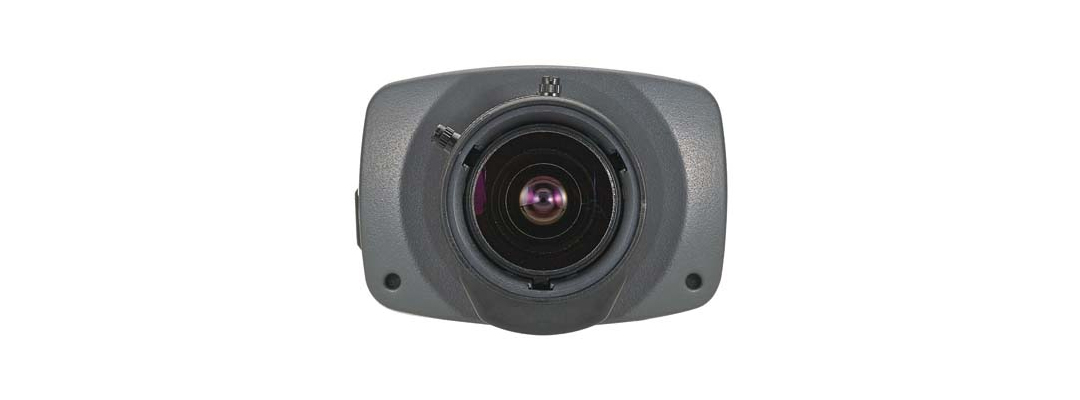

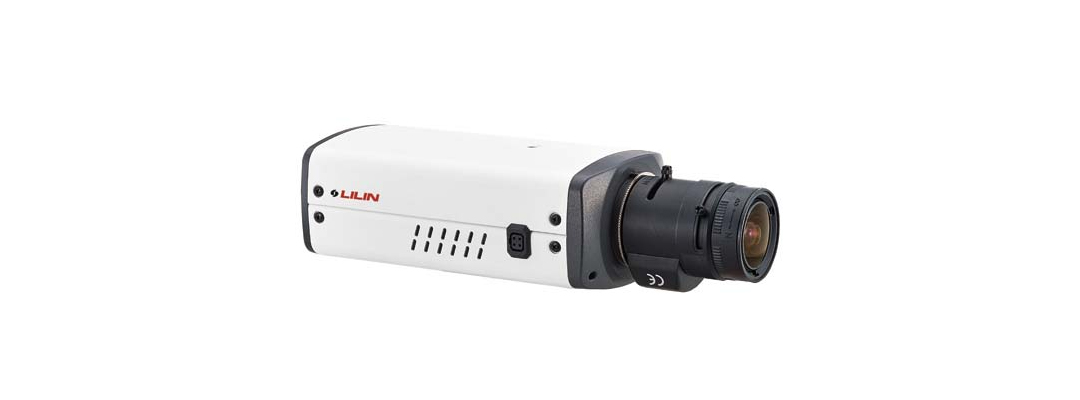

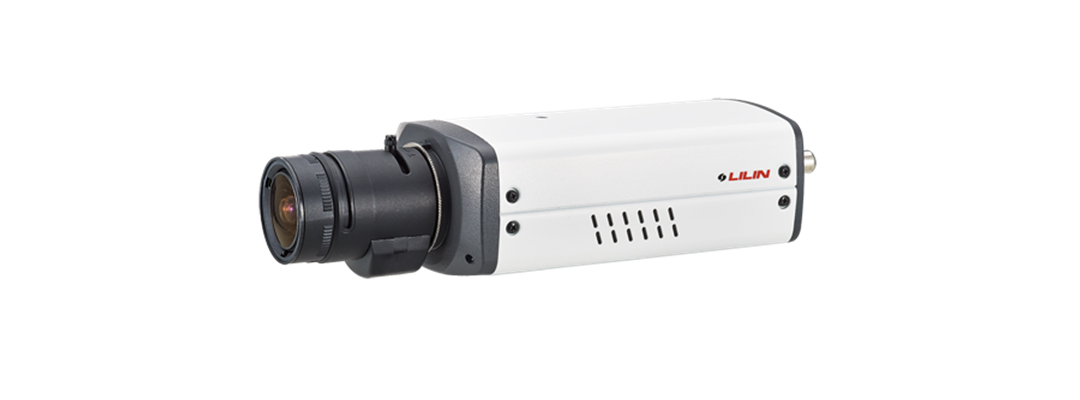

4K Day & Night IP Box Camera
Model：UHG1182E
- Ultra HD 12.0 megapixel CMOS image sensor
- 4K True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Tampering / Audio / Motion detection alarm function
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- ONVIF supported
- RS-485 supported
4K Ultra HD Camera – UHG1182, is featuring 30FPS and 3,840-by-2,160-pixel picture. As the demand of super resolution in video surveillance is on the rise, 4K is the stepping stone of prevalent 1080P Full HD. LILIN’s new 4K Ultra HD network camera, UHG1182, enhances HD images by providing four times HD picture with beautifully natural detail and astounding saturated colors. 4K Ultra HD video doubles the vertical resolution from 1080P to 2160P vertical lines of resolution. The UHG1182 is also available with ONVIF compliance.
Model
UHG1182E
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation Guide UHG1182E | 2020-06-29 | 7,647KB | |
| Manual | Ultra, ZH, S and ZS Series User Manual | 2020-05-05 | 3,387KB | |
| Firmware | Firmware Version : 2.7.92.8848 , For Model：UFG1122E, UHG1182E, ZFR6422, ZFR8122EX3EX2, ZHR6482EX2, ZHR8182EX2, UHR6582E4 | 2020-04-15 | 36,120KB | |
| Manual | Ultra, S and ZS series IVS Camera User Manual | 2019-02-11 | 2,442KB | |
| A&E | A&E UHG1182 | 2018-08-22 | 278KB | |
| Catalogue | Catalogue UHG1182 | 2017-11-13 | 1,110KB | |
| Image | High-Resolution Image | 2,616KB |
-
