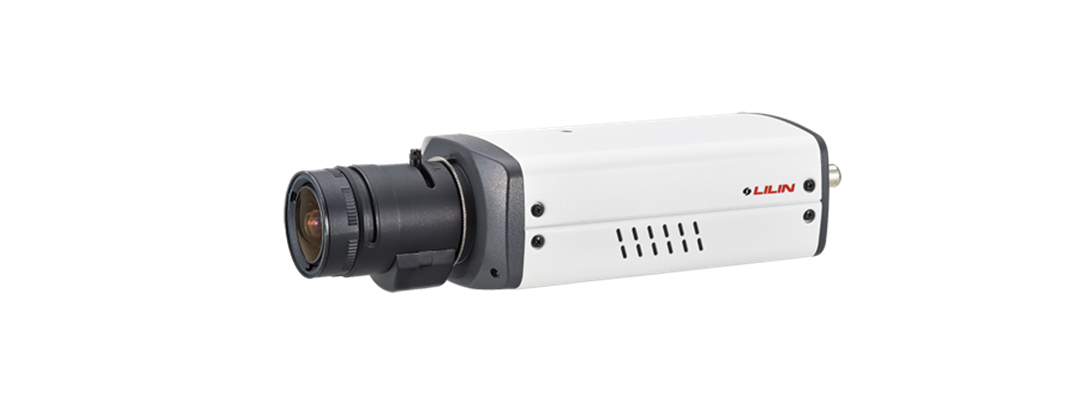

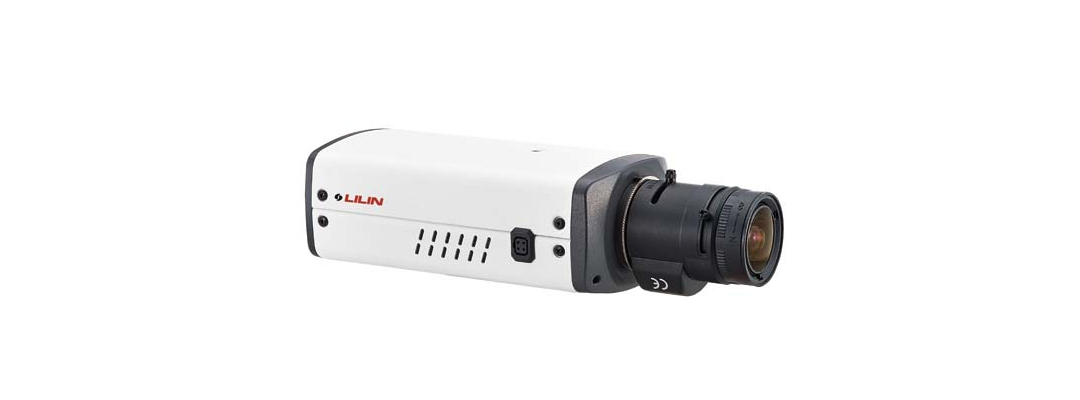

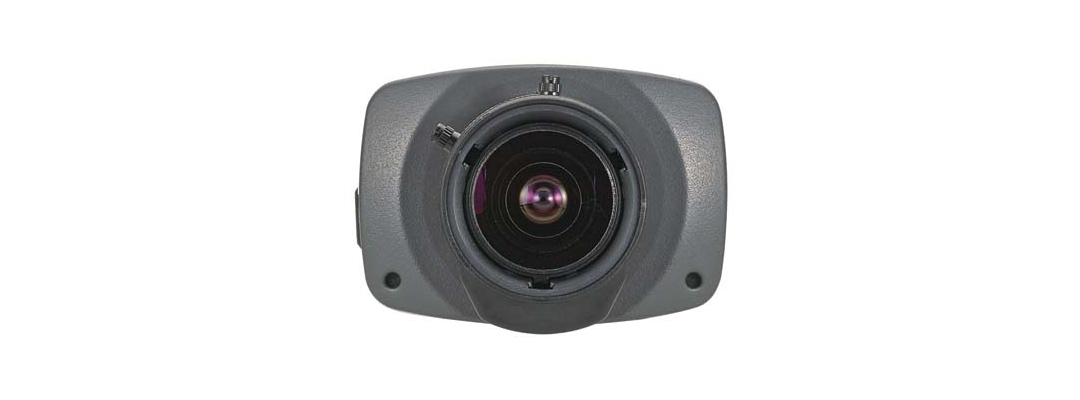

1080P Day & Night IP Box Camera
Model：UFG1122E (Limited stock)
- 2-megapixel resolution 1952 (H) x 1266 (V) pixels
- Micro SD/SDHC/SDXC card recording supported
- Infrared cut filter for day/night operations
Alternative models
- ZFR8122EX2/FR8122EX3/ZFR6422EX3
The award-winning Ultra series IP camera, UFG1122, can record 1080P footage at 120FPS, and is capable of seize every moment with the ability to capture all detail with crystal-clear resolution outputs. LILIN video surveillance pushes the limits with development of feasible 120FPS camera able to produce superb image quality. Featuring High Dynamic Range (HDR) mode and IR-cut filter, is able to put images together into one shot that brings out details in both the shadows and the highlights.
With real-time H.264 and Motion JPEG compression technology, extra smooth video quality with resolution up to 120FPS frame rate at 1080P is secured. UFG1122 model supports 120 high frame rate that ensures quick movements are captured in more details. The 120FPS frame rate allows the footage to be conformed to typical video playback speeds of 30FPS for 4X slow motion with a definite smooth effect.
Model
UFG1122E (Limited stock)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation Guide UFG1122E | 2020-06-29 | 7,647KB | |
| Manual | Ultra, ZH, S and ZS Series User Manual | 2020-05-05 | 3,387KB | |
| Firmware | Firmware Version : 2.7.92.8848 , For Model：UFG1122E, UHG1182E, ZFR6422, ZFR8122EX3EX2, ZHR6482EX2, ZHR8182EX2, UHR6582E4 | 2020-04-15 | 36,120KB | |
| Manual | Ultra, S and ZS series IVS Camera User Manual | 2019-02-11 | 2,442KB | |
| A&E | A&E UFG1122 | 2018-08-22 | 538KB | |
| Catalogue | Catalogue UFG1122 | 2018-01-16 | 1,540KB | |
| Image | High-Resolution Image | 2,616KB |
-
