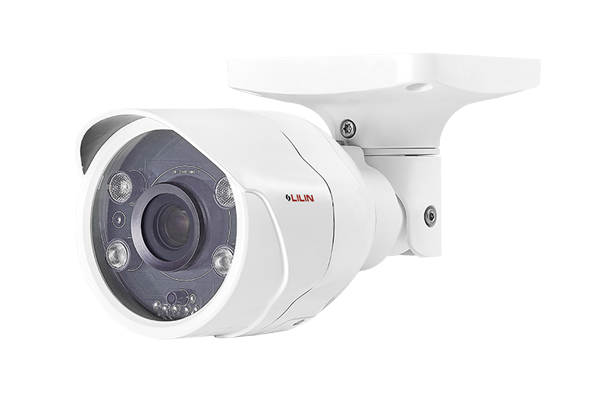

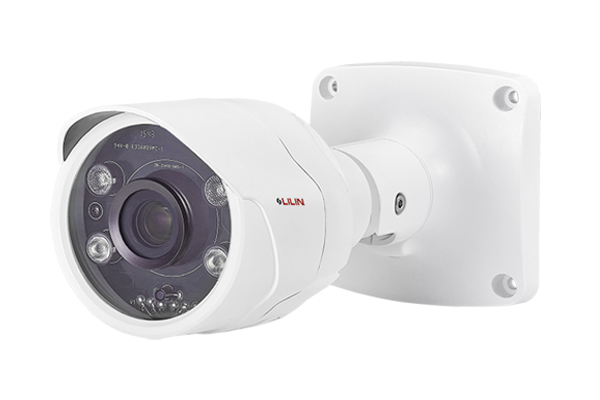

1080P Day & Night Fixed IR IP Bullet Camera
Model：SR8222E4 (Limited stock)
- Outdoor Bullet Camera
- IR cut filter for day/night operations
- IP66 rain and dust resistant
- 35-meter infrared night vision
- 1080p resolution @ 60fps
Alternative models
- ZSR8122EX3
SR8222 is an outdoor IP camera ideal for low-light conditions. In the combination of HDR, 3D noise reduction, intelligent image signal processing, and the built-in Sense-up+ technology, SR8222 delivers excellent image under low-light conditions without any motion blur. The embedded ROI function allows you to select the specific area based on your request, providing clear and detailed images which feed your needs. SR8222 provides outstanding performance under various difficult weather conditions for its IP66-rated house is designed to withstand rain and dust.
Model
SR8222E4 (Limited stock)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation Guide SR8222E4 | 2020-06-24 | 1,832KB | |
| Manual | Ultra, ZH, S and ZS Series User Manual | 2020-05-05 | 3,387KB | |
| Firmware | Firmware Version : 2.7.92.8848 , For Model： SG1122E, SR7424EX3.6/SR7428EX3.6, SR7022E4/SR7022E6, SR8222E4, SR2922EX3, SR6422EX3, SD2222E2/SD2222E4, ZSR8122EX2, ZSR8122EX3 | 2020-04-15 | 36,138KB | |
| Manual | Ultra, S and ZS series IVS Camera User Manual | 2019-02-11 | 2,442KB | |
| A&E | A&E SR8222E4 | 2018-08-24 | 525KB | |
| Catalogue | Catalogue SR8222 | 2017-11-09 | 2,058KB |
