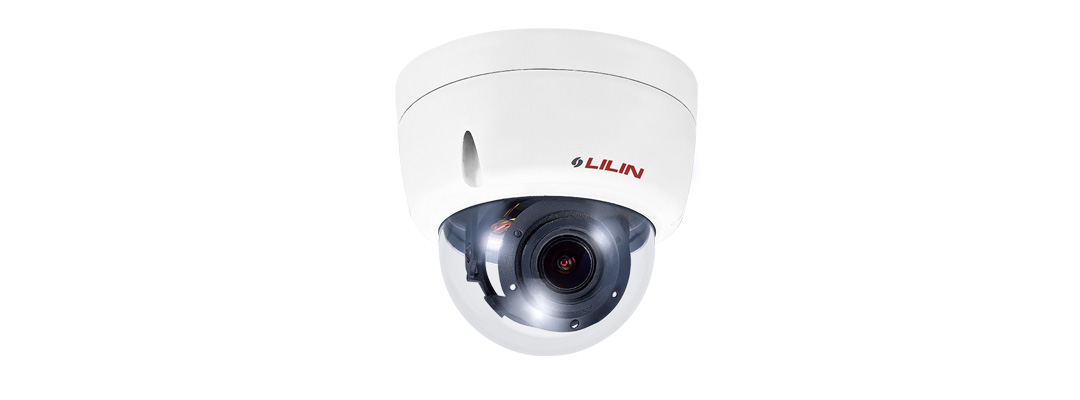

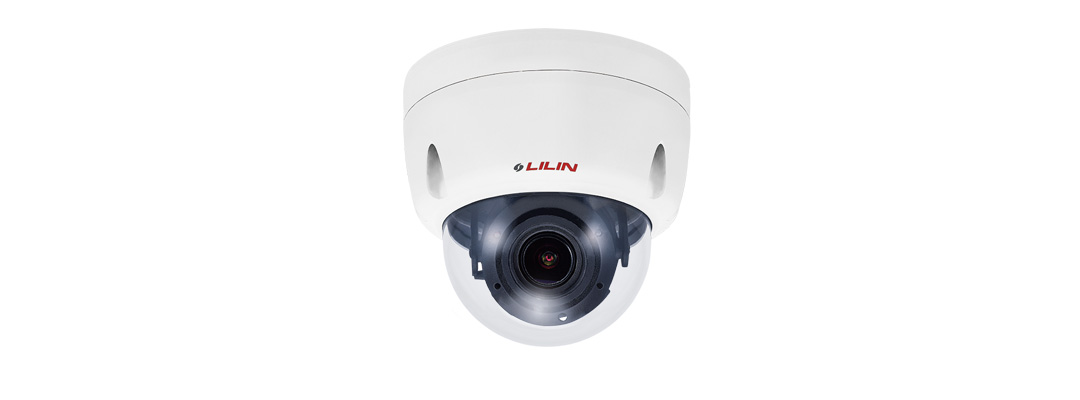

1080P Day & Night Vari-Focal IR Vandal Resistant IP Dome Camera
Model:SR6422EX3
- Full HD 2.0 megapixel CMOS image sensor
- 1080P@60fps
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 120dB
- Defog function
- Digital PTZ supported
- IVS supported
- Tampering detection / audio detection / motion detection alarm function
- Impact Resistant Polycarbonate Dome Cover
- High efficiency IR LED,radiant distance up to 30m
- Smart IR supported
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O: 1 in, 1 out
- ONVIF Profile S supported
SR6422EX3 is a perfect IP camera choice for low-light conditions. It features 1080P@60fps and full HD 2.0 megapixel CMOS image sensor, ensuring to provide users with superb image quality. In the combination of HDR up to 120dB, 3D noise reduction, intelligent image signal processing, and the built-in Sense-up+ technology, SR6422EX3 delivers excellent image under low-light conditions without any motion blur. The embedded ROI function allows you to select the specific area based on your request, providing clear and detailed images which feed your needs. Its IP67-rated house designed and impact resistant polycarbonate dome cover makes sure that users can withstand of various difficult weather conditions such as rain, dust and fog.
Model
SR6422EX3
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Installation Guide | Installation Guide SR6422EX3 | 2020-06-23 | 3,076KB | |
Manual | Ultra, ZH, S and ZS Series User Manual | 2020-05-05 | 3,387KB | |
Firmware | Firmware Version : 2.7.92.8848 , For Model: SG1122E, SR7424EX3.6/SR7428EX3.6, SR7022E4/SR7022E6, SR8222E4, SR2922EX3, SR6422EX3, SD2222E2/SD2222E4, ZSR8122EX2, ZSR8122EX3 | 2020-04-15 | 36,138KB | |
Catalogue | Catalogue SR6422X | 2019-05-02 | 2,305KB | |
A&E | A&E SR6422EX3 | 2019-05-02 | 385KB | |
Manual | Ultra, S and ZS series IVS Camera User Manual | 2019-02-11 | 2,442KB |
-
