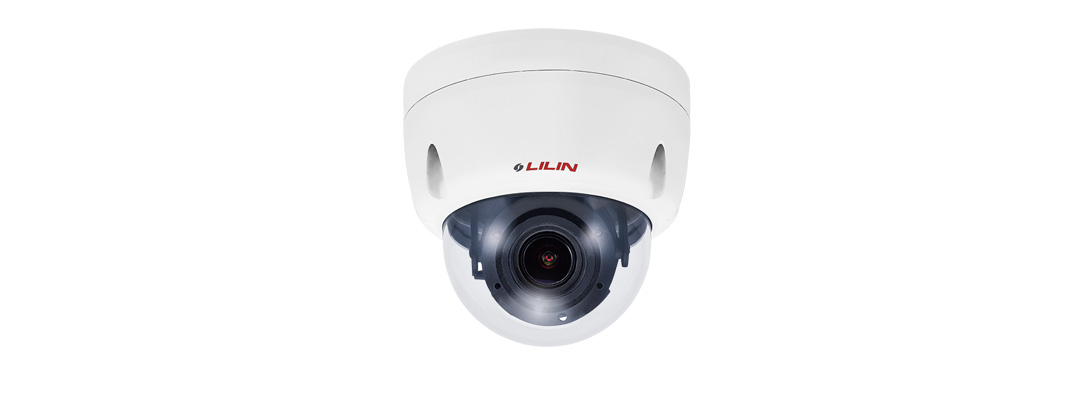

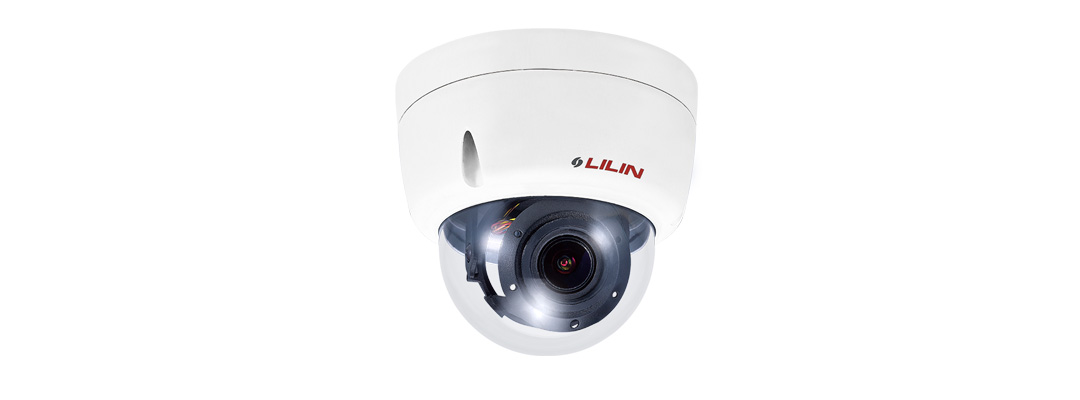

1080P Day & Night Vari-Focal IR IP Dome Camera
Model：SR2922EX3
- Full HD 2.0 Megapixel CMOS image sensor
- 1080P@60fps
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 120dB
- Defog function
- Digital PTZ supported
- IVS supported
- Tampering detection / audio detection / motion detection alarm function
- High efficiency IR LED, radiant distance up to 30m
- Smart IR supported
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O: 1 in, 1 out
- ONVIF Profile S supported
An Ideal Indoor Camera for Low-Light Conditions
SR2922EX3 is an indoor IP camera ideal for low-light conditions. The SR2922EX3 camera owns full HD 2.0 Megapixel CMOS image sensor, delivering an ultra fast frame rate of 60 FPS at 1080P resolution. This secures that the images are crystal clear. In combination of HDR, 3D noise reduction, intelligent image signal processing, and the built-in Sense-up+ technology, SR2922EX3 delivers excellent image under low-light conditions without any motion blur. The embedded ROI function allows you to select the specific area based on your request, providing clear and detailed images which feed your needs.
Model
SR2922EX3
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation 29/30 Vari-Focal Dome Series | 2021-11-18 | 3,506KB | |
| Manual | Ultra, ZH, S and ZS Series User Manual | 2020-05-05 | 3,387KB | |
| Firmware | Firmware Version : 2.7.92.8848 , For Model： SG1122E, SR7424EX3.6/SR7428EX3.6, SR7022E4/SR7022E6, SR8222E4, SR2922EX3, SR6422EX3, SD2222E2/SD2222E4, ZSR8122EX2, ZSR8122EX3 | 2020-04-15 | 36,138KB | |
| Manual | Ultra, S and ZS series IVS Camera User Manual | 2019-02-11 | 2,442KB | |
| A&E | A&E SR2922EX3 | 2018-08-24 | 551KB | |
| Catalogue | Catalogue SR2922X | 2018-01-16 | 854KB |
-
