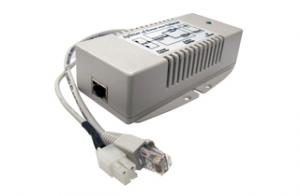

1 port High Power PoE Splitter
Model：SL4024A
- Input Voltage : 36Vdc ~ 60Vdc input or 40Vdc ~ 60Vdc
- Output Voltage : 5Vdc, 12Vdc, 24Vdc & 24Vac
- Output current : 660mA~2.4A
- Output Power : 25W ~ 80W
- Efficiency : 75% ~ 86%
- Short circuit and Over load protection
The Splitter provide the Data & Power (Vdc or Vac -- 5V, 12V, 24V, 24Vac, ...etc.) to the Ethernet-enable devices. With PoE, user can eliminate the power adapter requirement which usually nears a power outlet. that gives you flexibility for the installation.
Model
SL4024A
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-PoE injector | 2016-12-07 | 1,662KB |
