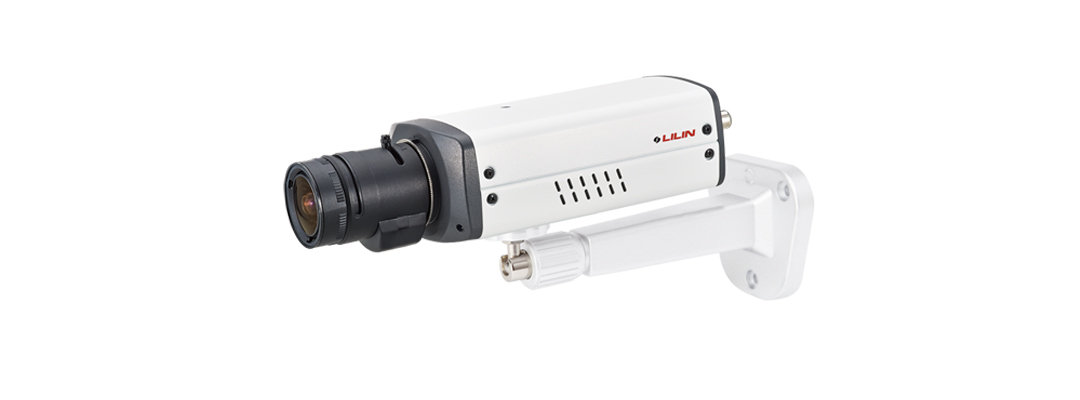

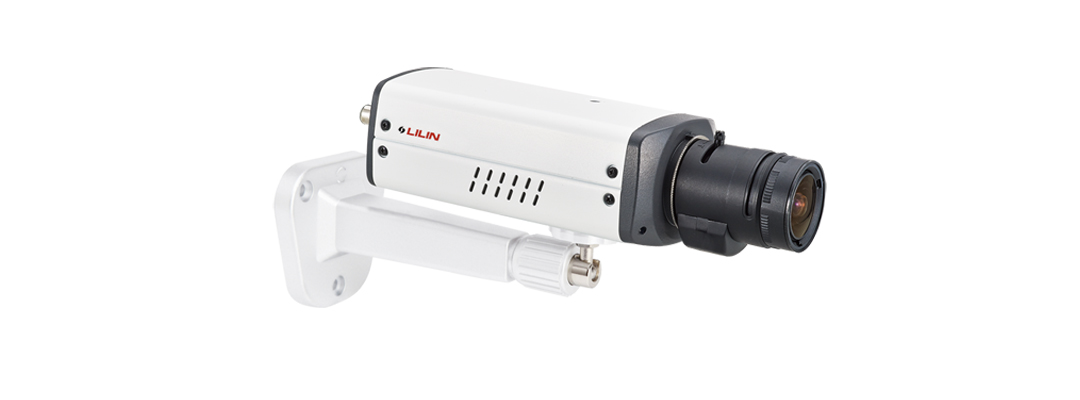

1080P Day & Night IP Box Camera
Model：SG1122E
- Infrared-cut filter for day/night operations
- 60 frames per second – ultra fast frame rate
- Micro SD/SDHC/SDXC card recording supported
- Intelligent Video Surveillance analytics built-in
- 1080p resolution
Viewing Objects to Ensure Pictures are Kept Sharp
LILIN S Series camera – SG1122 is best-in-class IP camera, designed for a variety of applications. From LILIN’s powerful latest technology, the S Series cameras have an ultra fast frame rate of 60 frames per second at Full HD 1080P resolution, this results in crystal clear images. SG1122 camera is built-in with IR-cut filter able to capture fast moving objects during daytime and nighttime.
Model
SG1122E
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation Guide SG1122E | 2020-06-29 | 7,647KB | |
| Manual | Ultra, ZH, S and ZS Series User Manual | 2020-05-05 | 3,387KB | |
| Firmware | Firmware Version : 2.7.92.8848 , For Model： SG1122E, SR7424EX3.6/SR7428EX3.6, SR7022E4/SR7022E6, SR8222E4, SR2922EX3, SR6422EX3, SD2222E2/SD2222E4, ZSR8122EX2, ZSR8122EX3 | 2020-04-15 | 36,138KB | |
| Manual | Ultra, S and ZS series IVS Camera User Manual | 2019-02-11 | 2,442KB | |
| A&E | A&E SG1122E | 2018-08-24 | 521KB | |
| Catalogue | Catalogue SG1122 | 2017-11-09 | 1,583KB | |
| Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB | |
| Image | High-Resolution Image | 2,616KB |
-
