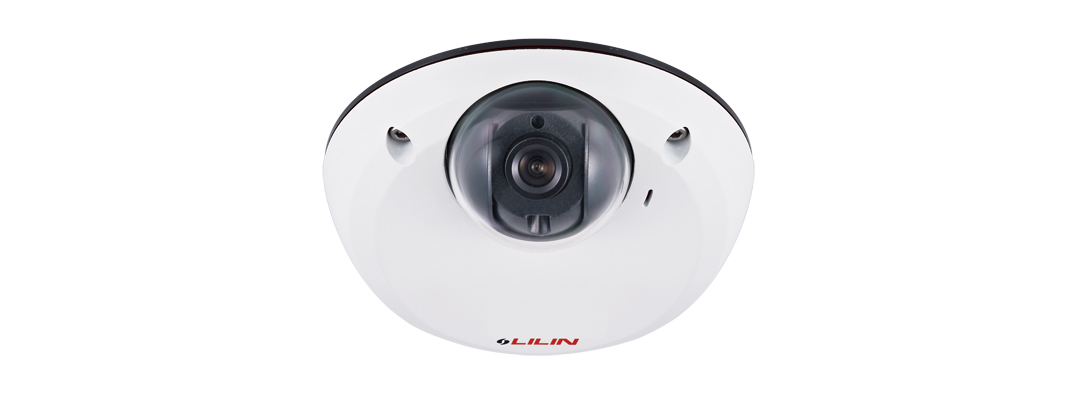

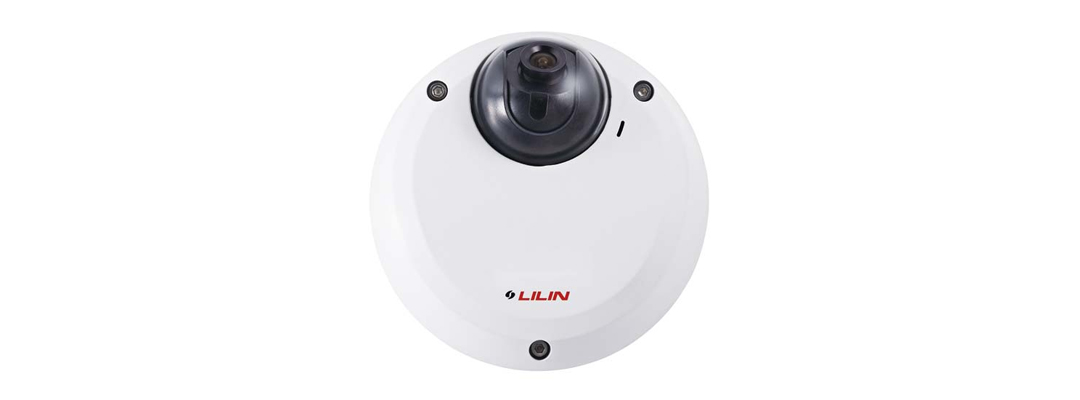

1080P Fixed IP Dome Camera
Model：SD2222E2 (Discontinued) / SD2222E4 (Discontinued)
- Ceiling mount & discreet design
- Small form factor – only in 10.5cm diameter
- 60 frames per second – ultra fast frame rate
- Motion, tamper, and audio detection
- Intelligent Video Surveillance analytics built-in
- Full HD 1080p resolution
Discontinued date
- 2020.12.7
Alternative models
- MD2222/MD2222E2
LILIN S Series cameras – SD2222 is best-in-class IP camera, designed for a variety of outdoor and indoor applications. From LILIN’s powerful latest technology, the S Series cameras have an ultra fast frame rate of 60 FPS at 2 megapixel 1080P resolution, this results in crystal clear images. SD2222 camera is incorporated with a progressive scan MOS sensor with 0.1 lux at F1.6 capability, S Series cameras are able to capture fast moving objects during daytime. The S Series cameras support high performance H.264 and Motion JPEG compression technology, and offers smooth video quality up to 60 FPS at 1080P. Using 60 FPS at 2 megapixel 1080P resolution, can be particularly beneficial when viewing moving objects to ensure pictures are kept sharp.
Model
SD2222E2 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Model
SD2222E4 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation Guide SD2222E2 | 2020-06-29 | 2,940KB | |
| Installation Guide | Installation Guide SD2222E4 | 2020-06-29 | 2,940KB | |
| Manual | Ultra, ZH, S and ZS Series User Manual | 2020-05-05 | 3,387KB | |
| Firmware | Firmware Version : 2.7.92.8848 , For Model： SG1122E, SR7424EX3.6/SR7428EX3.6, SR7022E4/SR7022E6, SR8222E4, SR2922EX3, SR6422EX3, SD2222E2/SD2222E4, ZSR8122EX2, ZSR8122EX3 | 2020-04-15 | 36,138KB | |
| Manual | Ultra, S and ZS series IVS Camera User Manual | 2019-02-11 | 2,442KB | |
| A&E | A&E SD2222E2 | 2018-08-24 | 517KB | |
| A&E | A&E SD2222E4 | 2018-08-24 | 518KB | |
| Catalogue | Catalogue SD2222 | 2017-11-09 | 2,198KB | |
| Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB | |
| Image | High-Resolution Image | 4,113KB |
-
