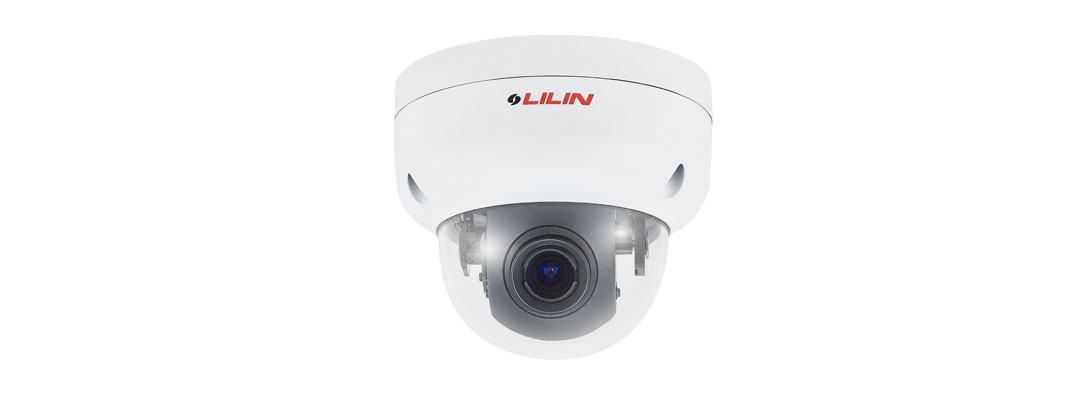

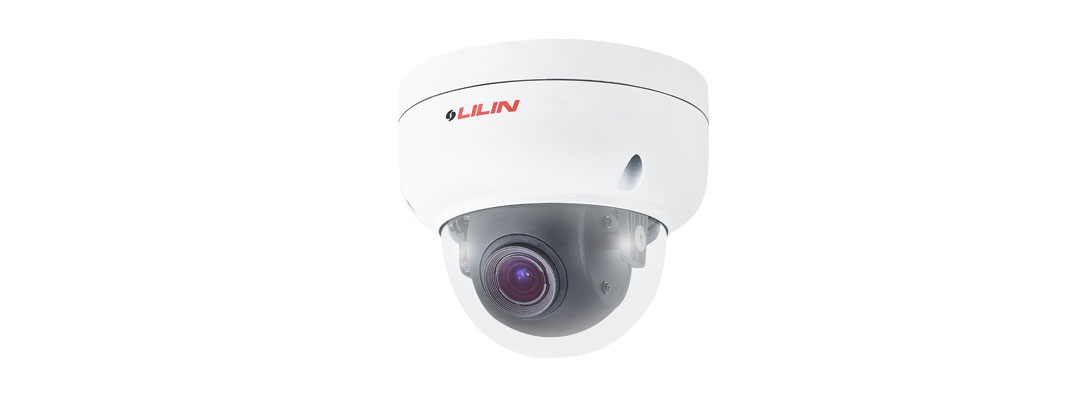

3X Day&Night 1080P HD Vandal Resistant Mini Fast Dome IP Camera
Model：PZD6422EX3
- 3x Optical Zoom Lens (3.35 - 10.05mm)
- Day & Night (IR cut removable)
- True H.264 AVC High Profile video compression
- Smart H.264 supported
- HDR function up to 100dB
- 3D Noise Reduction (MCF)
- PTZ Control
- IVS supported
- Up to 256 Programmable Preset Positions
- Auto Tracking Function
- Digital 1 input / 1 Output
- Onvif Support
The PZD6422EX3 is 1080P HD PTZ Dome IP Camera featuring 3X optical zoom capability. The high-speed dome is capable of streaming HD video at up to 30 frames per second. High Dynamic Range (HDR) feature, the The PZD6422EX3 captures highlights and shadows simultaneously, eliminating pixilation and smear.
Capable of making continuous rotations, users can accurately position the camera to identify specific targets. The PZD6422EX3 PTZ camera provide IP66-rated protection against water and dust. The 3X optical zoom gives thePZD6422EX3 an impressive range. With a focal length of 3.35 mm ~ 10.05 mm, PZD6422EX3 is ideal for numerous applications.
Model
PZD6422EX3
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Firmware | Firmware 4.2.94.8882 , For Model： PZD6422EX3 | 2020-10-16 | 48,587KB | |
| Installation Guide | Installation Guide PZD6422EX3 | 2020-07-01 | 1,732KB | |
| Manual | HD Fast Dome IP Camera Series User Manual | 2020-05-14 | 3,358KB | |
| Catalogue | Catalogue PZD6422EX3 | 2019-05-02 | 1,601KB | |
| A&E | A&E PZD6422EX3 | 2019-05-02 | 563KB |
-
