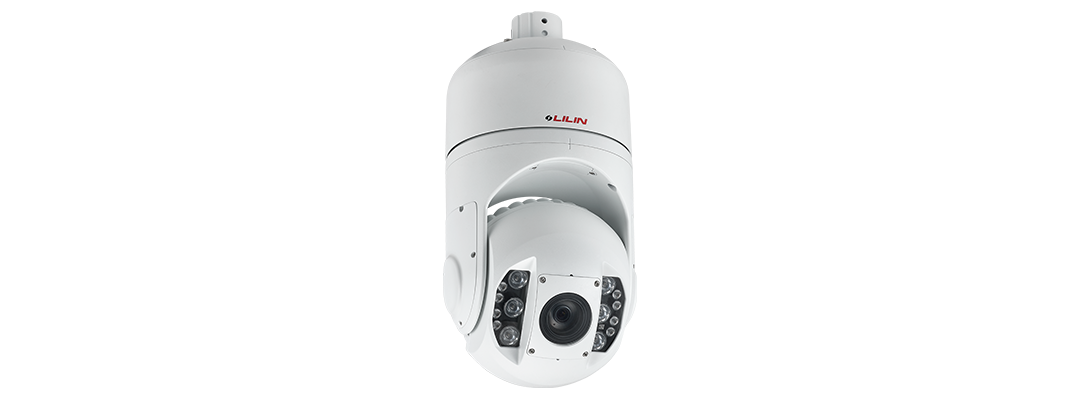

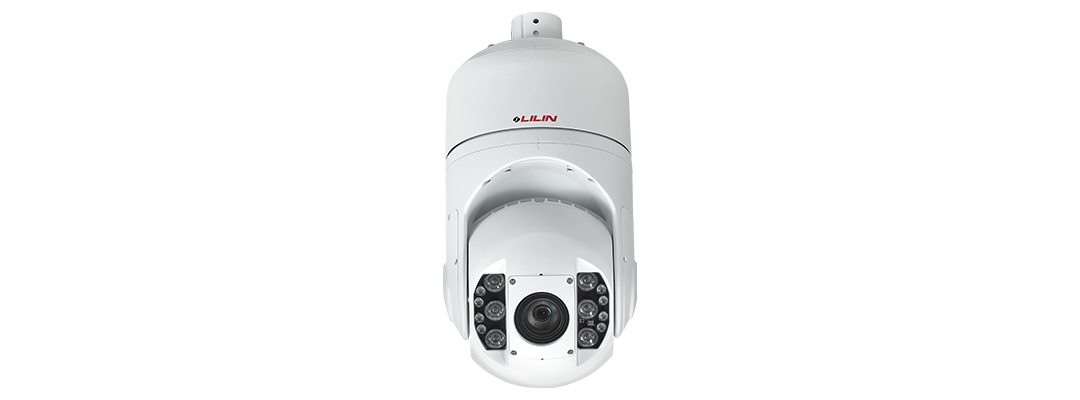

25X/30X1080P Day & Night 60 FPS IR Vandal Resistant PTZ IP Camera

Model：PSR5528X25 / PSR5528X30

Features Description Specifications Downloads Accessories

25X Optical Zoom Lens(4.7 – 117.5mm) / 30X Optical Zoom Lens(4.3 – 129mm)
16X Digital Zoom
Day & Night (IR cut removable)
Full HD 2.14 megapixel CMOS image sensor
60 FPS @ 1080P True H.264 AVC High Profile video compression
H.264 and Motion JPEG multi-profile video streaming
Digital Noise Reduction function
HDR function up to 90dB
IVS supported
Alarm(1 – 4) / Motion / Tamper / Audio / Network loss detection
Smart event support
200-metre infrared night vision
Digital image stabilization
Defog function
Dynamic privacy zone mask
Horizontal Flip
360° Endless panning
Tilting range up to 210∘
Up to 256 Programmable Preset Positions
2-way audio supported
ONVIF supported
RS-485 supported
Weatherproof IP66
Vandal resistant approve IK10
Rain repellent glass

PSR5528X25 PSR5528X30

Video performance Power Sensor Certifications Environmental PC requirement

Model

PSR5528X25

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

Video performance Power Sensor Certifications Environmental PC requirement

Model

PSR5528X30

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿

Classification	Description	Date	File Size	Downloads
Installation Guide	Installation Guide IRPTZ Series	2021-11-11	2,597KB
Manual	HD Fast Dome IP Camera Series User Manual	2021-11-04	3,693KB
A&E	A&E PSR5528X25	2019-06-18	317KB
A&E	A&E PSR5528X30	2019-06-18	317KB
Catalogue	Catalogue PSR5528X25	2019-06-05	1,489KB
Catalogue	Catalogue PSR5528X30	2019-06-05	1,488KB
