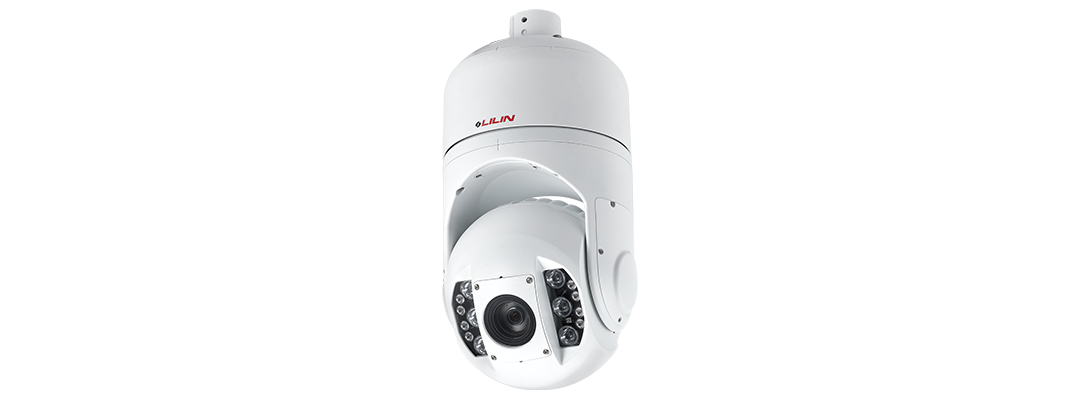

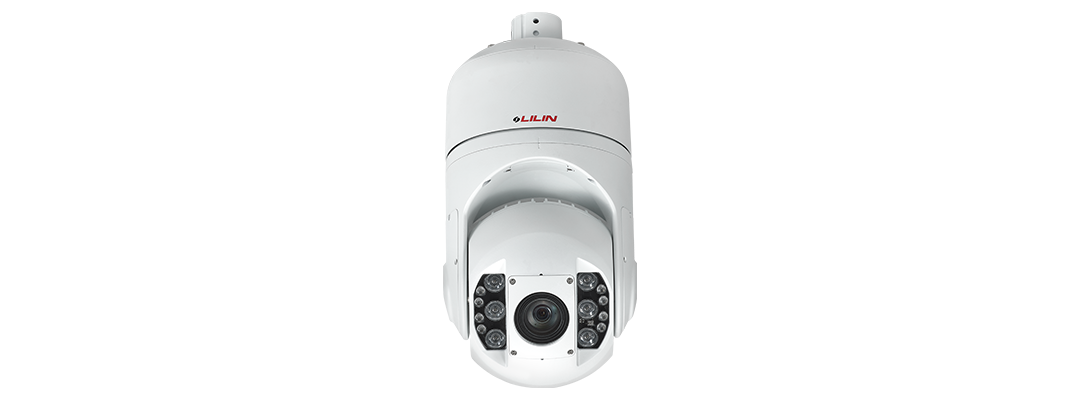

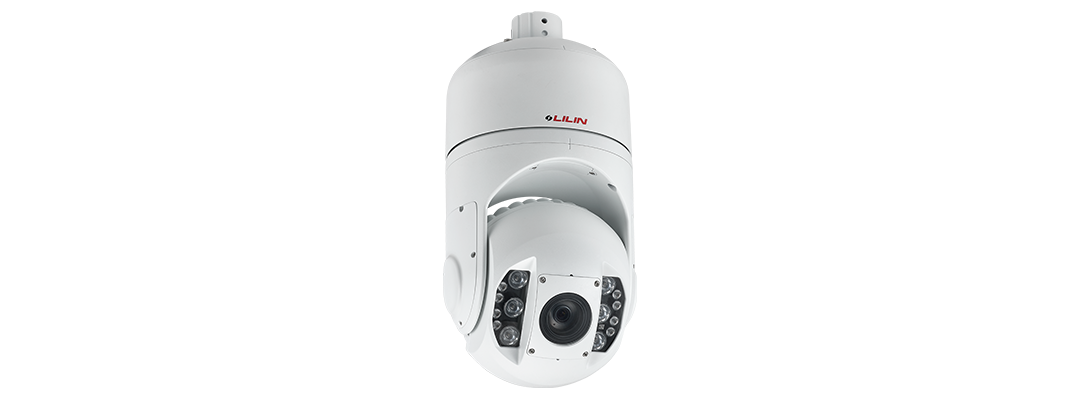

25X/30X1080P Day & Night 60 FPS IR Vandal Resistant PTZ IP Camera

Model：PSR5524X25 / PSR5524X30

Features Description Specifications Downloads Accessories

25X Optical Zoom Lens(4.7 – 117.5mm) / 30X Optical Zoom Lens(4.7 – 129mm)

16X Digital Zoom

Day & Night (IR cut removable)

Full HD 2.14 megapixel CMOS image sensor

60 FPS @ 1080P True H.264 AVC High Profile video

compression

H.264 and Motion JPEG multi-profile video streaming

Digital Noise Reduction function

HDR function up to 90dB

IVS supported

Alarm(1 – 4) / Motion / Tamper / Audio / Network loss detection

Smart event support

200-metre infrared night vision

Digital image stabilization

Defog function

Dynamic privacy zone mask

Horizontal Flip

360° Endless panning

Tilting range up to 210∘

Up to 256 Programmable Preset Positions

2-way audio supported

ONVIF supported

RS-485 supported

Weatherproof IP66

Vandal resistant approve IK10

Rain repellent glass

PSR5524X25 PSR5524X30

Video performance Power Sensor Certifications Environmental PC requirement

Model

PSR5524X25

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

Video performance Power Sensor Certifications Environmental PC requirement

Model

PSR5524X30

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿

Classification	Description	Date	File Size	Downloads
Installation Guide	Installation Guide IRPTZ Series	2021-11-11	2,597KB
Manual	HD Fast Dome IP Camera Series User Manual	2021-11-04	3,693KB
Catalogue	Catalogue PSR5524X25	2020-01-21	1,486KB
Catalogue	Catalogue PSR5524X30	2020-01-21	1,488KB
A&E	A&E PSR5524X25	2019-06-18	317KB
A&E	A&E PSR5524X30	2019-06-18	304KB
