Products

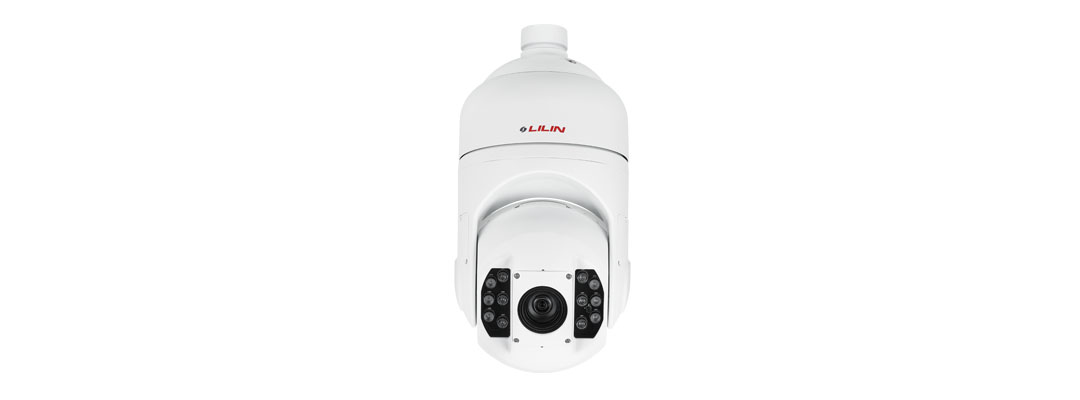

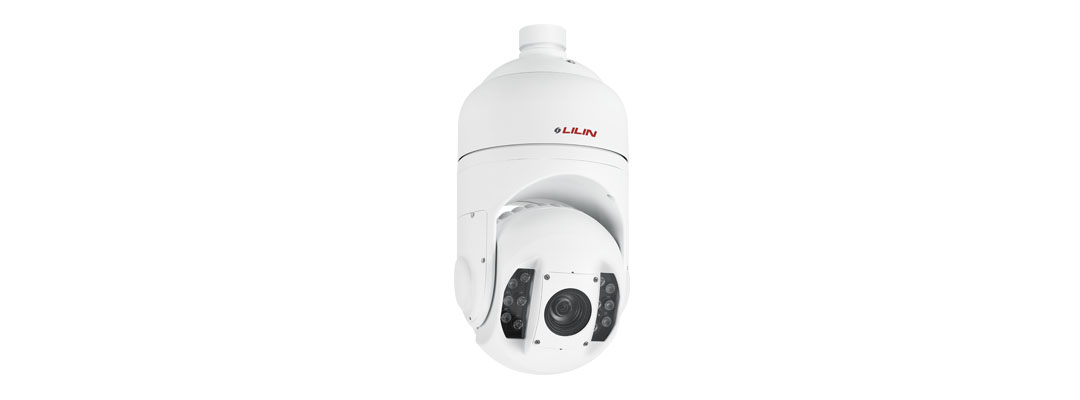

30X Day/Night 60fps Full HD Infrared PTZ IP Camera
Model:PSR5024EX30
- Outdoor PTZ camera
- 30X optical zoom
- IP66 rain and dust resistant
- Rain repellent glass
- Can resist to wind speed up to 60m/s class 17 level
- 150-metre infrared night vision
- 1080p resolution
- Wide Dynamic Range up to 90dB
- H.264 and Motion JPEG multi-profile video streaming
PSR5024EX30 is 30X 1080P Full HD Infrared PTZ IP Camera designed for both day and night environment. This high-speed PTZ IP Camera is capable of streaming HD video at up to 60 FPS. It features Wide Dynamic Range (WDR) up to 90dB, the PSR5024EX30 captures highlights and shadows simultaneously, eliminating pixilation and smear further providing perfect detailed images. Combined this with 3D Noise Reduction technology, Adaptive Tone Reproduction and built-in infrared LEDs, it ensures that the contrast of images in bright or dark areas is dramatically improved. The images are perfectly delivered.
Capable of making 360° continuous rotations with a speed range of 0.1° – 300° per second, users can accurately position the camera to identify specific targets. The 30x optical zoom and 16x digital zoom capacity give the PSR5024EX30 an impressive range.
The camera is IP66 rain and dust resistant and can be operated at the range of -40°C to 50°C.
It can also be installed in outside environment and resist to wind speed up to 60 meters per second (216km/h) like typhoon or super typhoon.
Model
PSR5024EX30
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Manual | HD Fast Dome IP Camera Series User Manual | 2021-11-04 | 3,693KB | |
Firmware | Firmware 2.7.94.9287, For Model:PSR5024EX30, PSR5024EX20, PSD4624EX30, PSD4624EX20 | 2020-11-19 | 30,627KB | |
Installation Guide | Installation Guide PSR5024EX30 | 2020-07-01 | 2,780KB | |
Catalogue | Catalogue PSR5024EX30 | 2020-02-11 | 1,973KB | |
A&E | A&E PSR5024EX30 | 2019-10-14 | 317KB |
-
