Products

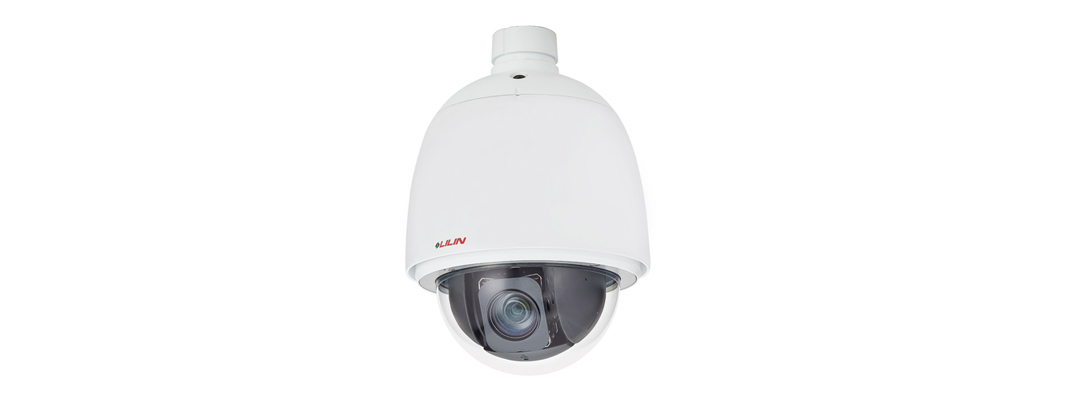

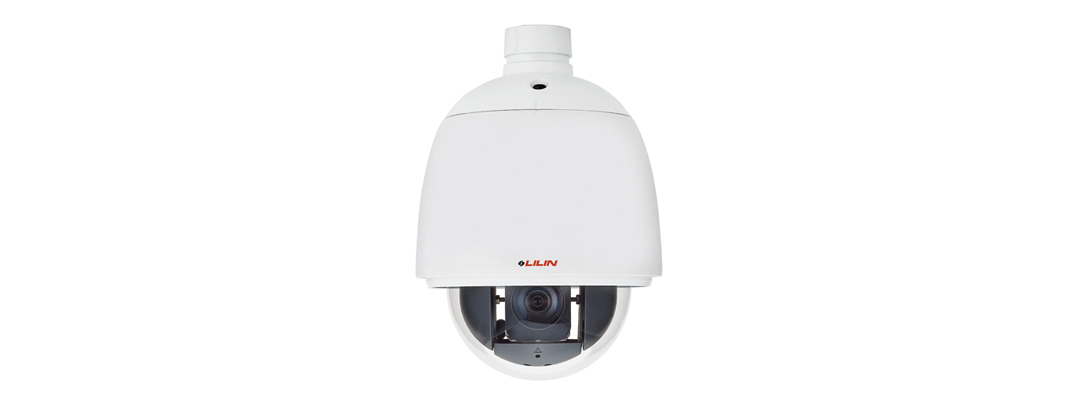

30X Day & Night 60fps Full HD PTZ Dome IP Camera
Model:PSD4624EX30
- Outdoor PTZ camera
- 30X optical zoom
- IP66 rain and dust resistant
- IR cut filter for day/night operations
- 1080p resolution
- Wide Dynamic Range up to 90dB
- H.264 and Motion JPEG multi-profile video streaming
The PSD4624EX30 is 1080P HD PTZ IP Camera featuring 30X optical zoom capability. The high-speed dome is capable of streaming HD video at up to 60 frames per second. Featuring Wide dynamic Range (WDR) feature, the PSD4624EX30 captures highlights and shadows simultaneously, eliminating pixilation and smear. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets. PSD4624EX30 PTZ camera provide IP66-rated protection against water and dust. With built-in heaters and fans, the cameras are able to be used in temperatures ranging from - 40°C – + 50°C . The 30X optical zoom gives the PSD4624 an impressive range. With a focal length of 4.3mm (WIDE)– 129mm (TELE), PSD4624EX30 is ideal for numerous applications.
Model
PSD4624EX30
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Manual | HD Fast Dome IP Camera Series User Manual | 2021-11-04 | 3,693KB | |
Firmware | Firmware 2.7.94.9287, For Model:PSR5024EX30, PSR5024EX20, PSD4624EX30, PSD4624EX20 | 2020-11-19 | 30,627KB | |
Installation Guide | Installation Guide PSD4624EX20 | 2020-07-01 | 2,682KB | |
A&E | A&E PSD4624EX30 | 2019-10-14 | 583KB | |
Catalogue | Catalogue PSD4624EX30 | 2019-02-26 | 1,687KB |
-
