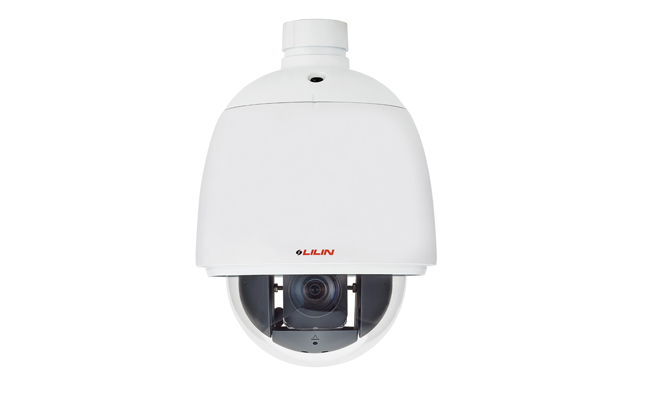

Day&Night 1080P 60fps Full HD PTZ Dome IP Camera

Model:PSD4624EX20

  • Outdoor PTZ camera
  • 20X optical zoom
  • IP66 rain and dust resistant
  • IR cut filter for day/night operations
  • 1080p resolution
  • Wide Dynamic Range up to 90dB
  • H.264 and Motion JPEG multi-profile video streaming

The PSD4624EX20 is 1080P HD PTZ Dome IP Camera featuring 20X optical zoom capability . The high-speed dome is capable of streaming HD video at up to 60 frames per second. Featuring Wide dynamic Range (WDR) feature, the PSD4624EX20 captures highlights and shadows simultaneously, eliminating pixilation and smear. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets. PSD4624EX20 PTZ camera provide IP66-rated protection against water and dust. With built-in heaters and fans, the cameras are able to be used in temperatures ranging from - 40°C – + 50°C. The 20X optical zoom gives the PSD4624EX20 an impressive range. With a focal length of 4.3mm (WIDE) – 86mm (TELE), PSD4624EX20 is ideal for numerous applications.

Model

PSD4624EX20

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Manual HD Fast Dome IP Camera Series User Manual 2021-11-04 3,693KB
Firmware Firmware 2.7.94.9287, For Model:PSR5024EX30, PSR5024EX20, PSD4624EX30, PSD4624EX20 2020-11-19 30,627KB
Installation Guide Installation Guide PSD4624EX20 2020-07-01 2,682KB
A&E A&E PSD4624EX20 2019-10-14 586KB
Catalogue Catalogue PSD4624EX20 2019-02-26 1,696KB
