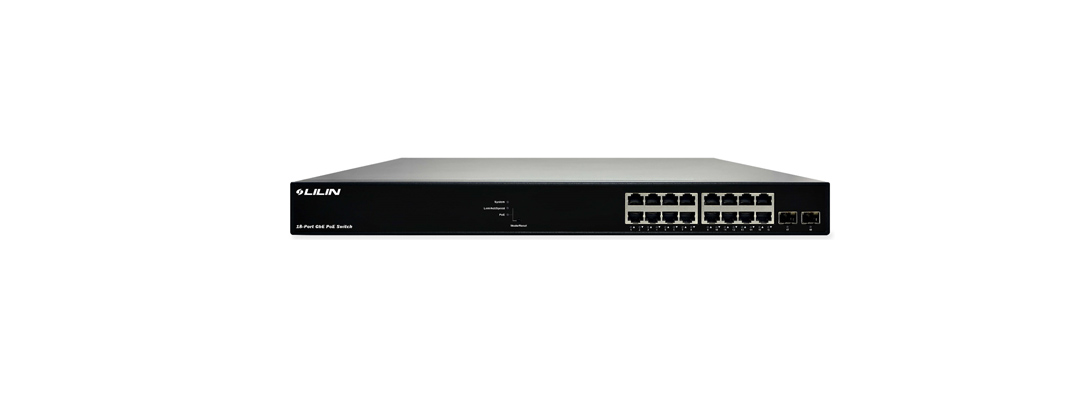

16-Port Unmanaged GbE PoE+ Switch
Model：PS3188FPS3188F (EOL)
- Built in Device Management System (DMS)
- PoE Port configuration and scheduling
- IEEE 802.3af/at Power over Ethernet
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Discontinued date
- 2019.06.19
Alternative models
- PS3108C / PS3188C
PS3188F unmanaged GbE PoE+ switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
PS3188F delivers 16 (10M/100M/1G) RJ45 with 16 PoE+ (Support 802.3 at/af, and total up to 250W) ports and 2 GbE SFP ports. PS3188F provides high HW performance and environment flexibility for SMBs and Enterprises.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. PS3188F is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Model
PS3188FPS3188F (EOL)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-PS3188F | 2018-03-02 | 220KB | |
| Manual | PS3188F Quick Installation Guide | 2018-02-09 | 417KB |
