Products

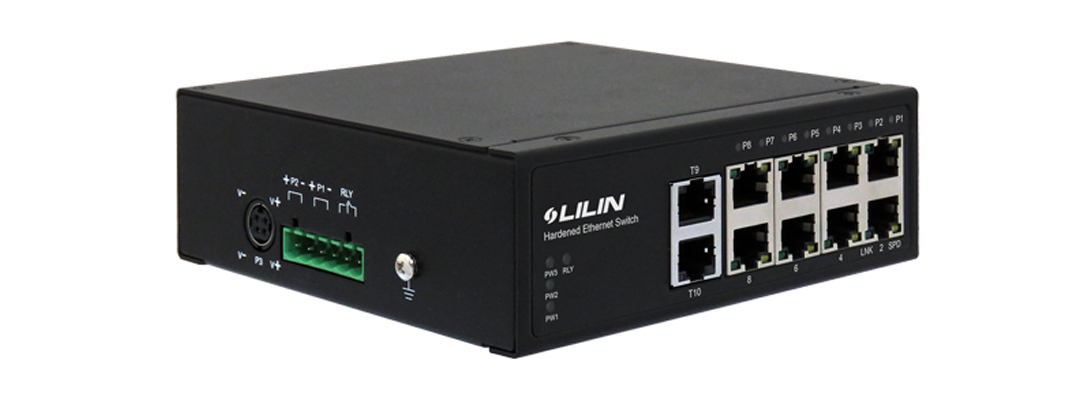

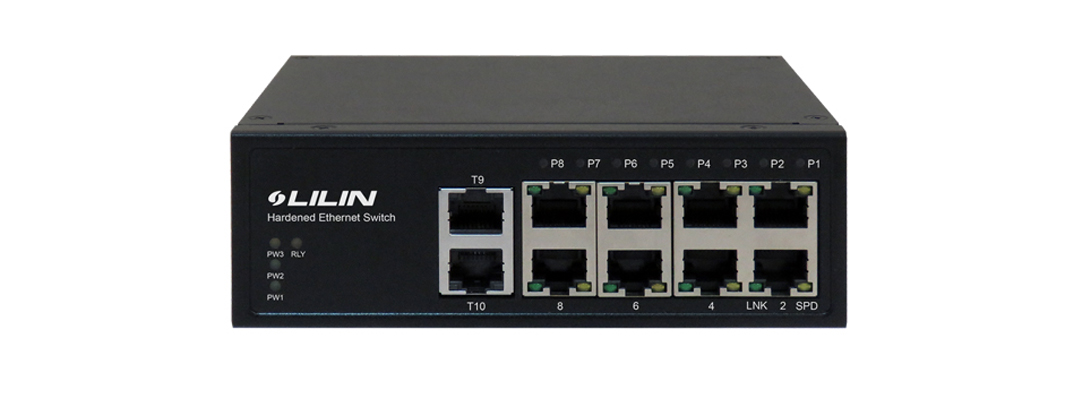

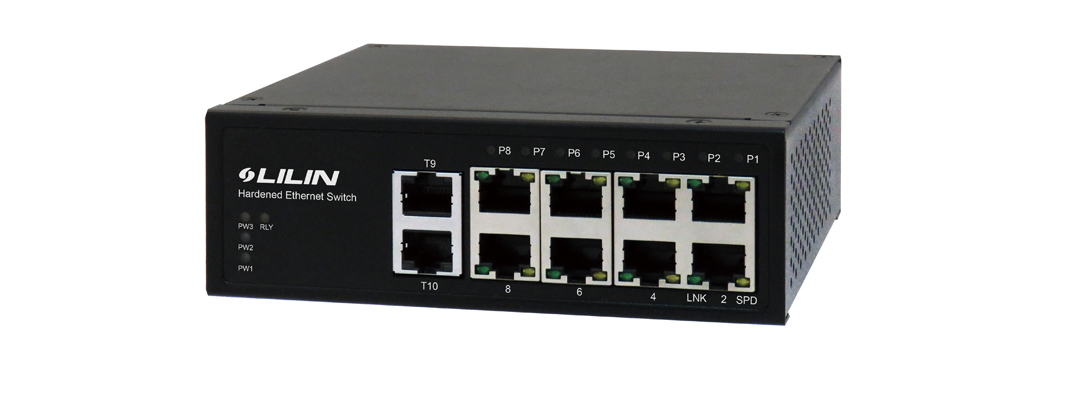

100M POE SWITCH
Model：PS3105T (Discontinued)
- Industrial 10 port POE Switch
- Designed with hardened Marvell IC and hardened POE controller
- With 8x10/100M 30W PSE + 2x 1000M TX
- Support Power 1, Power 2, and Power DIN (For external power adapter)
- Input 44-56VDC
- Operating temp -40°C to 75°C
Discontinued date
- 2020.11.27
Alternative models
- Indoor type 8port PS3089 / Vehile type M12 PS3064DM
This Industrial POE switch is designed with Hardened Marvell IC and Hardened POE controller to ensure performance in harsh environment. It is equipped with 8 ports 30Watts 100M PSE and 2 x Giga TX to expand your network distance. With our ColdDesign technology, it will not only power up your PD and also reduce its excessive heat to a minimum. It has been rigorously tested for your Security, Surveillance, and transportation applications.
Model
PS3105T (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-PS3105T | 2016-12-07 | 392KB | |
| Manual | PS3105C_PS3105T User Manual | 2016-08-30 | 1,158KB | |
| Image | High-Resolution Image | 830KB |
-
