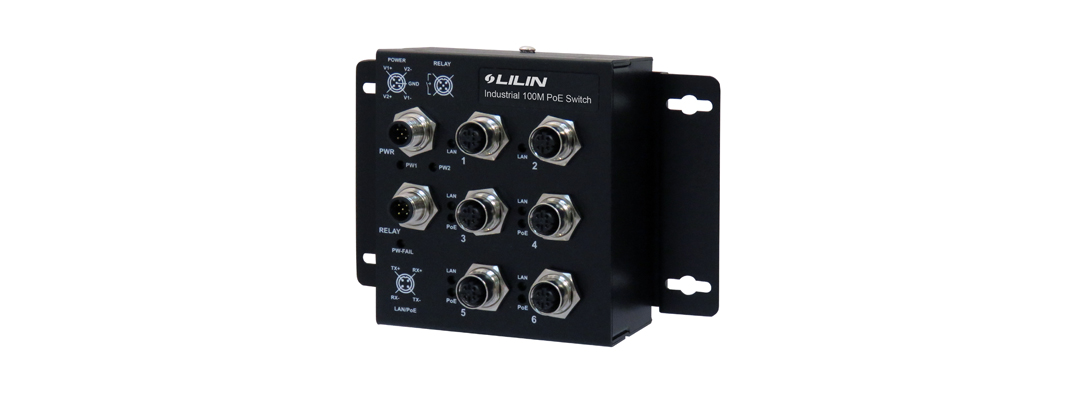

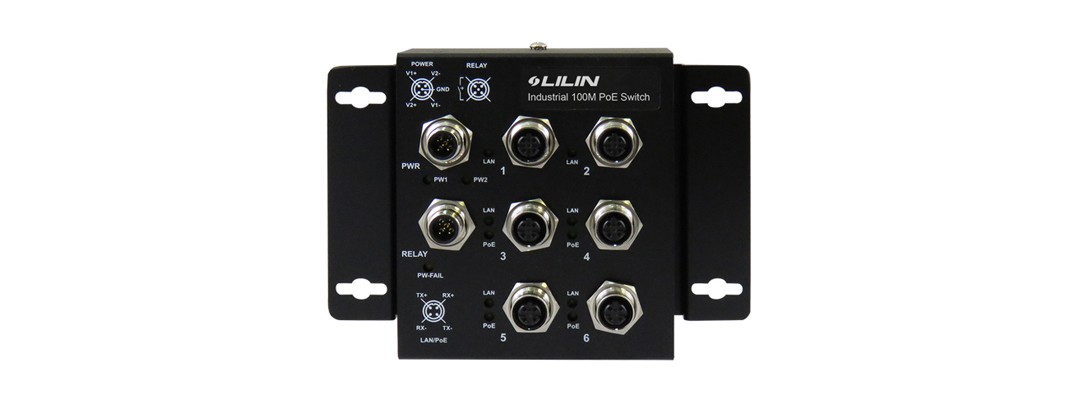

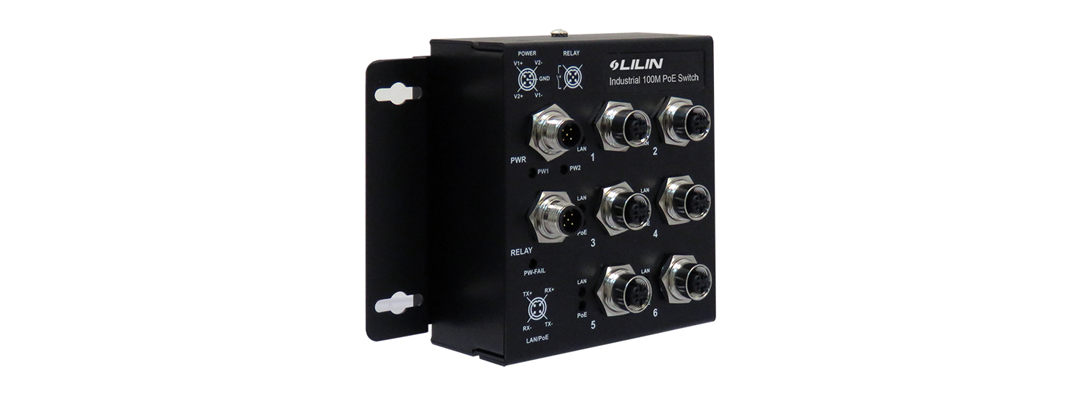

M12 POE Switch 24VDC
Model：PS3064DM
- Rugged Industrial 6 port 10/100M POE switch
- With 4 x 10/100M M12 PSE (IEEE802.af/at 30W)+ 2x10/100M M12 (data)
- Power input 24 -56 VDC with voltage booster
- Operating temp: -40°C to +75°C
This rugged designed high power 6 port industrial POE+ Injector is equipped with our high efficiency ColdDesign technology which accept input voltage from 24-56VDC to boost voltage to 55vdc to power up PDs in moving train or vehicle application and to reduce the excessive heat problem to a minimum. It is equipped with 4 port 30Watts 10/100M M12 PSE to meet IEEE802.3af/at 30Watts per port and 2 M12 uplink ports for your remote device. It is being rigorously tested for your Security, Transportation and Telco application.
Model
PS3064DM
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Manual | M12 POE Switch 24VDC User Manual | 2020-07-29 | 628KB | |
| Catalogue | Catalogue-PS3064DM | 2016-12-07 | 359KB | |
| Image | High-Resolution Image | 656KB |
-
