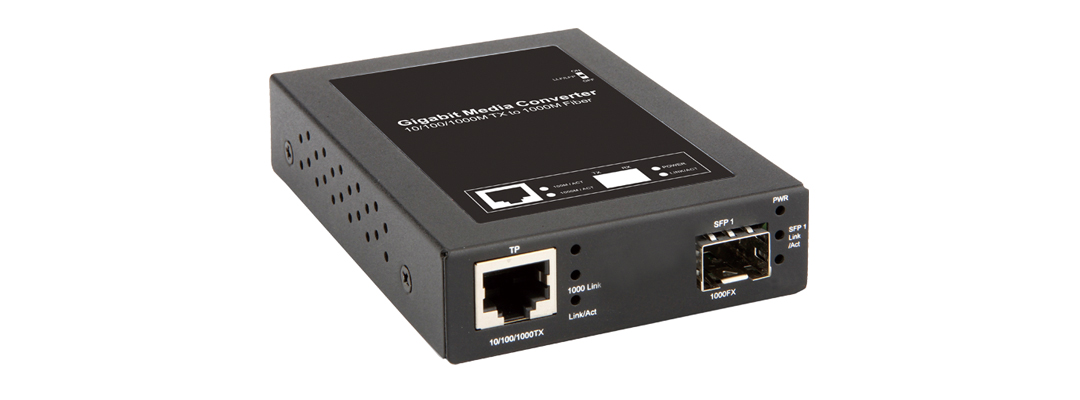

10/100/1000BaseT to 1000SX/LX SFP Media Converter
Model：PMH-RF-G
- Compliant with IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LX Gigabit Ethernet Standards
- One 10/100/1000BaseT Gigabit Ethernet TP Port and One SFP Slot for Gigabit Link
- One SFP slot can support either Multi or Single Mode SFP Modules
- TP Port can support Full-Duplex, Auto-MDI/MDI-X and Auto-Negotiation
Model
PMH-RF-G
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-PMH-RF-G | 2016-12-07 | 997KB | |
| Installation Guide | PMH-RF-G Installation Manual | 2016-12-07 | 191KB |
