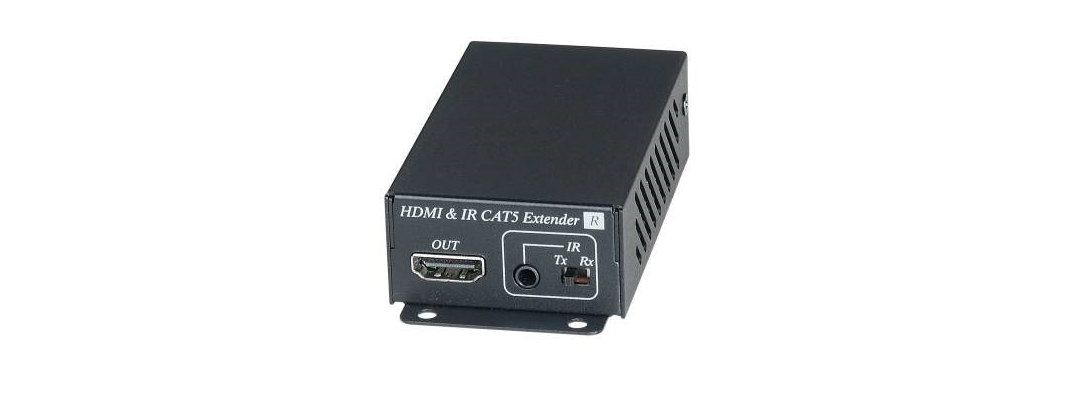

HDMI & IR CAT5 Extender
Model：PMH-HE02EI
- One set include one transmitter and one receiver.
- Extends HDMI and IR signal over one CAT5/5e/6 cable.
- Uncompressed high definition video up to 1080p@60Hz@48bits and 4K.
- Built in IR control, IR signal could be selectable at either TX/RX side.
- Max. Data Rate- 10.2Gbps.
- HDMI 1.4 and HDCP compliance.
- 4K resolution transmission range up to 30 meters with CAT5e/6 cable, up 40 meters with CAT6a/7 cable.
- 1080P resolution transmission range up to 60 meters with CAT5e/6 cable, up 70 meters with CAT6a/7 cable.
- Audio support up to LPCM7.1, Dolby TrueHD, DTS-HD MA.
Model
PMH-HE02EI
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-PMH-HE02EI | 2018-07-30 | 119KB | |
| Installation Guide | PMH-HE02EI Installation Manual | 2018-07-30 | 390KB |
