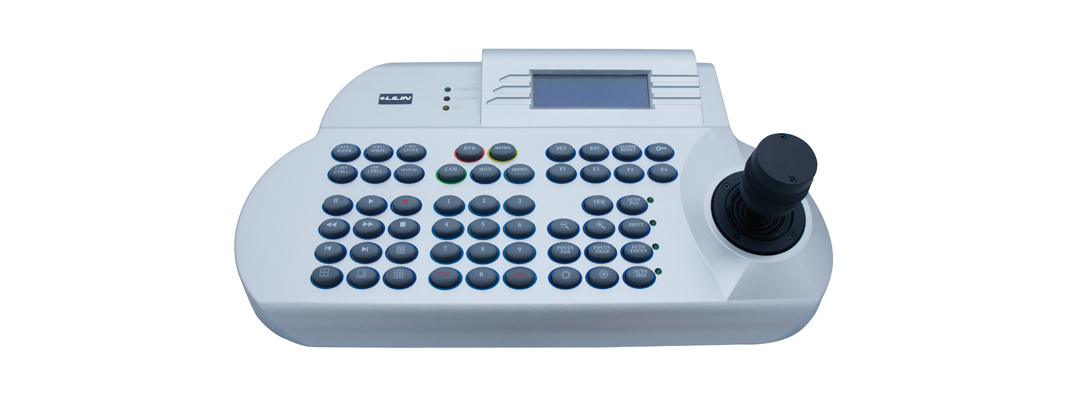

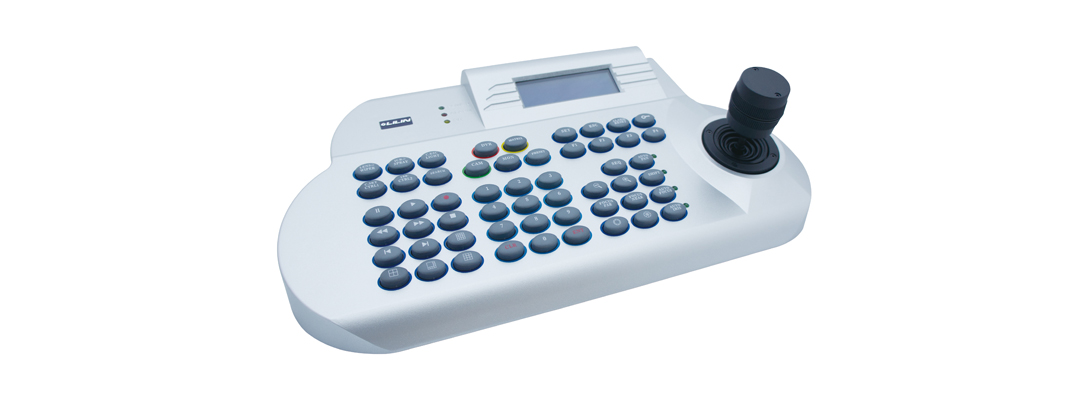

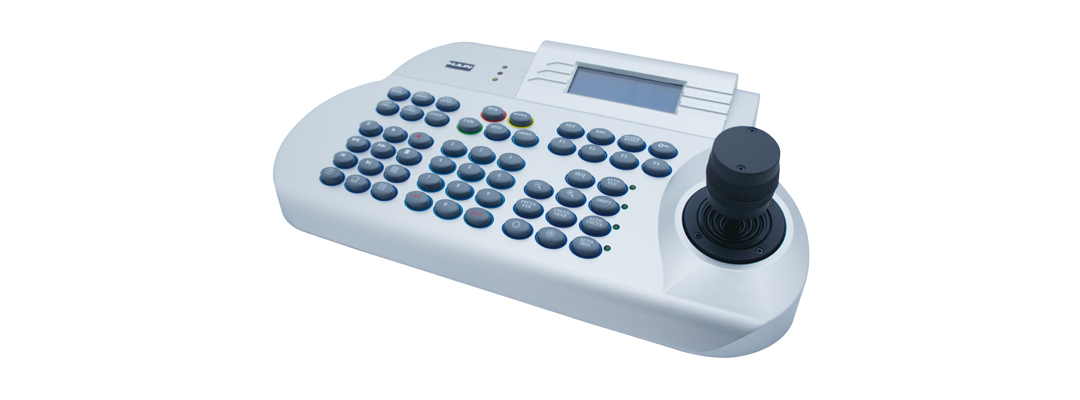

Multi-functional 3D Keyboard Controller
Model：PIH-931D
- RJ-45 Connector
- User interface
- Up to 8 keyboards
- 4 main key functions(DVR,Monitor,Cameras,Matrices)
The PIH-931D is a keyboard controller for a range of matrix switchers, dome cameras, DVR and telemetry receivers. I t allows operation a l l the functions of equipment and provides a simple operator interface. When matrix is present in the system, up to 8 keyboards can be used. However, one of the keyboards must always be configured as the Master, having greater access to settings than the slaves. Data is transmitted via screened, twisted pair cables, usually in serial configuration. (RS-485)
Model
PIH-931D
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-Accessories | 2016-12-05 | 671KB | |
| Manual | PIH-931D Instruction Manual | 2014-07-30 | 4,932KB |
