Products

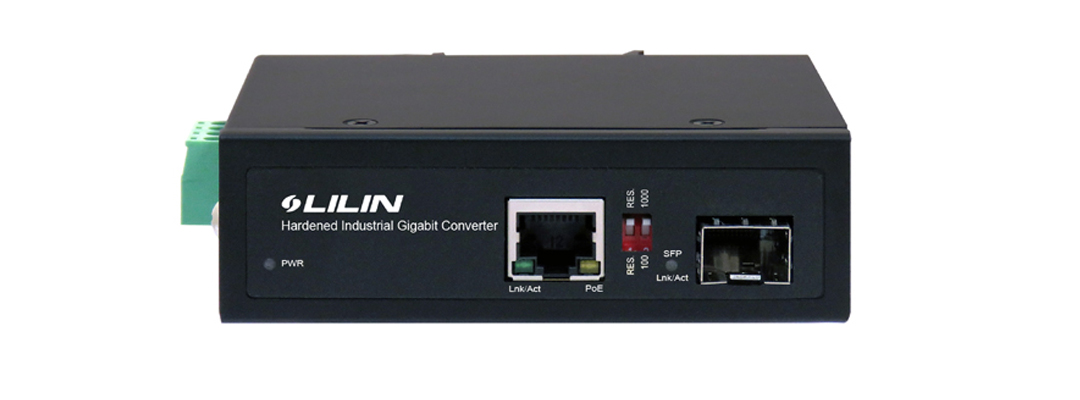

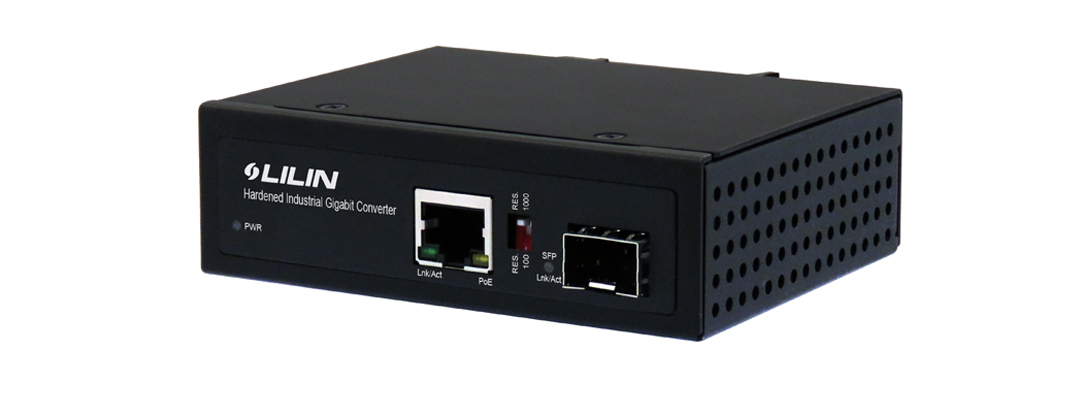

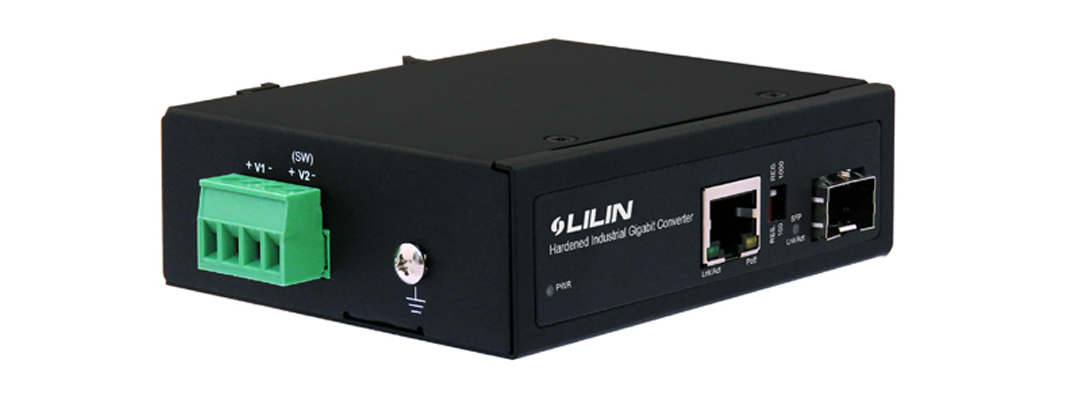

Gigabit PoE Media Converter
Model：PC3019F
- Industrial 30W Hardened Gigabit POE converter
- Designed with hardened Marvell IC
- 1x10/100/1000M 30W PSE (supports 802.3af/at) TX + 100/1000M SFP
- 48-56VDC, Operating temp: -40°C to +75°C
This Rugged 30 Watts Industrial POE converter is designed with hardened Marvell IC, It delivers 30Watts POE power and can tolerate extreme temperature in a harsh environment. Our ColdDesign technology will not only power up your PD device, also reduce the excessive heat problem to a minimum. It accepts the input voltage from 48VDC to 56VDC to meet IEEE802.3af / at required voltage . It is being rigorously tested for your Security , Transportation and Telco application.
Model
PC3019F
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Manual | PC3019F User Manual | 2017-08-25 | 6,813KB | |
| Catalogue | Catalogue-PC3019F | 2016-12-07 | 441KB | |
| Image | High-Resolution Image | 752KB |
-
