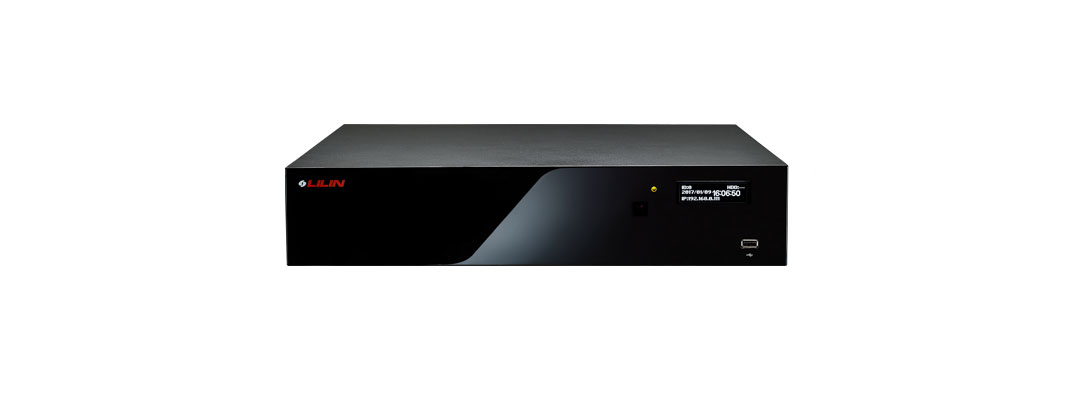

32 CH 4K Standalone Network Video Recorder
Model:NVR5832 (Limited stock)
- 32 Channel H.264/H.265 network camera Input
- Up to 4K H.264/H.265 network camera support
- Up to 1080P 120 FPS network camera support
- Internal HDD up to 12TB supported
- 19”2U Rack mount
- External e-SATA storage supported
- HDMI 2.0 ( 4K 60P ) / VGA 1080P output
- HDMI / VGA main or spot monitor switch
- Mobile phone ( iOS, Android ) solutions provided
- Network maximum input through up to 300Mbps
- Chrome, Edge, Firefox, IE, Opera, Safari supported
- Ethernet failure redundancy or sharing supported
The NVR5832 standalone NVR is a new generation of professional NVR series from LILIN. The NVR5832 supports up to 32 Ultra HD 4K IP cameras. Ultra HD (4K or 8 megapixels) is four times clearer than 1080p. Additional pixels allow you to see more details. The NVR5832 supports eight 8TB hard drives, and it has two eSATA connectors to expand 32TB. Through LILIN IPScan and WS-Discovery feature software, you can quickly set up a connection between the camera and the video recorder, making the NVR5832 network video recorder easier to use. NVR5832 is mainly used in the high-end megapixel surveillance market, such as medium and large enterprises and factories, restaurants, retail chains and intelligent buildings.
Model
NVR5832 (Limited stock)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Installation Guide | NVR 5-6 Series Installation Guide | 2021-06-08 | 1,454KB | |
Application Note | NVR and IP camera connection via HTTPs | 2021-04-28 | 2,485KB | |
Manual | 4K UHD Network Video Recorder NVR5832 / NVR5832S / NVR5104E / NVR5208E / NVR5416E / NVR5416 User Manual | 2021-04-27 | 5,497KB | |
Firmware | Firmware Version : 4.0.26.6038 | 2020-12-14 | 59,148KB | |
Application Note | NVR DVR HDD Support List | 2019-03-25 | 55KB | |
Catalogue | Catalogue NVR5832 | 2018-10-03 | 2,100KB | |
A&E | A&E NVR5832 | 2018-07-03 | 309KB |
