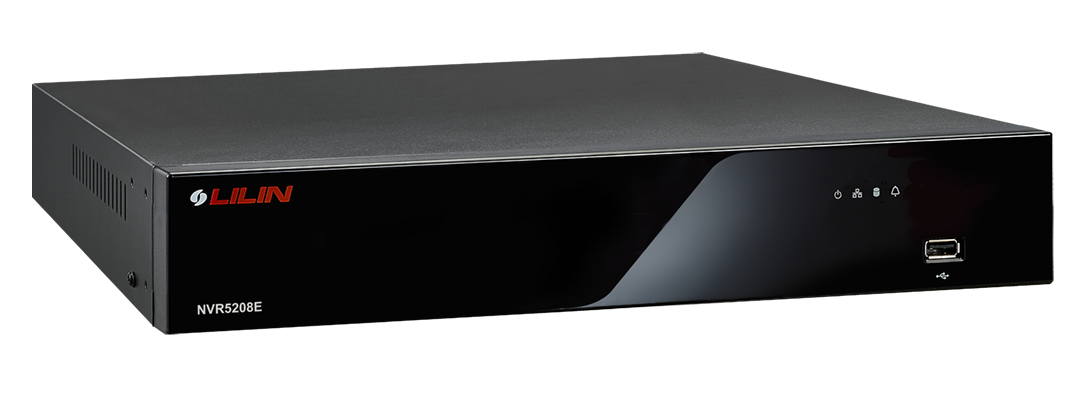

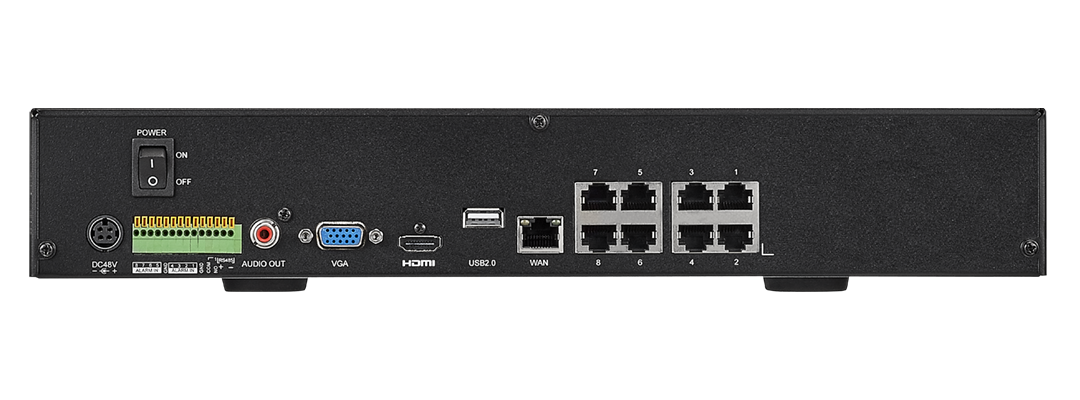

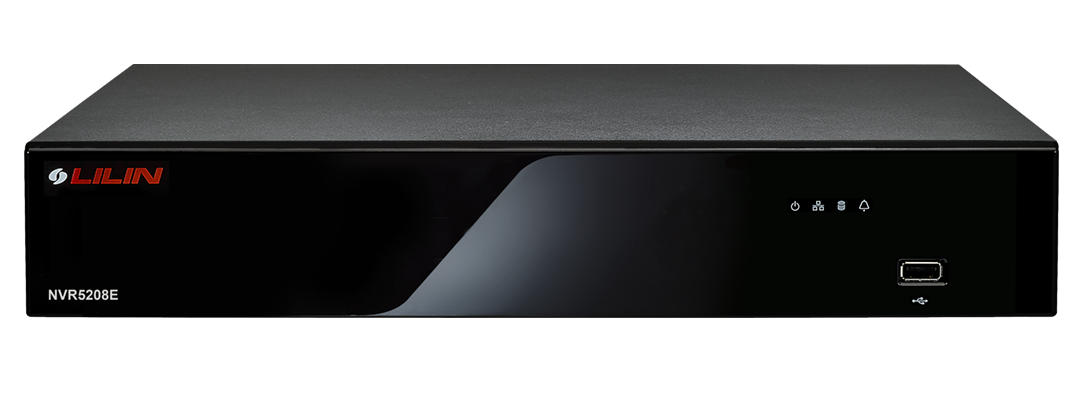

8 CH PoE 4K Standalone Network Video Recorder
Model:NVR5208E
- 8 Channel H.264/H.265 network camera Input
- Up to 4K H.264/H.265 network camera support
- Up to 1080P 60 FPS network camera support
- Internal HDD up to 12TB supported
- HDMI 2.0 4K 60P / VGA 1080P output
- P2P QR code UID connection for APP and Navigator
- 64Mbps Network maximum input through up to 64Mbps
- Mobile phone ( iOS, Android ) solutions provided
- 8 Port PoE, automatic network camera plug and play
- Chrome, Edge, Firefox, IE,
Opera, Safari supported
The NVR5208E standalone NVR is the next generation of LILIN professional PoE NVR series. No IP addresses’ configuration for cameras is needed. The NVR5208E is built-in PoE for powering PoE cameras. The NVR5208E supports up to 8 channels Ultra HD (4K) camera recording that the Ultra High Definition, 4K or 8 Megapixels video is four times clearer than traditional 1080p. Along with its low power consumption and all-in-one sleek design, the NVR5208E provides users a simple, affordable yet professional solution for megapixel surveillance in the mainstream markets such as SMBs, retail, hospitality, and intelligent buildings.
Model
NVR5208E
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Firmware | Firmware Version : 5.0.28.7318 | 2021-10-06 | 39,614KB | |
Installation Guide | NVR 5-6 Series Installation Guide | 2021-06-08 | 1,454KB | |
Application Note | NVR and IP camera connection via HTTPs | 2021-04-28 | 2,485KB | |
Manual | 4K UHD Network Video Recorder NVR5832 / NVR5832S / NVR5104E / NVR5208E / NVR5416E / NVR5416 User Manual | 2021-04-27 | 5,497KB | |
Catalogue | Catalogue NVR5208E | 2019-05-08 | 1,764KB | |
Application Note | NVR DVR HDD Support List | 2019-03-25 | 55KB | |
A&E | A&E NVR5208E | 2019-02-11 | 213KB |
-
