Products
H.264 1080P Real-time Multi-touch Vehicle Standalone NVR
Model：NVR408M (non-Hisilicon)
- GPS communications
- EN50155 certification – withstand severe shock and vibration
- Easy installation and rugged design
- Outstanding recording performance
- Suitable for public & commercial transportation applications
- Maintains superior performance even in the toughest conditions

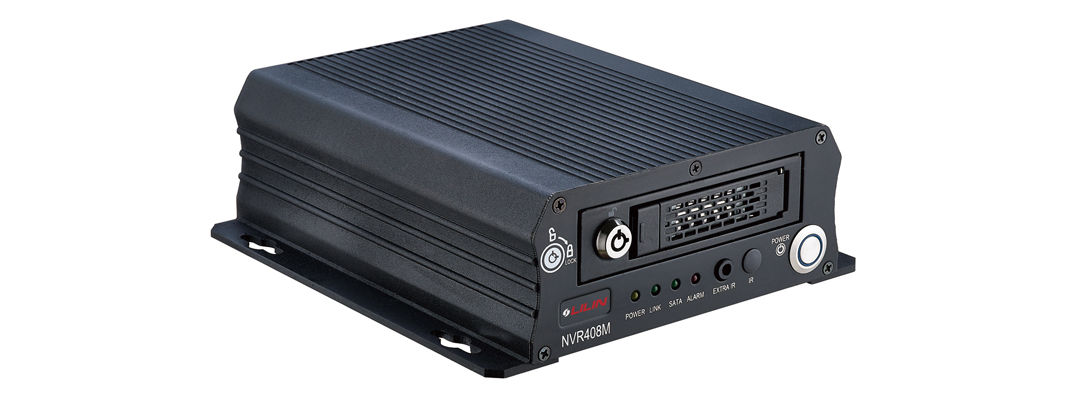

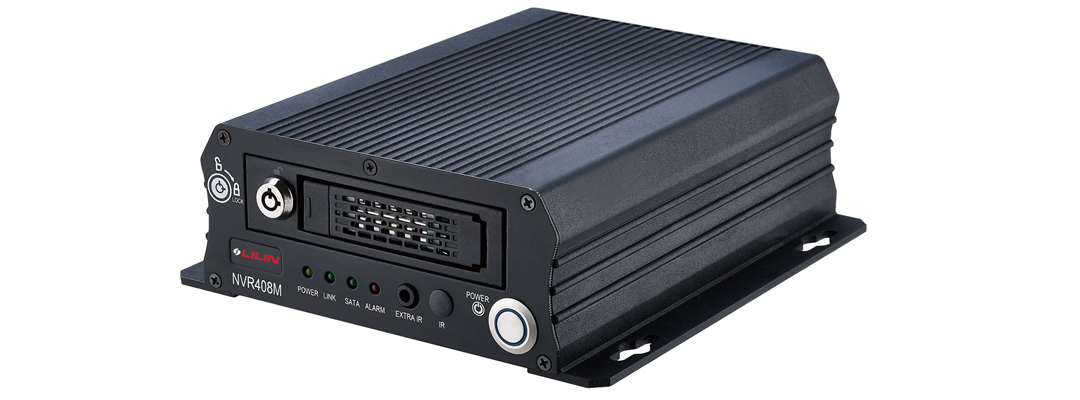

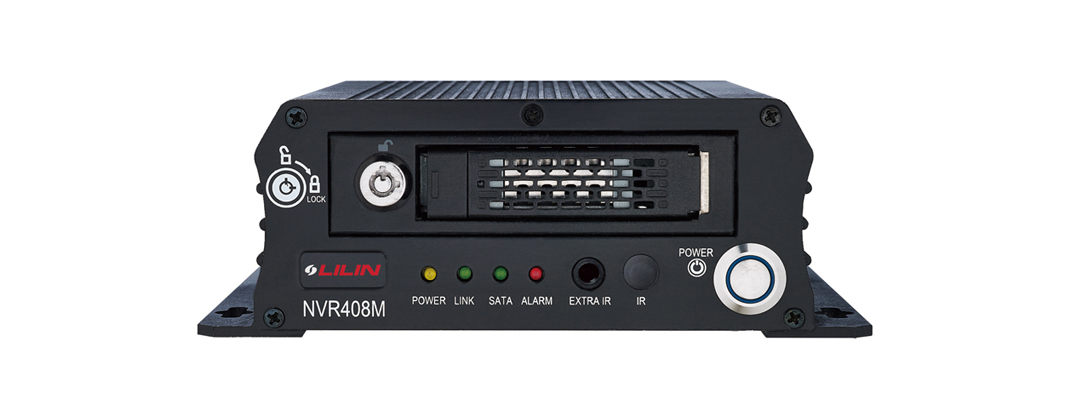

Mobile Network Video Recorder, NVR408M, is designed for use in moving vehicles, remote locations, or rugged environments working in harsh and demanding conditions to deliver quality video surveillance solutions. Rugged compact design with GPS navigation option available. Typical usage include trains, buses, trucks, cars, airplanes, ships, and other applications suiting law enforcement or public transport solutions. NVR408M is EN50155 certified product, which ensures the use of railway application and able to withstand severe vibration and shock.
Model
NVR408M (non-Hisilicon)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Application Note | NVR and IP camera connection via HTTPs | 2021-04-28 | 2,485KB | |
| Application Note | NVR DVR HDD Support List | 2019-03-25 | 55KB | |
| A&E | A&E NVR408M | 2018-07-03 | 274KB | |
| Catalogue | Catalogue NVR408M | 2016-12-06 | 2,420KB | |
| Application Note | How to connect P2P driver for NVR408m | 2016-09-11 | 1,196KB | |
| Firmware | Firmware Version:1.0.56 | 2015-12-18 | 32,092KB | |
| Manual | Instruction Manual NVR408M | 2014-11-13 | 27,975KB | |
| Manual | Instruction Manual NVR Touch Series | 2014-07-28 | 1,500KB | |
| Image | High-Resolution Image | 5,485KB |
