Products

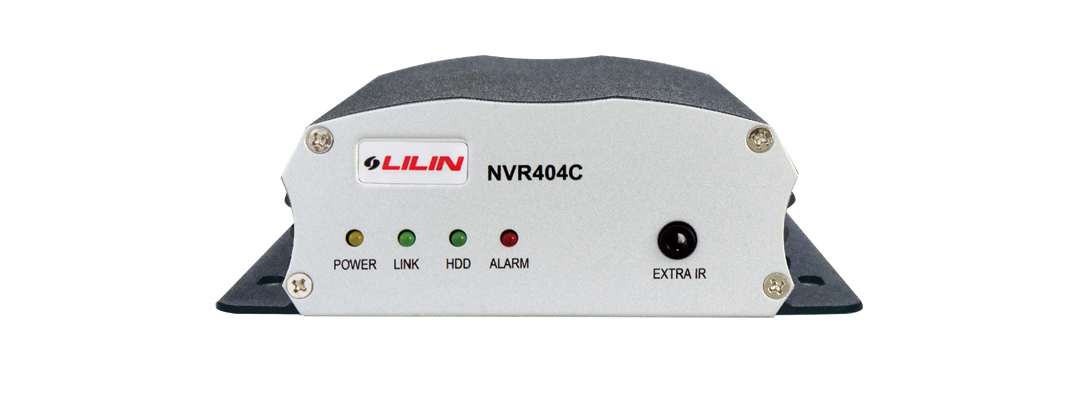

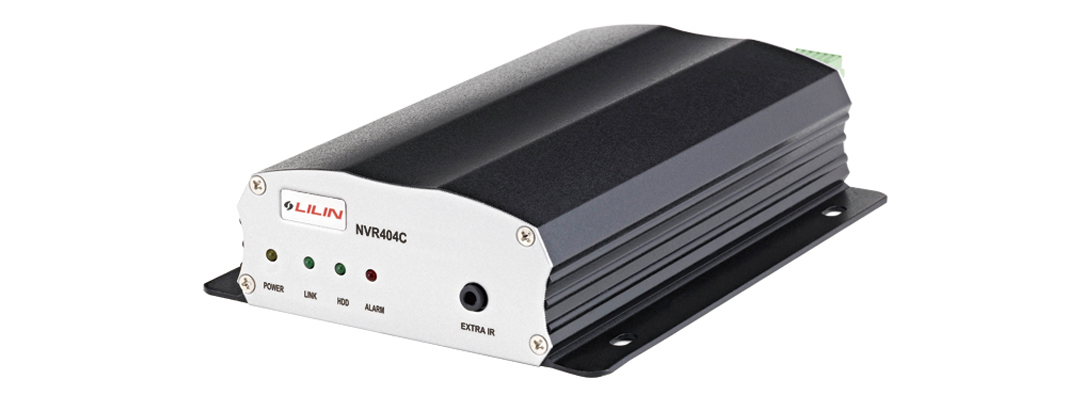

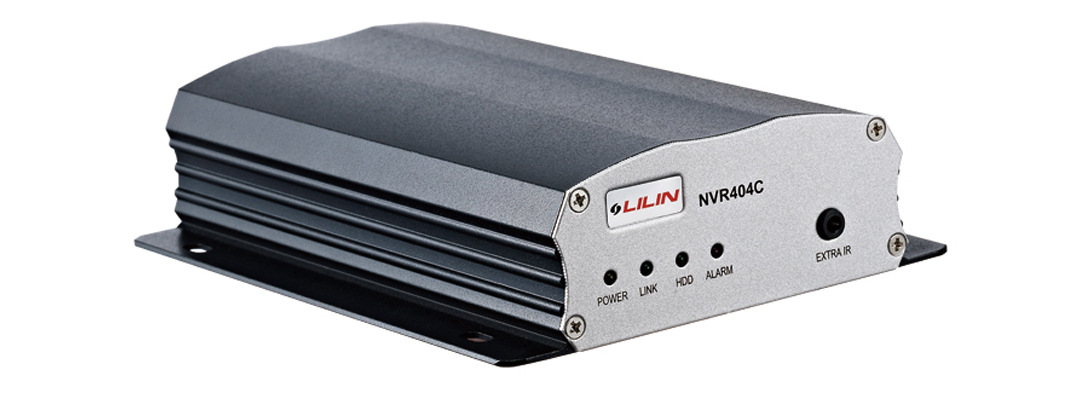

1080P real-time multi-touch portable 4 channel standalone NVR
Model：NVR404C-Not Hisilicon (Discontinued)
- Portable NVR
- Multi-touch screen supported
- 1080P 4 channel real-time NVR up to 24 Mbps throughput
- Full HD 1920×1080 output
- Support one 2.5" SATA or SSD HDD
- 3G mobile phone (iPhone, iPad, Androidand, and Blackberry) solutions provided.
- External USB DVD/RW.
- Navigator 1.0 supported.
Discontinued date
- 2019.02.20
Alternative models
- NVR100L / NVR200L / NVR400L
LILIN 1080P real-time multi-touch portable 4 channel standalone Network Video Recorder offering 25 frames per second for each channel at full 1080P resolution, touch screen, mouse, LILIN twist zoom keyboard or IR remote control, easy to navigate menus, support for 1 Solid State Hard Drive. Motion detection, weighted and scheduled recording. Audio recording, playback, WS discovery for easy network discovery, USB or network backup.
HDMI output, Full CMX support, web based remote viewing & iPhone, blackberry and android support. Portable NVR404c supports H.264 compression rate, and it is great for mobility type of transportations such as buses, trucks, trains, metro system, etc.
Model
NVR404C-Not Hisilicon (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Application Note | NVR DVR HDD Support List | 2019-03-25 | 55KB | |
| A&E | A&E NVR404C | 2018-07-03 | 212KB | |
| Catalogue | Catalogue NVR404C | 2016-12-06 | 2,359KB | |
| Firmware | Firmware Version:1.0.56 | 2015-12-18 | 32,159KB | |
| Manual | Instruction Manual NVR408M | 2014-11-13 | 27,975KB | |
| Manual | Instruction Manual NVR Touch Series | 2014-07-28 | 1,500KB | |
| Manual | Instruction Manual NVR 404C Touch Series | 2014-07-25 | 11,989KB | |
| Image | High-Resolution Image | 5,485KB |
