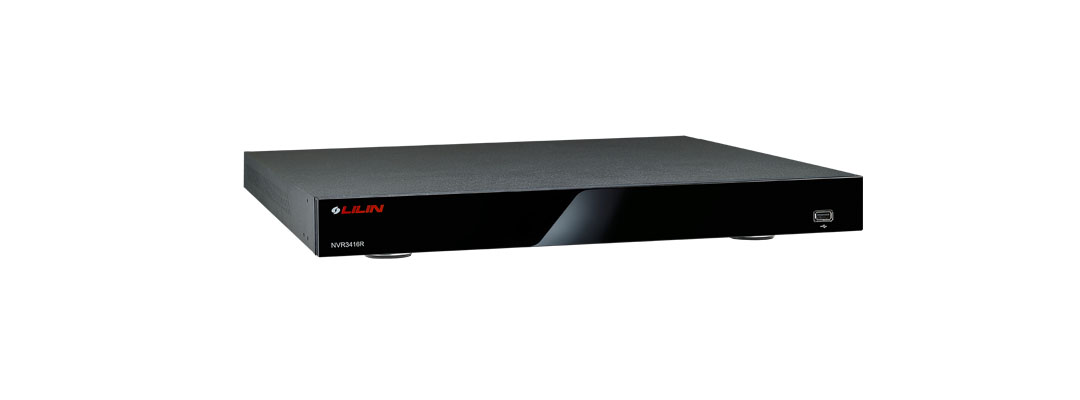

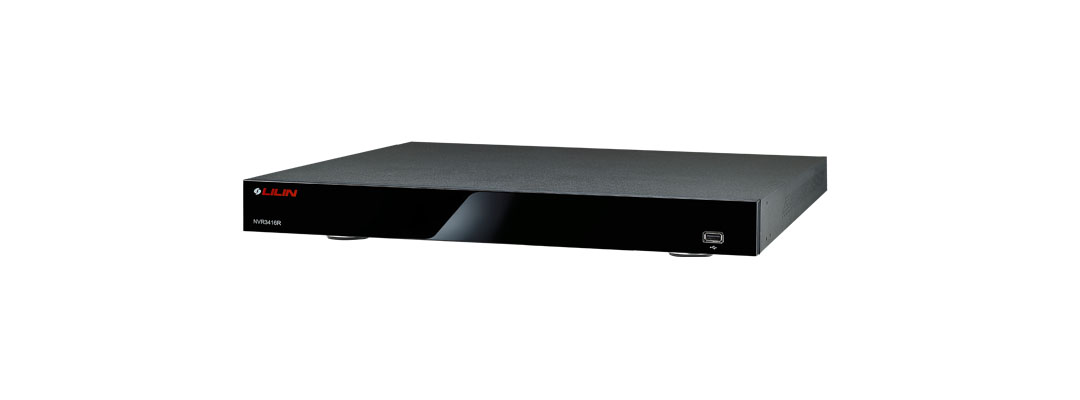

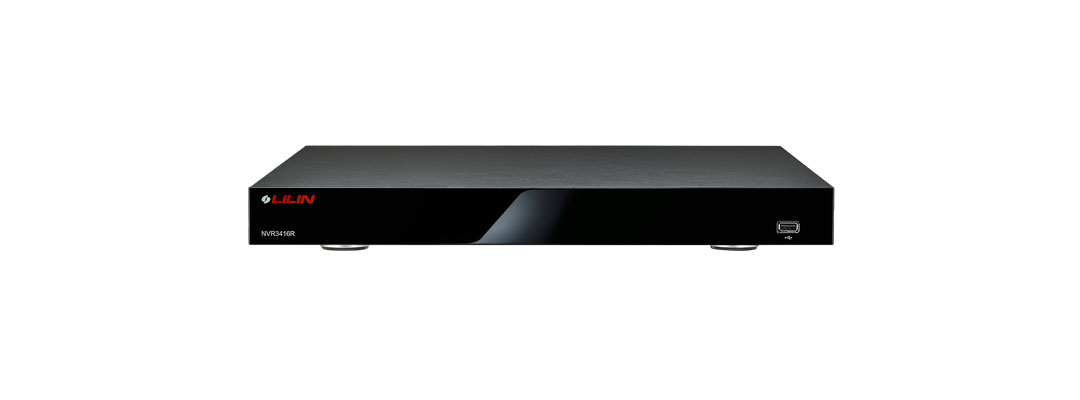

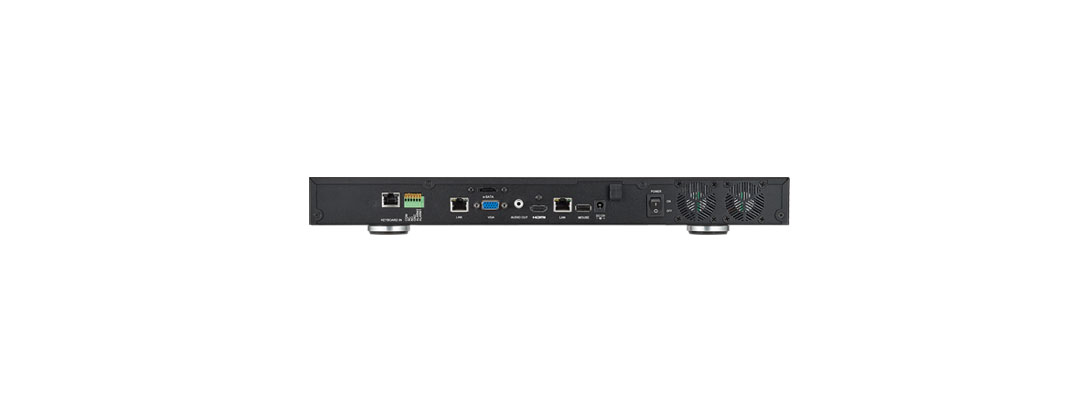

16CH 5MP 19”1U Rackmount Standalone Network Video Recorder
Model：NVR3416R (Discontinued)
- 16 Channel network camera Input
- Up to 5mega pixel H.264 network camera support
- Up to 1080P 60 FPS network camera support
- Internal HDD up to 8TB supported
- 19”1U Rack mount
- External e-SATA storage supported
- HDMI and VGA output up to 1920×1080P
- HDMI / VGA main or spot monitor switch
- Mobile phone ( iOS, Android ) solutions provided
- Network maximum input through up to 96Mbps
- Chrome, Edge, Firefox, IE, Opera, Safari supported
Discontinued date
- 2020.12.31
Alternative models
- NVR3816 or NVR5416E
NVR3416R is a LILIN’s 16CH NVR, suitable for different environment. With ARM Cortex A9 dual-core processor, the network output is up to 144 Mbps (upward output is up to 96Mbps and download output is 48Mbps). Through LILIN’s IPScan and WS-Discovery software, users will be able to constantly connect NVR3416R with the IP camera, simplifying its usage. It also features with VGA and HDMI Output（Full HD, 1,920 x 1,080）, and packed with a mouse and a keyboard. It is definitely the first and best choice for middle-sized enterprise when choosing NVR product.
Model
NVR3416R (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Manual | User Manual NVR 3 Series | 2019-11-20 | 5,321KB | |
| Firmware | Firmware Version 3.0.76.3921 | 2019-08-02 | 51,074KB | |
| Application Note | NVR DVR HDD Support List | 2019-03-25 | 55KB | |
| Catalogue | Catalogue NVR3416R | 2018-10-03 | 1,490KB | |
| A&E | A&E NVR3416R | 2018-07-03 | 297KB | |
| Manual | NVR3416R&NVR 3 Series Quick Manual | 2017-07-25 | 1,108KB |
