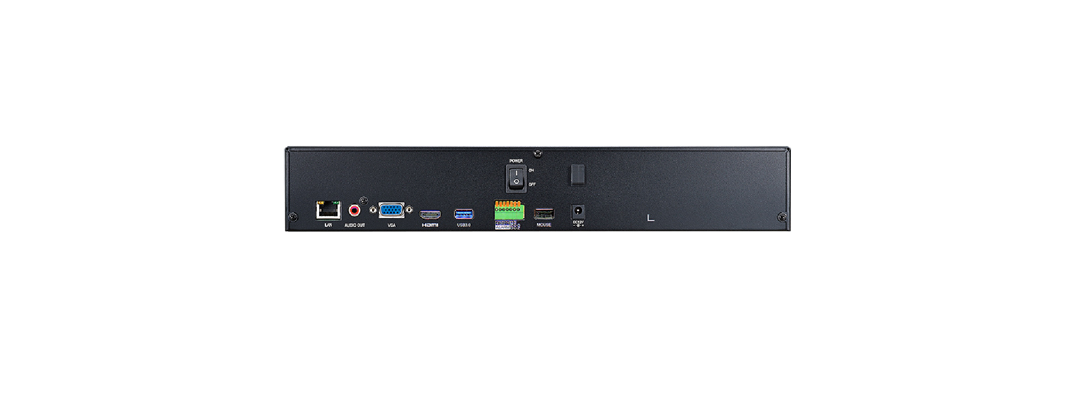

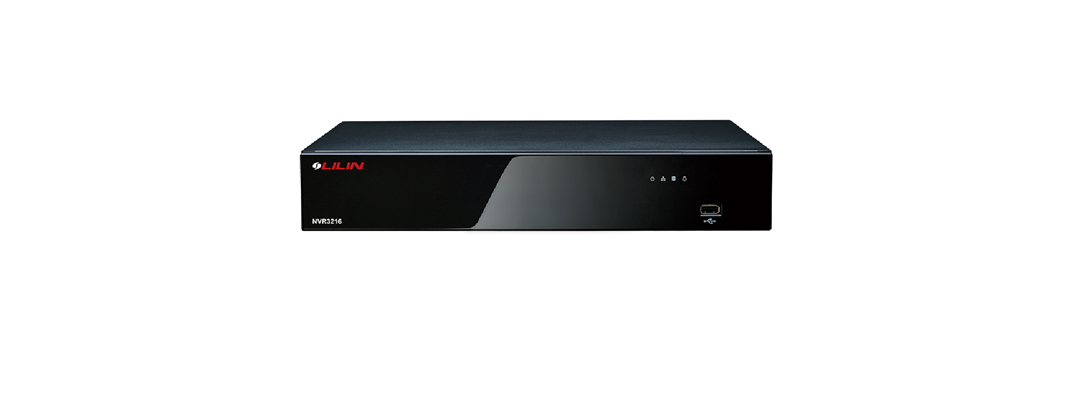

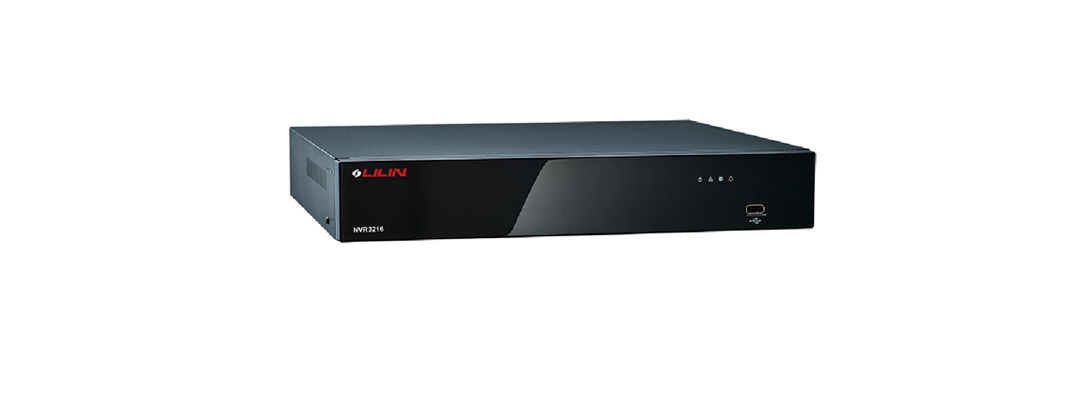

16 CH 5Mega 2HDD Standalone Network Video Recorder
Model：NVR3216 (Limited stock)
- 16 Channel network camera Input
- Up to 5mega pixel H.264 network camera support
- Up to 1080P 60 FPS network camera support
- Internal HDD up to 8TB supported
- HDMI and VGA output up to 1920×1080P
- Mobile phone ( iOS, Android ) solutions provided
- Network maximum input through up to 96Mbps
- Chrome, Edge, Firefox, IE, Opera, Safari supported
LILIN NVR3216 is a 16-channel NVR (Network Video Recorder) designed for various recording applications. The system is equipped with an ARM Cortex A9 Dual-core processor with maximum recording throughput at 144Mbps (incoming 96Mbps, outgoing 48Mbps). Parameters such as IP address and basic IP camera configurations can easily be adjusted with the LILIN setup wizard ~ IPScan and WS-Discovery, making the NVR3216 the easiest NVR system to use. With local VGA and HDMI display (with Full HD resolution at 1,920 x 1,080) and mouse and keyboard input available, configuring LILIN NVR is simple ~ an answer to meet most SMB owners’ security needs.
Model
NVR3216 (Limited stock)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Application Note | NVR and IP camera connection via HTTPs | 2021-04-28 | 2,485KB | |
| Manual | User Manual NVR 3 Series | 2019-11-20 | 5,321KB | |
| Firmware | Firmware Version 3.0.74.3921 | 2019-08-02 | 52,619KB | |
| Application Note | NVR DVR HDD Support List | 2019-03-25 | 55KB | |
| A&E | A&E NVR3216 | 2018-07-03 | 280KB | |
| Catalogue | Catalogue NVR3216 | 2017-10-27 | 1,589KB | |
| Manual | NVR3416R&NVR 3 Series Quick Manual | 2017-07-25 | 1,108KB |
-
