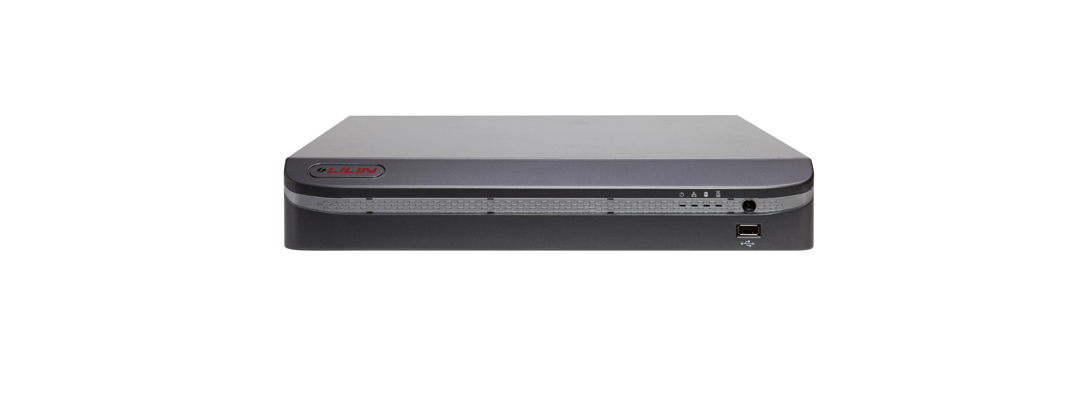

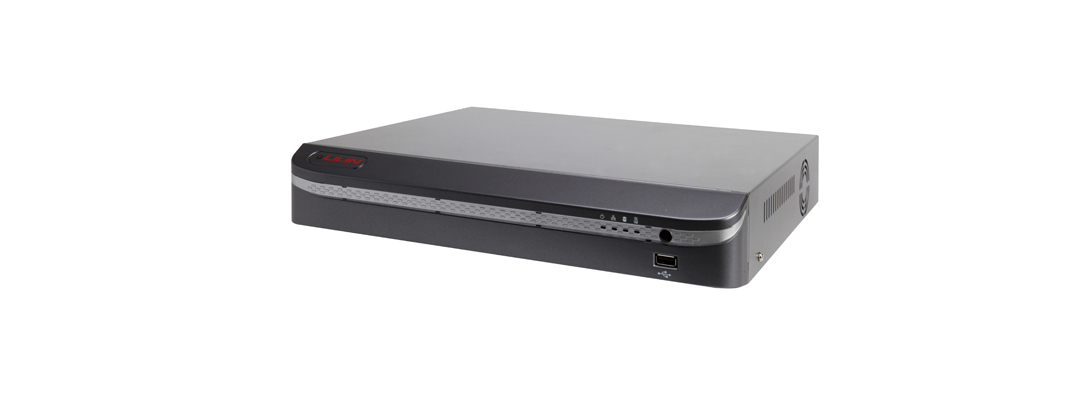

1080P Real-time Multi-touch 4 Channel Standalone NVR
Model：NVR104 (Discontinued)
- Multi-touch screen supported
- 1080P 4 channel real-time NVR up to 24 Mbps throughput
- Full HD 1920×1080 output
- Support 2 SATA HDDs, 1 eSATA
- 3G mobile phone (iPhone, iPad, Black Berry and Android) solutions provided.
- External USB DVD/RW.
- Navigator 1.0 supported.
NVR104 is a 4-channel IP standalone Network Video Recorder offering 25 frames per second for each channel at a full 1080P resolution. Touch screen, mouse, LILIN twist zoom keyboard or IR remote control, easy to navigate menus, supporting 2 SATA hard drives, motion detection, weighted and scheduled recording. Audio recording and playback. WS discovery for easy network discovery. USB or network backup. HD output. Full CMX support, web based remote viewing & iPhone, Blackberry and Android support. Multi-touch screen supported.
The touch-screen increases operator speed and minimizes the time taken to learn the system. The NVR 104 also has an automated installation wizard (WS Discovery) which locates all the cameras on the network and imports a preview picture of each channel to help with identification. The NVR Touch offers a superb standalone solution for managing and recording IP cameras.
Model
NVR104 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue NVR104 | 2017-03-06 | 395KB | |
| Firmware | Firmware Version:1.0.56 | 2015-12-18 | 37,305KB | |
| Manual | Instruction Manual NVR Touch Series | 2014-07-28 | 1,500KB | |
| Image | High-Resolution Image | 4,657KB |
-
