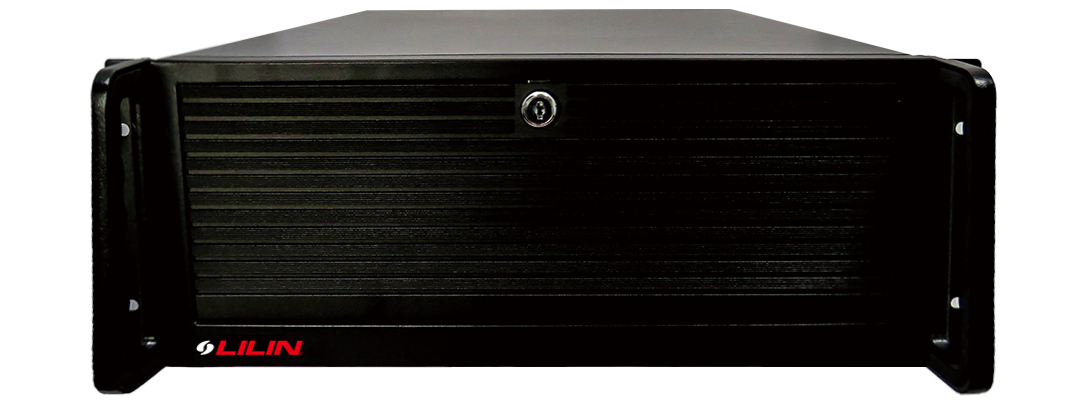

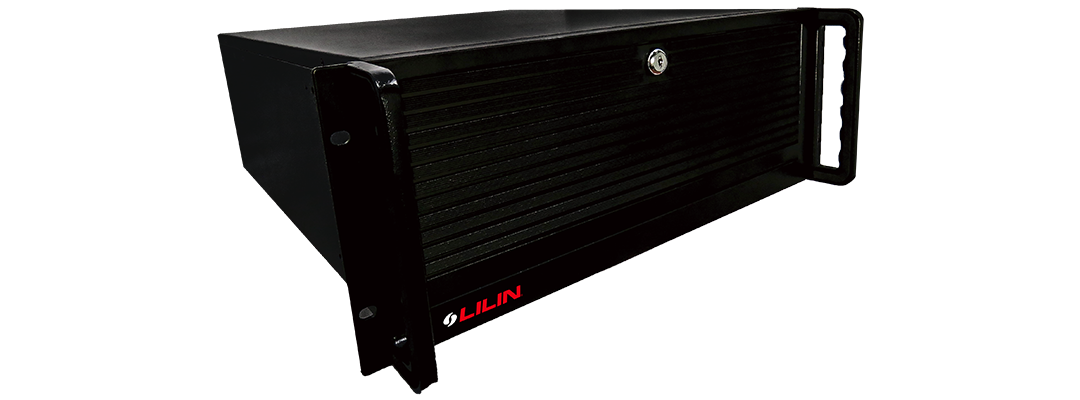

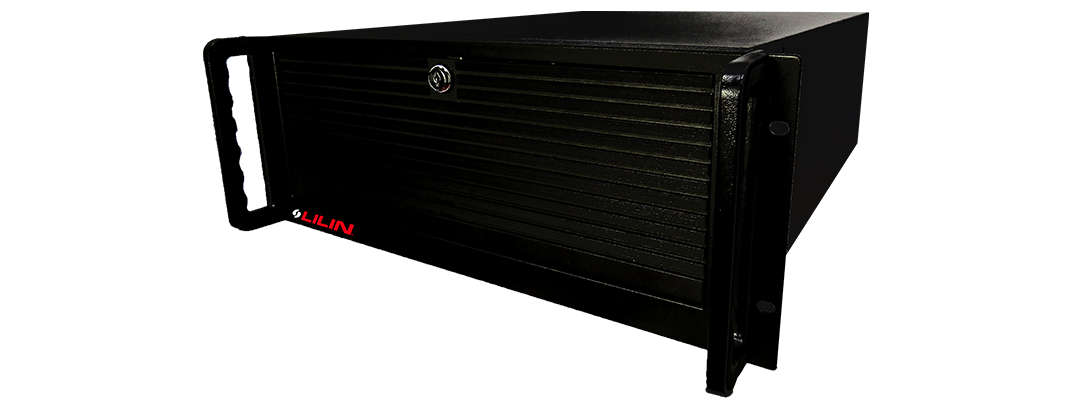

NTS 96CH Decoder
Model：NTS1004 (Limited stock)
- built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- built-in 1 × 1TB 3.5 Inch SATA HDD (recording)
- Support up to 2 x 3.5 Inch SATA HDD
- Dual streaming decoding mode supported
- 4 monitors support up to 96 channels in total (480P 15fps)
- Built-in Gigabit Ethernet port RJ-45 x1
- Built-in 800W Power Supply
- 4U dimension for standard cabinet
LILIN NTS1004 is our new TVWALL display server, it can support up to 4 monitor displays with a total of number of channels of 96. Combined with our Navigator Software and NCC software, it supports LILIN IP cameras, PTZ dome IP cameras, DVR, NVR, NAV Recording server as well as AVI file and RTSP stream. It also supports cross monitor function. It helps you to achieve not just a single video display, but multiple input multiple output solution perfect for security company that need to monitor sensitive site 24hours. Via this display server, it can also be used as a digital signage device, so the end user can decide which video to play on which monitor, ideal for a department store or airport.
Model
NTS1004 (Limited stock)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue NTS1004 | 2021-08-11 | 918KB | |
| Software | Navigator Control Center Version 2.0.0.210 | 2020-01-07 | 230,180KB | |
| Software | Navigator Software Version 2.0.0.210 | 2020-01-07 | 305,774KB | |
| Manual | Navigator Control Center and Navigator Client User Manual | 2018-11-27 | 5,215KB | |
| Manual | Navigator 2.0 User Manual | 2018-10-23 | 5,564KB |
