NAV Control Server
Model：NCS3600
- Up to 36 channels 1080P/3M/4M/5M/8M/12M Network streaming, recording
- built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- Support up to 3 x 3.5 Inch SATA HDD (recording)
- Dual streaming decoding mode supported
- 1 monitor support up to 36 channels in total (480P 15fps)
- Support multi-channels synchronized playback (remote or local)
- Support Fisheye camera dewarping

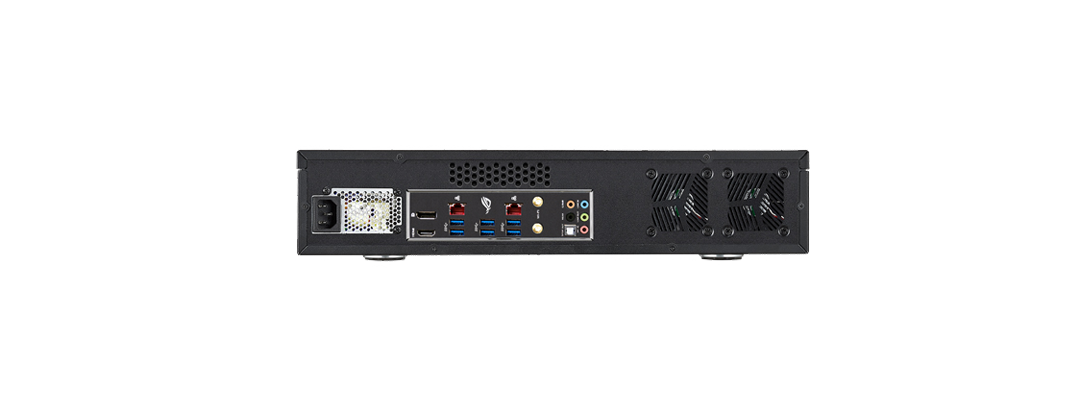

- Built-in dual port Gigabit Ethernet, RJ-45 × 2
- Built-in 500W Power Supply
- 2U dimension for rackmount cabinet

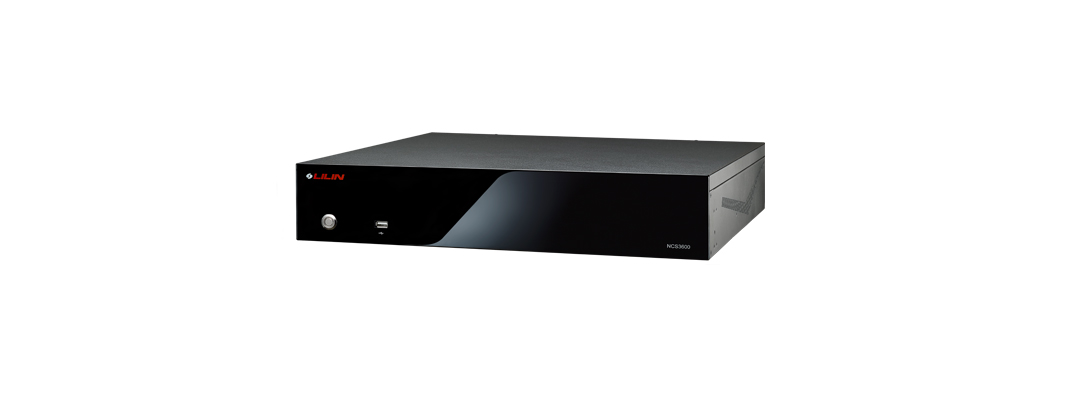

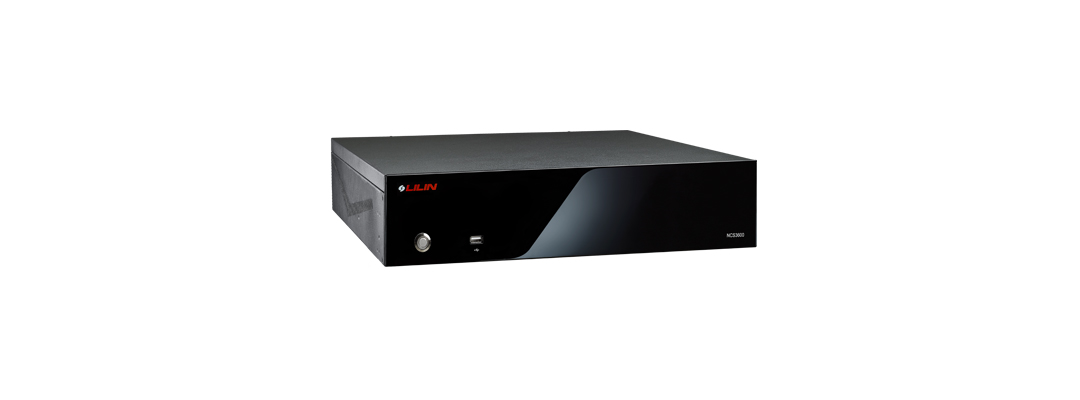

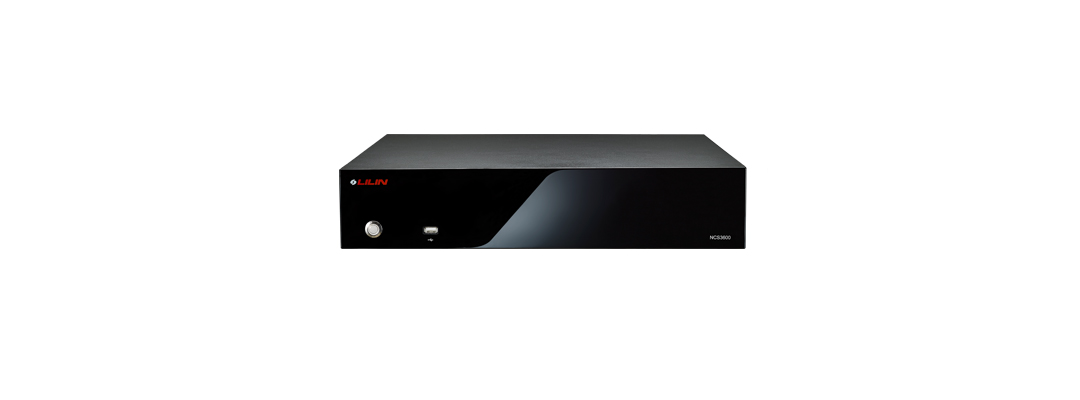

LILIN NCS3600 36 channels Recorder supports LILIN IP cameras, PTZ dome IP cameras, DVRs, and NVRs. The recorder features up to 36 channels 1080P/3M/4M/5M/8M/12M Network streaming, recording
It is built-in dual port Gigabit Ethernet, and dual monitors. It also supports multi-channels playback for remote or local NAV
NCS3600 is capable of supporting continuous and schedule recordings.
NCC Viewer Manager 3.0 can manage LILIN Navigator Corporate servers, NVRs, and DVRs.
NCC Viewer Manager include remote live monitoring, remote video playback, remote video backup, remove device status report, PTZ control, and user authentication.
Model
NCS3600
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Manual | Navigator Control Center 3.0 and Navigator Client 3.0 User Manual | 2021-10-21 | 10,166KB | |
| Catalogue | Catalogue NCS3600 | 2021-08-11 | 703KB | |
| Manual | Navigator 3.0 User Manual | 2021-01-29 | 7,679KB |
