Navigator Control Center 2.0
Model：NAV Control Center (Discontinue)
- Hierarchical management for up to 4096 Navigator Corporate servers
- Centralized user management database up to 512 user groups and 1000 users per group
- Centralized view groups management database for Navigator Clients up to 144 channels per group
- Pre-configured video groupings for user login
- Remote multiple channels playback and backup
- Centralized event, alarm, and operation status report management for Navigator servers
- Remote device management under Navigator servers
- Network Mosaic TV wall for up to 1440 remote monitors
- e-Map live monitoring with Google Map and Baidu Map supported

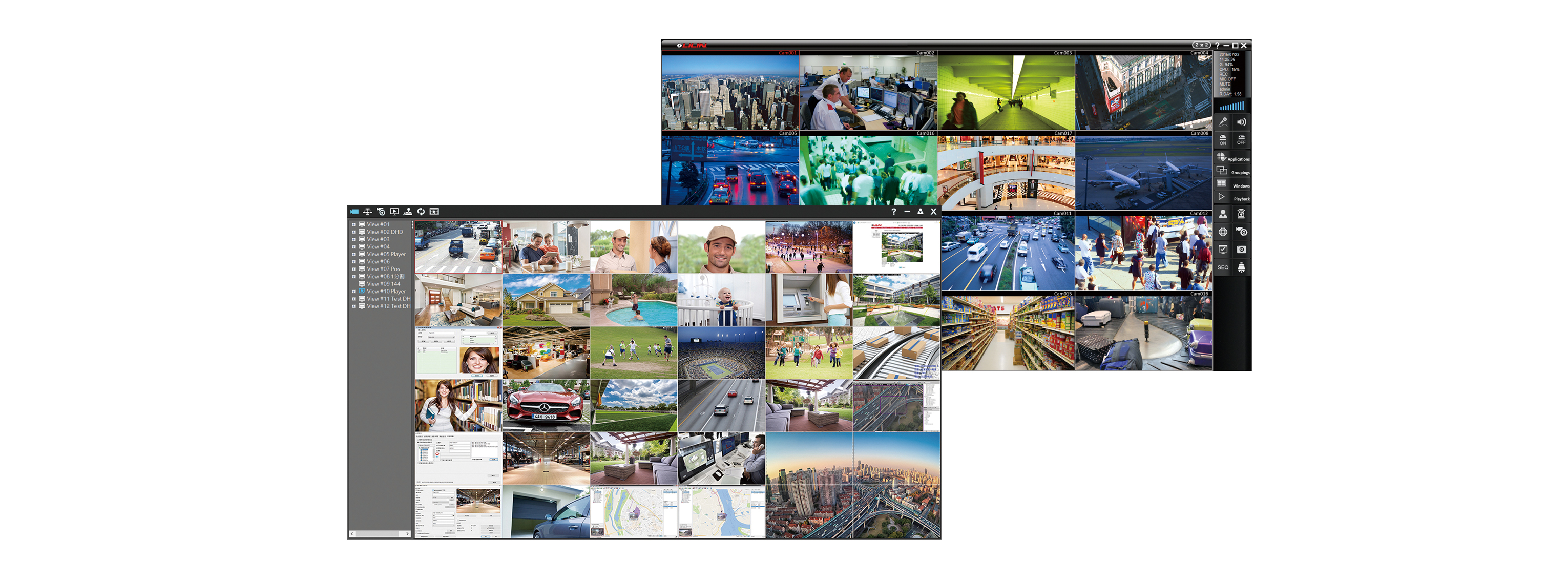

The LILIN Navigator Control Center is integrated security management software that can be used in central monitoring station. It can control up to 4,096 NAV servers, display multiple windows at the same time (up to 144 cameras each) and build a customized TVwall with alarm hack notify. It also include some intelligent video analytics functions to reduce fake alarm occurs during monitoring.
Model
NAV Control Center (Discontinue)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Software | Navigator Control Center Version 2.0.0.210 | 2020-01-07 | 230,180KB | |
| Manual | Navigator Control Center and Navigator Client User Manual | 2018-11-27 | 5,215KB | |
| Catalogue | Catalogue-NAV 2.0 Control Center | 2018-03-20 | 230KB |
