Products

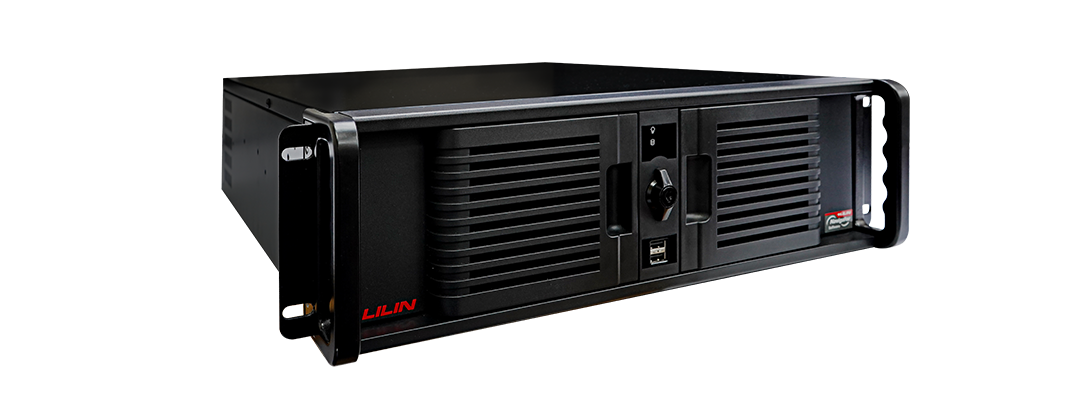

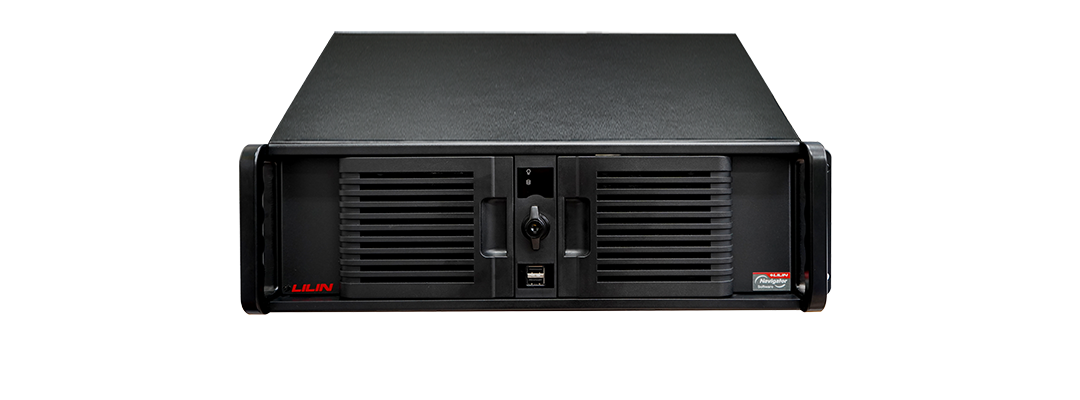

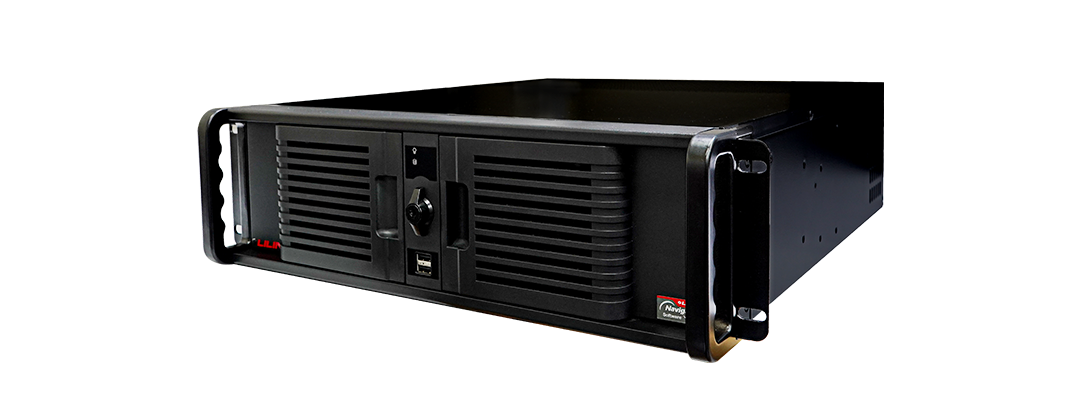

Aida Server
Model：NAV3400AI
- Support 4 channels for AIDA recognition
- Number plate recognition (optional)
- Traffic management (optional)
- Car mark recognition (optional)
- Face & mask detection (optional)
- Up to 4 channels 1080P network streaming, recording, and display
- built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- built-in 1 × 1TB 3.5 Inch SATA HDD (recording)
- Support up to 2 x 3.5 Inch SATA HDD
- Dual streaming decoding mode supported
- 1 monitor supported, up to 4 channels video display
- 3U dimension for rackmount cabinet
- Possible to combine different engine in same server
- 8 Aida power per server
LILIN NAV3400AI Aida Server is a 4 channels 3U server that can support up to 3 AI engine at the same time. It provides 8 AIDA Processing Power that can be allocate by user according to its purpose.Through our Navigator software user will be able to search the video by category, doing playback and also do backup.
Model
NAV3400AI
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue NAV3400AI | 2021-08-11 | 1,054KB | |
| Manual | Manual Aida ANPR | 2021-06-30 | 7,917KB |
