• ONVIF Profile S, LILIN IP cameras, PTZ domes, and DVRs/NVRs & NAV are supported.
• Up to 108 channels 1080P/3M/4M/5M/8M Network streaming, recording, and display

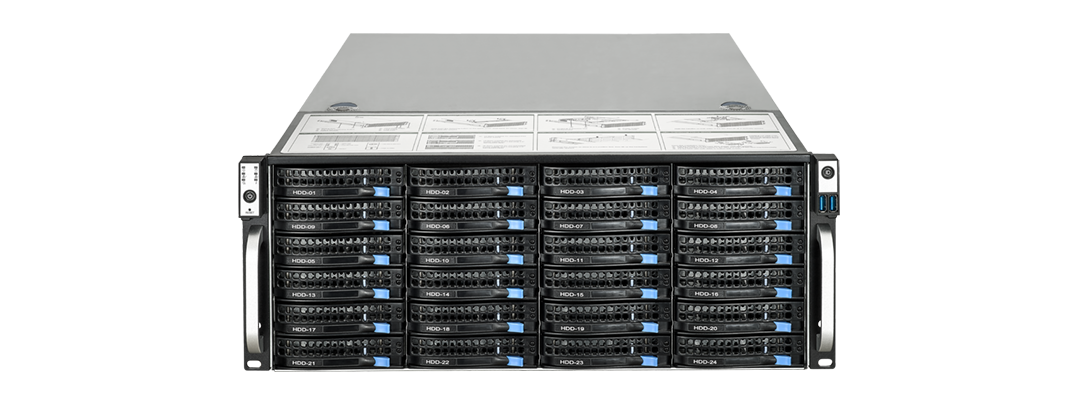

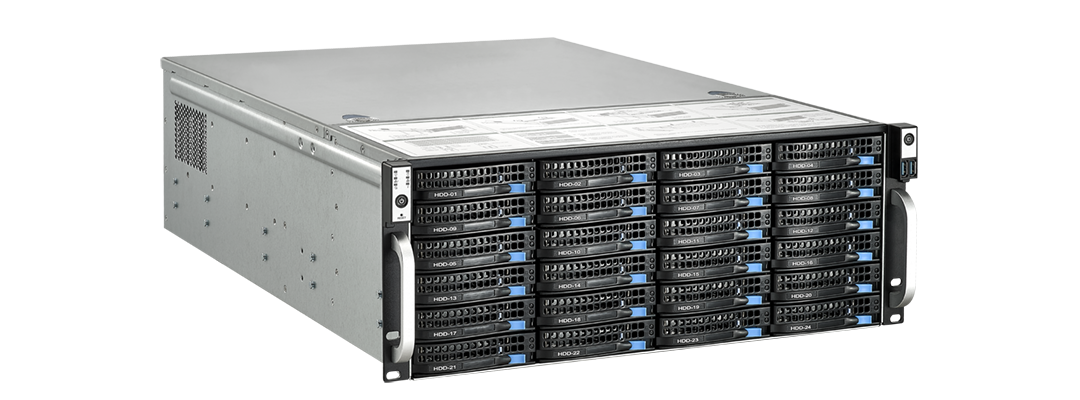

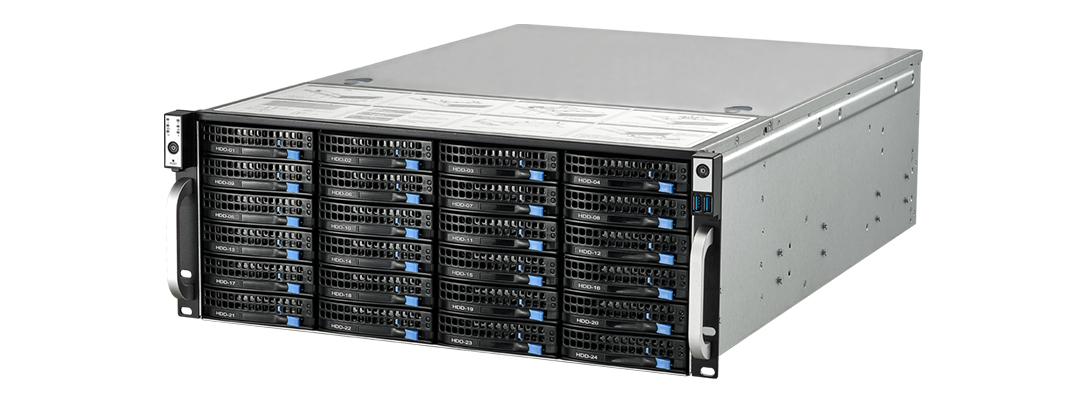

• 4U 19” chassis, built-in hardware RAID system, support up to 24 x 3.5” hot-swap HDDs.
• Failover, video archive, record file sync. and SmartSearch support.
• Dual streaming decoding mode supported.
• 4 monitors support up to 36 channels video display.
• Support multi-channels playback/record file backup for remote or local.
• Support image archiving mechanisms.

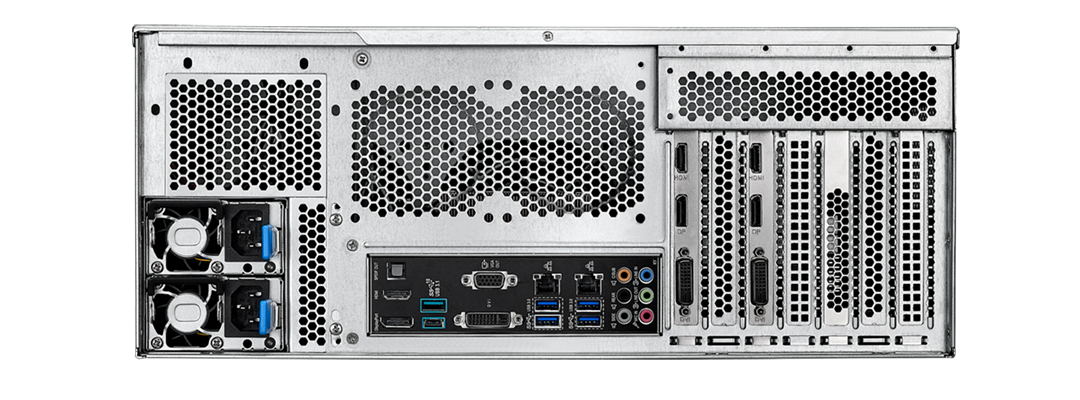

• Built-in dual port Gigabit Ethernet, RJ-45 × 2
• Redundant Power Supply.
• 4U dimension for standard cabinet.
• LSI SAS 9361-8i RAID

Discontinued date

• 2020.01.02

Alternative models

• NAV24072B / NAV24108B

LILIN NAV24108A 108-ch recorder supports LILIN IP cameras, PTZ
dome IP cameras, DVRs, and NVRs. The recorder features up to 108-
ch 1080P/3M/4M/5M/8M network streaming, recording, and display.
The recorder is equipped with hardware RAID. It has built-in dual port
Gigabit Ethernet and supports 4 monitors. Multi-channels playback for
remote or local NAV, failover, video archive, and video sync are
supported.
NAV24108A is capable of continuous and schedule recordings.
Supports alarm detections including motion, alarm, audio, IVS, and
ANPR (optional) for triggering various alarm outputs. NAV24108A also
support up to 1080P 120FPS and 4K 30FPS video streams.
Simultaneous playback for 36-ch, 4 monitors support, camera
groupings, authentication, two-way audio, and dual-streaming provide
extra flexibilities for the video management system. Supports the
flexibility of quickly adding devices easily.
