Aida Server
Model：NAV2400AI
- Support 4 channels for AIDA recognition
- Include one M.2 interface VPU Core (model number PMHXM2280)
- Number plate recognition (optional)
- Car mark recognition (optional)
- Up to 4 channels 1080P network streaming, recording, and display
- built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- built-in 1 × 1TB 3.5 Inch SATA HDD (recording)
- Support up to 2 x 3.5 Inch SATA HDD
- Dual streaming decoding mode supported
- 1 monitor supported, up to 4 channels video display

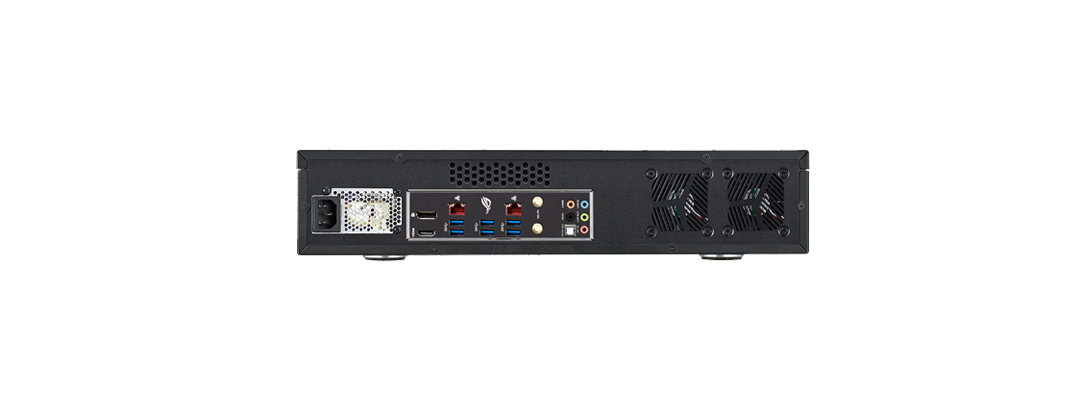

- Built-in dual port Gigabit Ethernet, RJ-45 × 2
- Built-in 500W Power Supply
- 2U dimension for rackmount cabinet
- Possible to combine different engine in same server
- 3 Aida power per server>

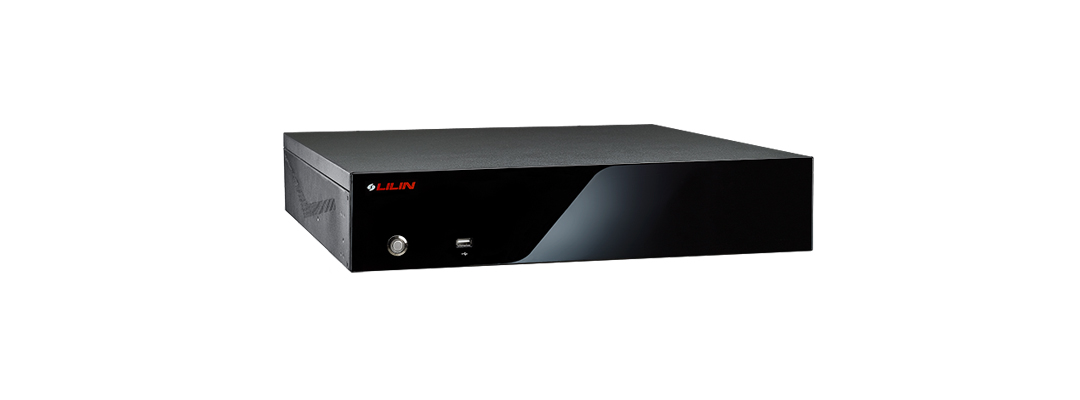

LILIN NAV2400AI Aida Server is a 4 channels 2U server that can support up to 2 AI engine at the same time. It provides 3 AIDA Processing Power that can be allocate by user according to its purpose. Through our Navigator software user will be able to search the video by category, doing playback and also do backup.
Model
NAV2400AI
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue NAV2400AI | 2021-08-11 | 729KB | |
| Manual | Manual Aida ANPR | 2021-06-30 | 7,917KB | |
| Application Note | NAV HDD Support List | 2020-11-16 | 669KB | |
| Software | Navigator Software Version 2.0.0.210 NAV2400AI_NAV2800AI_NAV3400AI_NAV5108AI | 2019-12-25 | 304,435KB | |
| A&E | A&E NAV2400AI | 2019-10-07 | 372KB |
