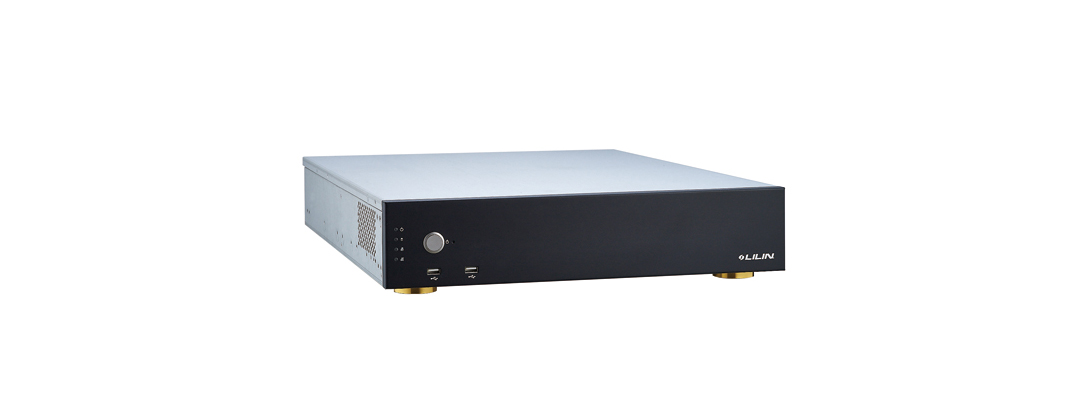

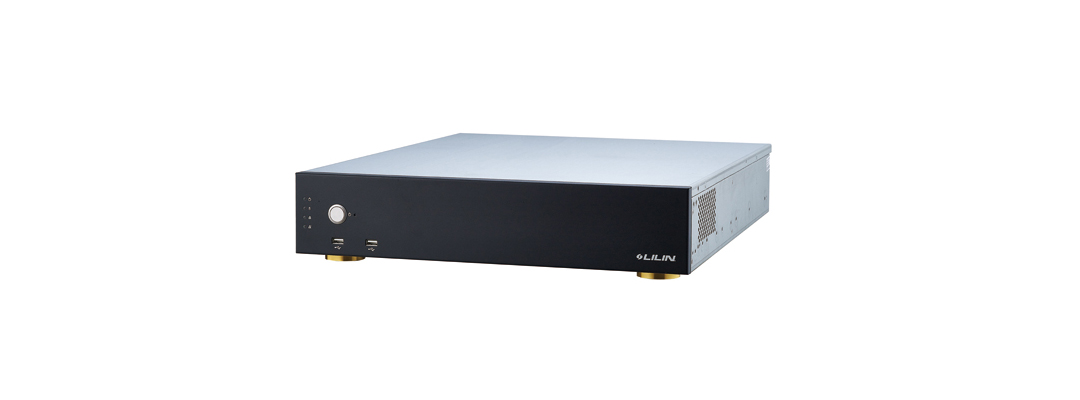

NAV 36CH Recorder
Model：NAV2036 (Discontinued)
- LILIN IP cameras, PTZ domes, and DVRs/NVRs are supported.
- Up to 36 channels 1080P/3M/5M/8M Network streaming, recording, and display
- 2U 19" chassis, built-in software RAID system, support up to 6 x 3.5" built-in HDDs.
- Dual streamings decoding mode supported
- Dual monitors support, up to 36 channels Video display.
- Achieving management and record file sync.
- Support multi-channels playback/record file backup for remote or local.
- Built-in dual port Gigabit Ethernet.
Discontinued date
- 2018.06.30
Alternative models
- NAV2036A
LILIN NAV 2036 36-channel recorder supports LILIN IP cameras, PTZ domes, and DVRs/NVRs. Up to 36 channels 1080P/3M/5M/8M network streaming, recording, and display. 2U 19" chassis, built-in software RAID system, support up to 6 x 3.5" built-in HDDs. video achieve, and SmartSearch support. Dual streaming decoding mode supported. Dual monitors support, up to 36 channels video display. Support multi-channels playback for remote or local. Built-in dual port Gigabit Ethernet. Recording resolutions are 3,840 x 2,160, 2592 x 1944, 2048 x 1536, 1920 x 1080, 1280 x 1024, etc. NAV 2036 supports audio recording, circular recording, limited recording, video archiving, low bitrate recording, and remote network RAID.
Model
NAV2036 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Application Note | NAV HDD Support List | 2020-11-16 | 669KB | |
| Software | Navigator Control Center Version 2.0.0.210 | 2020-01-07 | 230,180KB | |
| Software | Navigator Software Version 2.0.0.210 | 2020-01-07 | 305,774KB | |
| Manual | Navigator Control Center and Navigator Client User Manual | 2018-11-27 | 5,215KB | |
| Manual | Navigator 2.0 User Manual | 2018-10-23 | 5,564KB | |
| Catalogue | Catalogue-NAV 2.0 Corporate | 2018-04-30 | 519KB | |
| Catalogue | Catalogue-NAV 2.0 Control Center | 2018-03-20 | 230KB | |
| Catalogue | Catalogue NAV2036 | 2018-02-27 | 498KB | |
| A&E | NAV A&E | 2016-10-18 | 51KB | |
