• ONVIF Profile S, LILIN IP cameras, PTZ domes, and DVRs/NVRs are supported.
• Up to 72 channels 1080P/3M/4M/5M/8M Network streaming, recording, and display
• 3U 19” chassis, built-in hardware RAID system, support up to 16 x 3.5” hot-swap HDDs.
• Failover, video archive, record file sync. and SmartSearch support.
• Dual streaming decoding mode supported
• 2 monitors support up to 36 channels Video display.
• Support multi-channels playback/record file backup for remote or local.
• Support image archive mechanisms
• Built-in dual port Gigabit Ethernet.
• Redundant Power Supply.
• 3U dimension for standard cabinet.

Discontinued date

• 2020.01.02

Alternative models

• NAV1108B / NAV1072B

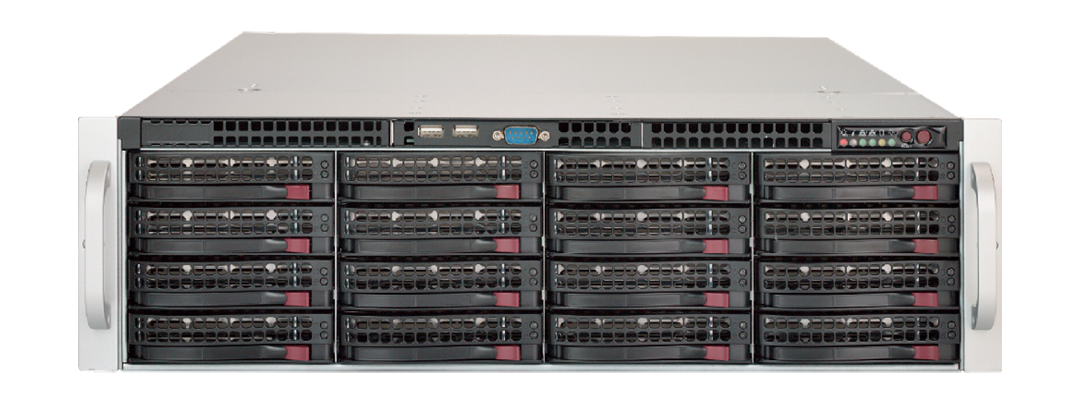

LILIN NAV1072A 72-ch recorder supports LILIN IP cameras, PTZ dome IP cameras, DVRs, and NVRs. The recorder features up to 72-ch 1080P/3M/4M/5M/8M network streaming, recording, and display.

The recorder is equipped with hardware RAID. It has built-in dual port Gigabit Ethernet and supports 2 monitors. Multi-channels playback for remote or local NAV, failover, video archive, and video sync are supported.

NAV1072A is capable of continuous and schedule recordings. Supports alarm detections including motion, alarm, audio, IVS, and ANPR (optional) for triggering various alarm outputs. NAV1072A also support up to 1080P 120FPS and 4K 30FPS video streams.

Simultaneous playback for 36-ch, 2 monitors support, camera groupings, authentication, two-way audio, and dual-streaming provide extra flexibilities for the video management system. Supports the flexibility of quickly adding devices easily.
