NAV 36CH Recorder
Model：NAV1036 (Discontinued)
- ONVIF Profile S, LILIN IP cameras, PTZ domes, and DVRs/NVRs are supported.
- Up to 36 channels 1080P/3M/5M/8M network streaming,recording, and display
- 2U 19" chassis, built-in hardware RAID system, support up to 8 x 3.5" hot-swap HDDs.
- Failover, video achieve, and SmartSearch support.
- Dual streamings decoding mode supported
- Dual monitors support, up to 36 channels video display.
- Support multi-channels playback for remote or local.
- Built-in dual port Gigabit Ethernet.
Discontinued date
- 2018.05.07
Alternative models
- NAV08036

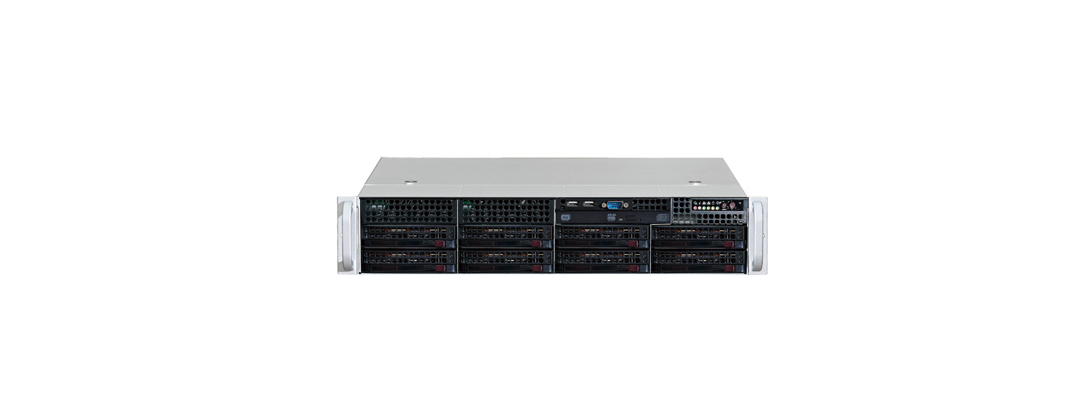

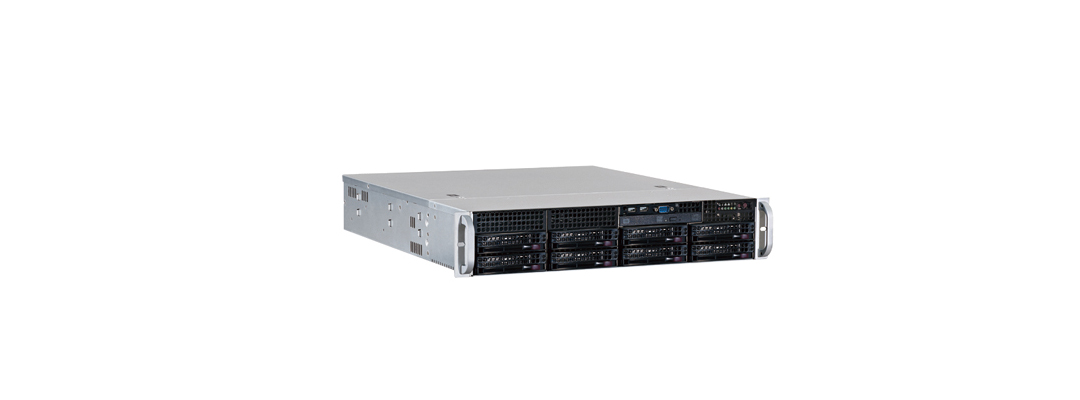

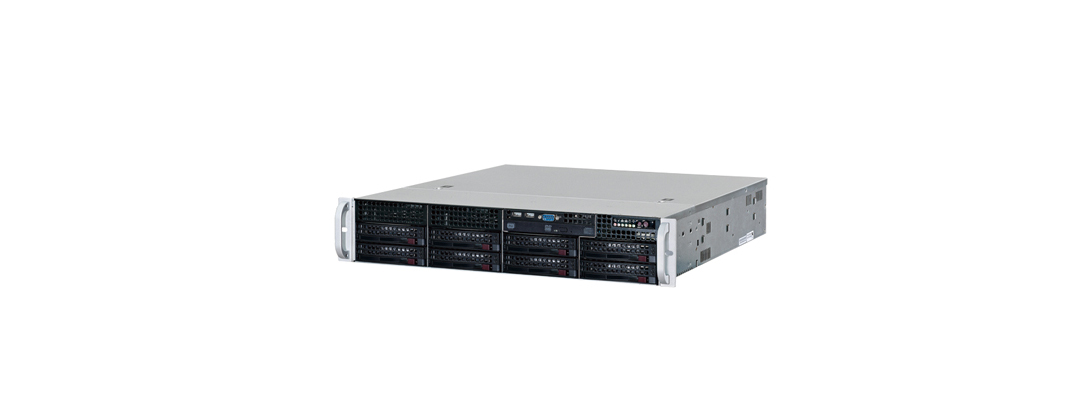

LILIN NAV1036 36-channel recorder supports LILIN IP cameras, fast domes, and DVRs/NVRs. Up to 36 channels 1080p/3M/5M/8M network streaming, recording, and display. 2U 19" chassis, built-in hardware RAID system, support up to 8 x 3.5" hot-swap HDDs. Failover, video achieve, and SmartSearch support. Dual streaming decoding mode supported.
Dual monitors support, up to 36 channels video display. Support multi-channels playback for remote or local. Built-in dual port Gigabit Ethernet. Recording resolutions are 3840 x 2160, 2592 x 1944, 2048 x 1536, 1920 x 1080, 1280 x 1024, etc. NAV1036 supports audio recording, circular recording, limited recording, video archiving, low bitrate recording, and remote network RAID.
Model
NAV1036 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Application Note | NAV HDD Support List | 2020-11-16 | 669KB | |
| Software | Navigator Control Center Version 2.0.0.210 | 2020-01-07 | 230,180KB | |
| Software | Navigator Software Version 2.0.0.210 | 2020-01-07 | 305,774KB | |
| Manual | Navigator Control Center and Navigator Client User Manual | 2018-11-27 | 5,215KB | |
| Manual | Navigator 2.0 User Manual | 2018-10-23 | 5,564KB | |
| Catalogue | Catalogue-NAV 2.0 Corporate | 2018-04-30 | 519KB | |
| Catalogue | Catalogue-NAV 2.0 Control Center | 2018-03-20 | 230KB | |
| Catalogue | Catalogue NAV1036 | 2018-02-27 | 505KB | |
| A&E | NAV A&E | 2016-10-18 | 51KB |
-
