Products

• ONVIF Profile S, LILIN IP cameras, PTZ domes, and DVRs/NVRs are supported
• Up to 36 channels 1080P/3M/4M/5M/8M network streaming, recording, and display.

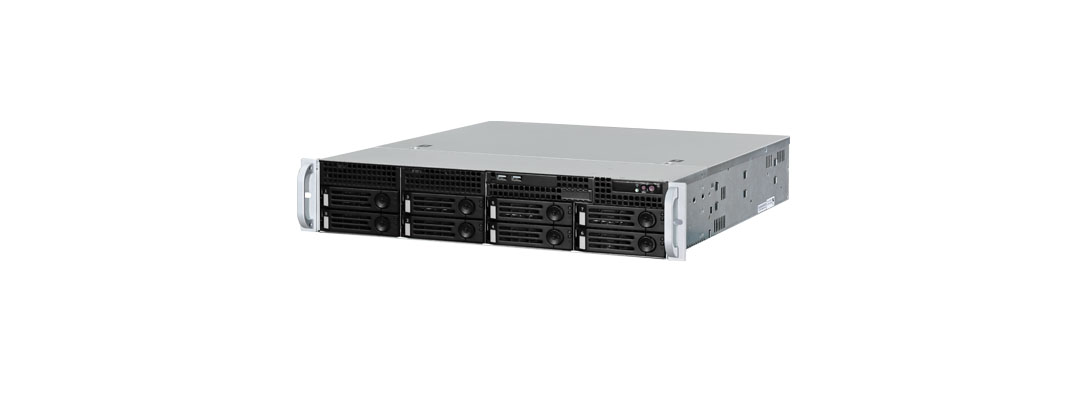

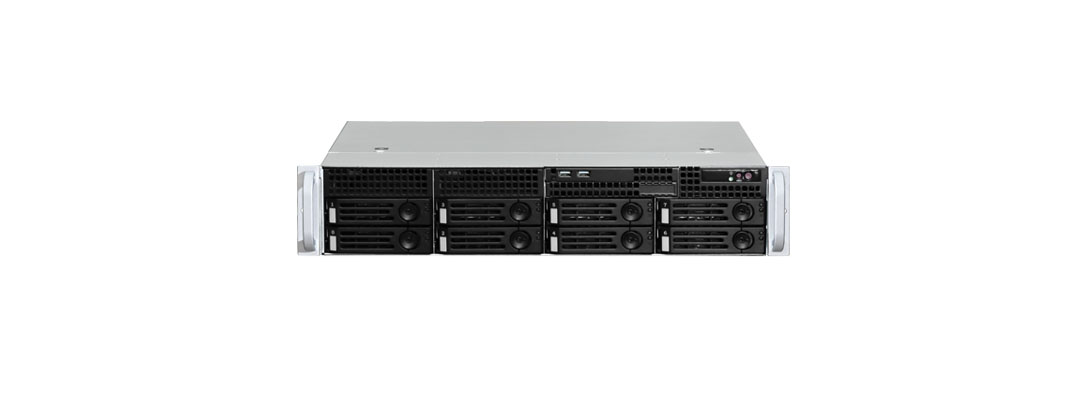

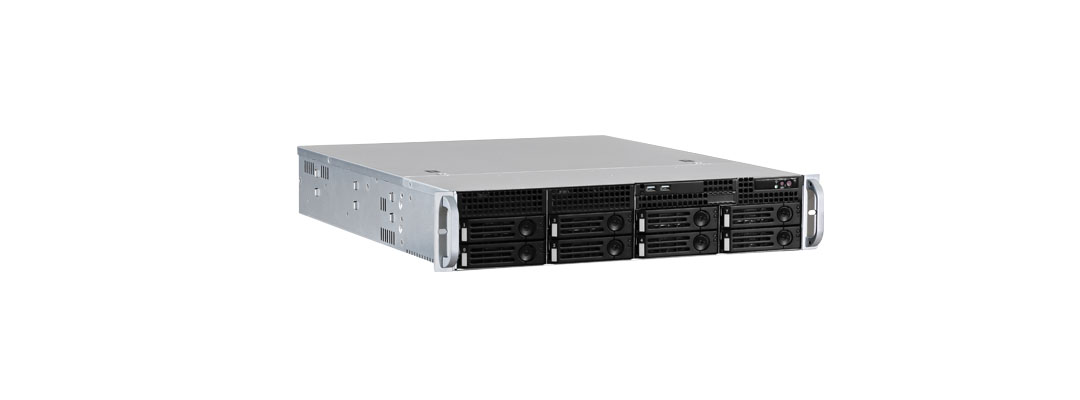

• 2U 19" chassis, built-in hardware RAID system, support up to 8 x 3.5" hot-swap HDDs
• Failover, video achieve, and Smart Search support.
• Dual streaming decoding mode supported
• Dual 4K monitors supported, up to 36 channels video display

• Support multi-channels playback for remote or local
• Support image archiving mechanisms

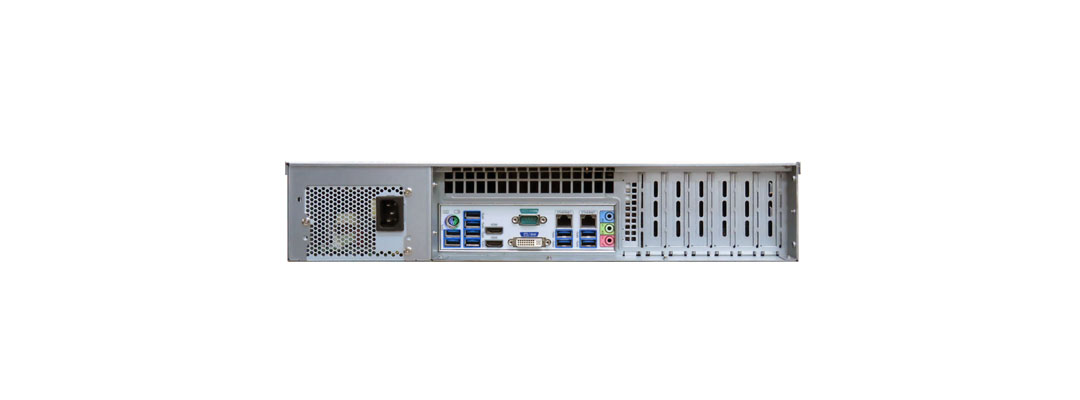

• Built-in dual port Gigabit Ethernet
• Provide up to 500Mbps upload network speed and 500Mbps download network speed

Discontinued date

• 2018.11.23

Alternative models

• NAV08036A / NAV08072A / NAV08108A

LILIN NAV08036 36 Channel Recorder supports LILIN IP cameras, PTZ dome IP cameras, and DVRs/NVRs. The recorder features up to 36 channels 1080P/3M/4M/5M/8M network streaming, recording, and display. It is built-in dual port Gigabit Ethernet, and dual monitors supported. It also supports multi-channels playback for remote or local. NAV08036 is capable of supporting multi-camera installations where LILIN cameras are installed, and NAV delivers a solid surveillance platform offering all the basic features, as well as some of the more advanced ones that a basic security system requires.

ePTZ feature and ePOS integration are also provided for free of charge. The maximum video speed can perform 3,840 X 2,160 at 30 frames per second. It supports up to 2 monitors. Keyboard is controllable via RS-485 for PTZ, ePTZ, and ROI region of interest features. Two-way audio and recording are available.
