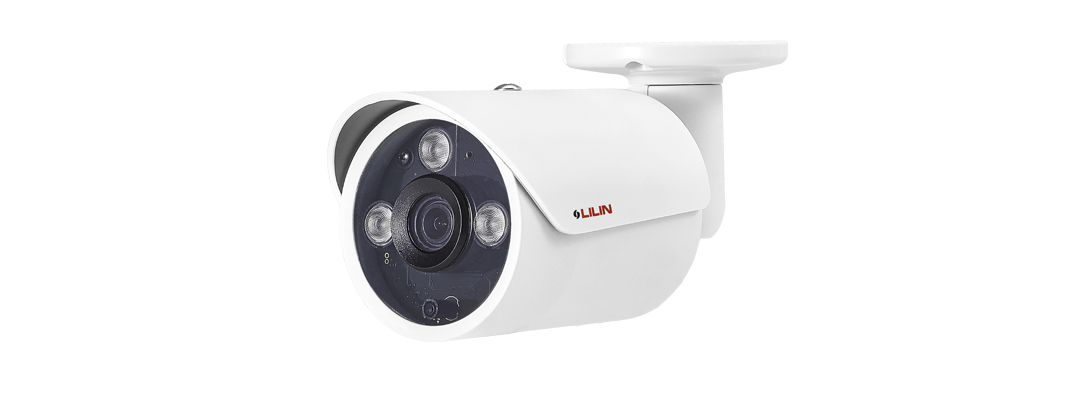

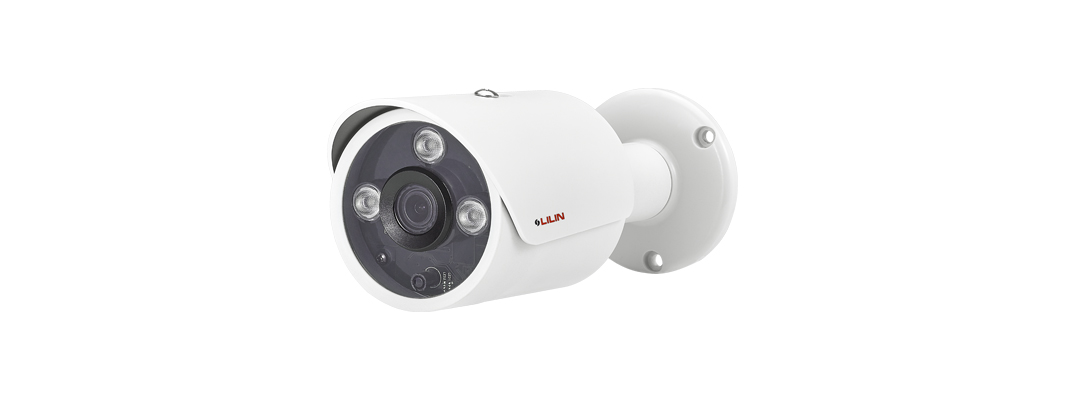

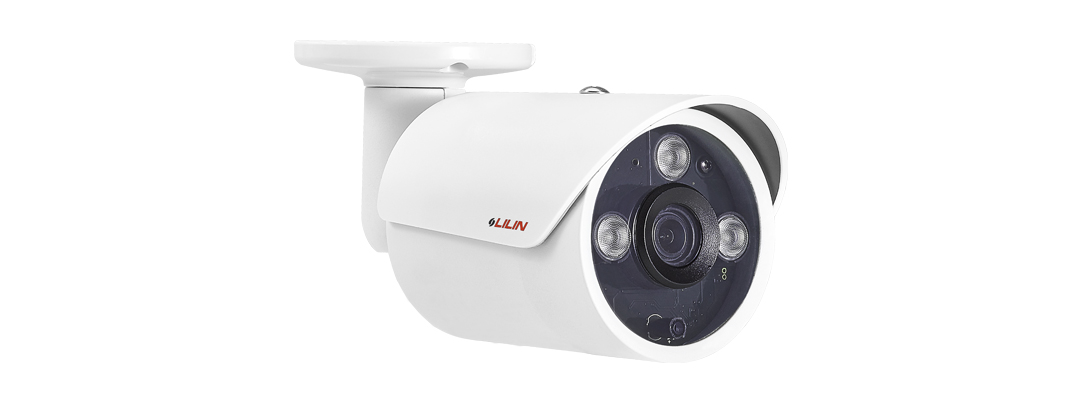

4MP Day & Night Fixed IR Vandal Resistant IP Bullet Camera
Model：MR8342
- Full HD 4 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- HDR function up to 100dB
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
- IP66 rain and dust resistant
As with all M series cameras, the MR8342 Outdoor HD 30M-Range IR Fixed Lens IP Camera features 4MP resolution at 20 frames per second, built-in Sense up+ technology to deliver stunning video in low-light conditions, and intelligent video surveillance (IVS) functions. Utilizing intelligent image signal processing, HDR, AGC control, and 3D Noise Reduction, the combination successfully delivers the ultimate low-light image without motion blur. The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operations under various demanding weather conditions. The support of PoE, privacy mask, and white balance, as well as the minimum illumination of 0.2 Lux at F2.0 will satisfy multiple applications.
Model
MR8342
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation Guide MR8342 | 2020-10-15 | 2,205KB | |
| Firmware | Firmware Version : 5.2.92.9220 , For Model： MR8342, MR8442X, MD2242 | 2020-09-24 | 20,876KB | |
| Manual | M and ZMR Series User Manual | 2020-05-05 | 3,348KB | |
| Catalogue | Catalogue MR8342 | 2020-02-13 | 1,617KB | |
| A&E | A&E MR8342 | 2019-05-02 | 560KB | |
| Application Note | How to upgrade IP camera to P2P connection for LILIN camera | 2019-02-26 | 566KB |
-
